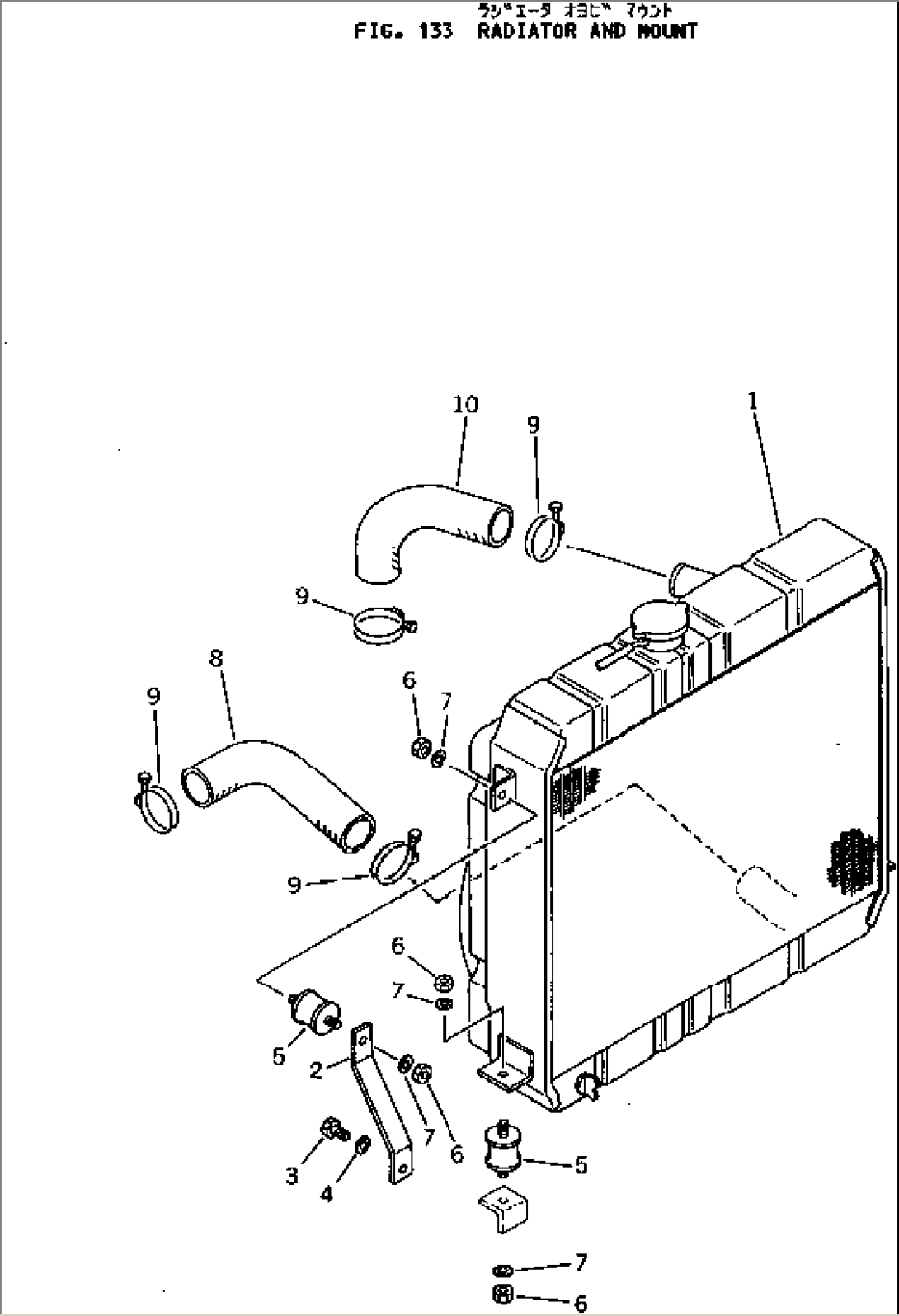

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-20-14100 | RADIATOR ASS'Y | 1501- | |
| 258-20-24110 | CAP | 1501- | ||
| 2 | 258-20-14320 | BRACKET | 1501- | |
| 3 | 01010-30820 | BOLT | 1501- | |
| 4 | 01602-00825 | WASHER,SPRING | 1501- | |
| 5 | 20R-03-11190 | CUSHION | 1501- | |
| 6 | 01580-00806 | NUT | 1501- | |
| 7 | 01602-00825 | WASHER,SPRING | 1501- | |
| 8 | 258-20-14330 | HOSE,LOWER | 1501- | |
| 9 | 258-20-14350 | BAND | 1501- | |
| 10 | 258-20-14340 | HOSE,UPPER | 1501- |
