| Item | Part No. | Part Name | Qty | Serial No. |

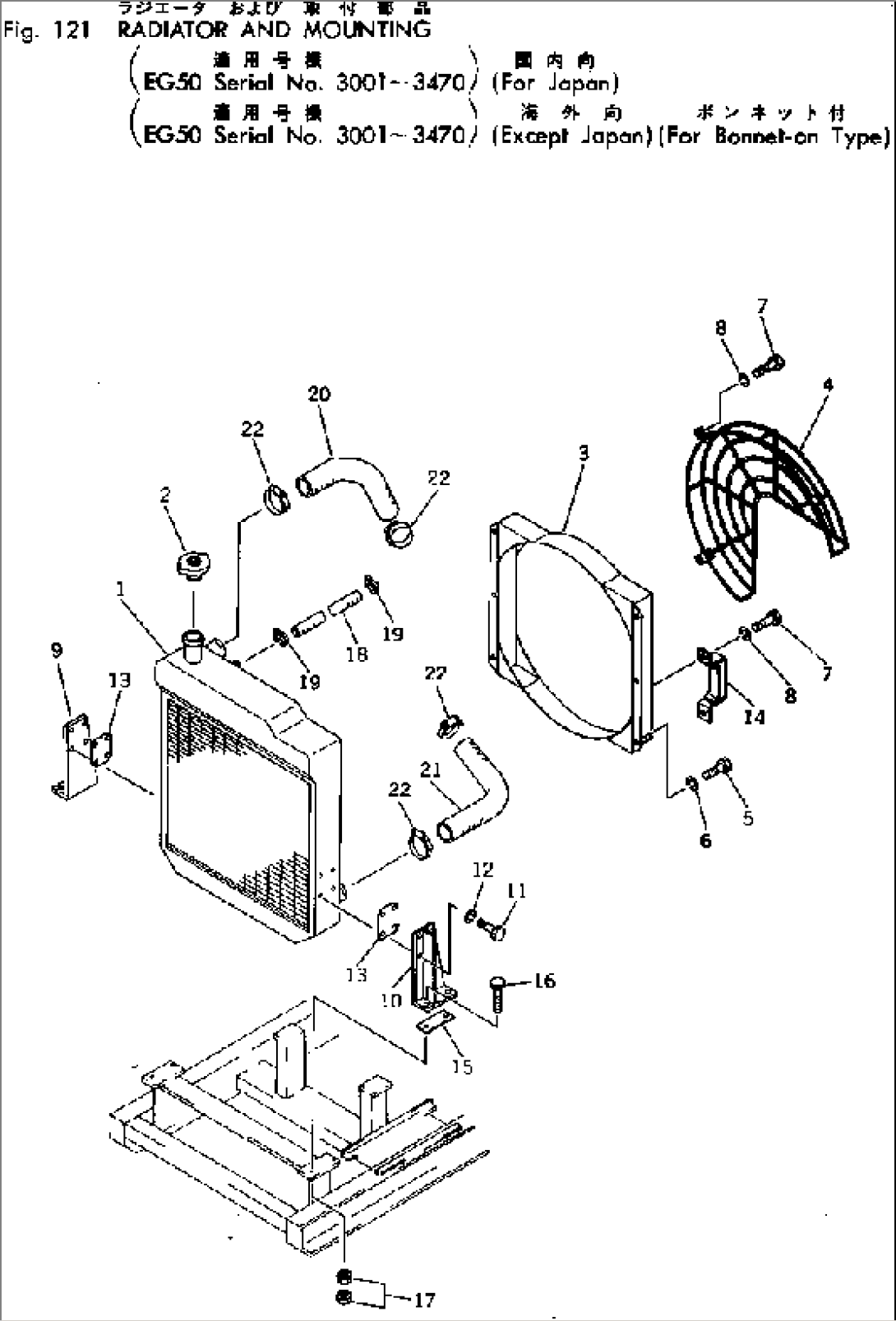

| 6992-62-1111 | RADIATOR ASS'Y | 3001-3470 | ||
| 1 | 6992-62-1220 | RADIATOR | 3001-3470 | |
| 2 | 6993-61-9470 | CAP | 3001-@ | |
| 3 | 6992-62-1240 | SHROUD,FAN | 3001-@ | |
| 4 | 6992-62-1260 | GUARD,FAN | 3001-@ | |
| 5 | 01010-50616 | BOLT | 3001-@ | |
| 6 | 01602-20619 | WASHER,SPRING | 3001-@ | |
| 7 | 01010-50820 | BOLT | 3001-@ | |
| 8 | 01602-20825 | WASHER,SPRING | 3001-@ | |
| 9 | 6992-62-1280 | BRACKET,L.H. | 3001-@ | |
| 10 | 6992-62-1270 | BRACKET,R.H. | 3001-@ | |
| 11 | 01010-51020 | BOLT | 3001-@ | |
| 12 | 01602-21030 | WASHER,SPRING | 3001-@ | |
| 13 | 6993-61-9140 | SHIM | 3001-@ | |
| 14 | 6992-62-1360 | PROTECTOR | 3001-3470 | |
| 15 | 6993-61-9170 | SHEET | 3001-@ | |
| 16 | 01010-31240 | BOLT | 3001-@ | |
| 17 | 01580-01210 | NUT | 3001-@ | |
| 18 | 6128-61-9530 | HOSE | 3001-3470 | |
| 19 | 07281-00197 | CLAMP,HOSE | 3001-3470 | |
| 20 | 6992-62-1140 | HOSE | 3001-3470 | |
| 21 | 6992-62-1150 | HOSE | 3001-3470 | |
| 22 | 07281-00709 | CLAMP | 3001-3470 |
