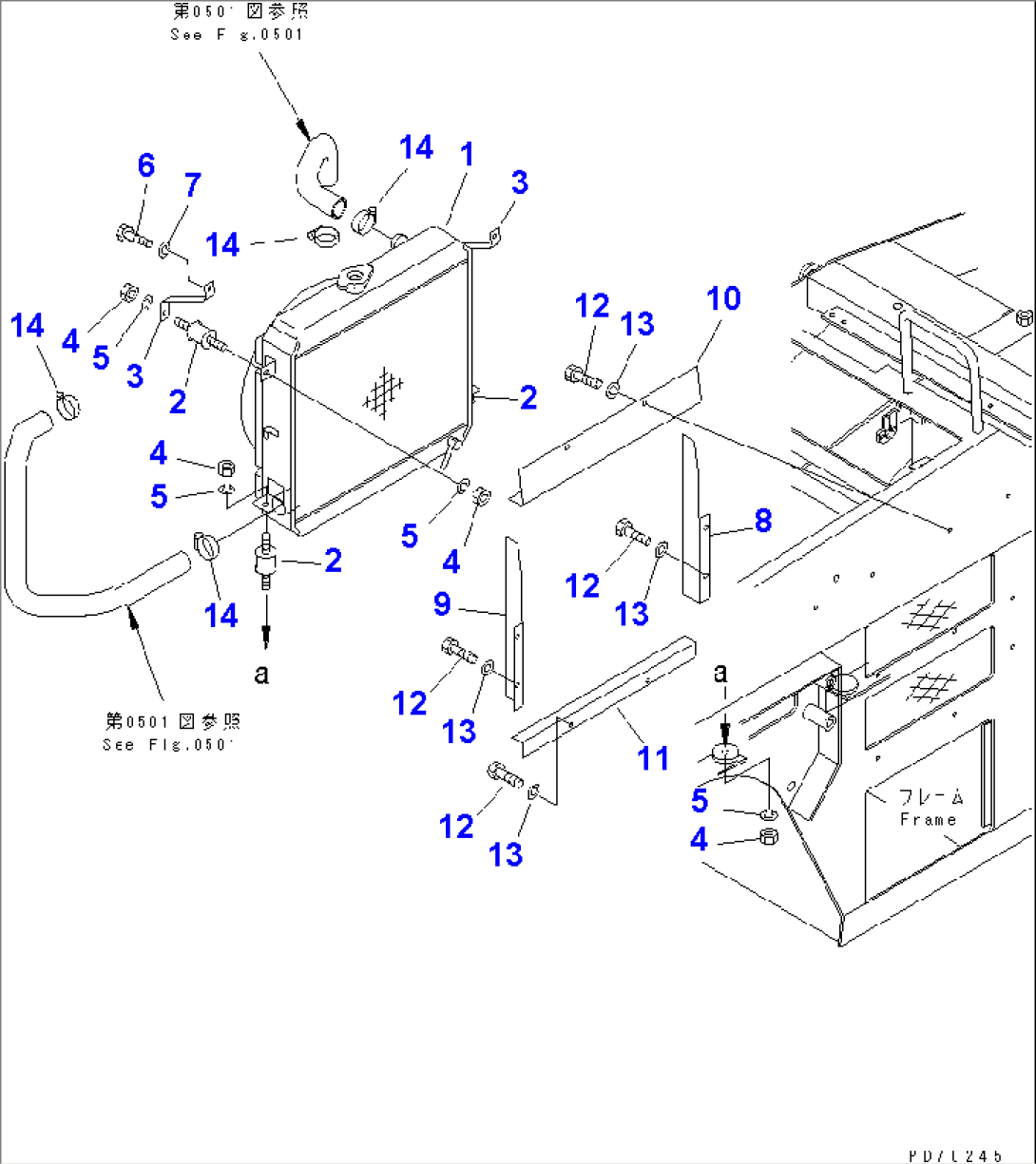

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 266-20-64100 | RADIATOR | 7001- | |
| 2 | 257-20-14310 | CUSHION | 7001- | |
| 3 | 266-20-74320 | BRACKET | 7001- | |
| 4 | 01580-10806 | NUT | 7001- | |
| 5 | 01602-20825 | WASHER,SPRING | 7001- | |
| 6 | 01010-50816 | BOLT | 7001- | |
| 7 | 01602-20825 | WASHER,SPRING | 7001- | |
| 8 | 266-20-74510 | SHROUD | 7001- | |
| 9 | 266-20-74520 | SHROUD | 7001- | |
| 10 | 266-20-74530 | SHROUD | 7001- | |
| 11 | 257-20-34540 | SHROUD | 7001- | |
| 12 | 01010-50812 | BOLT | 7001- | |
| 13 | 01602-20825 | WASHER,SPRING | 7001- | |
| 14 | 07280-04126 | CLAMP | 7001- |
