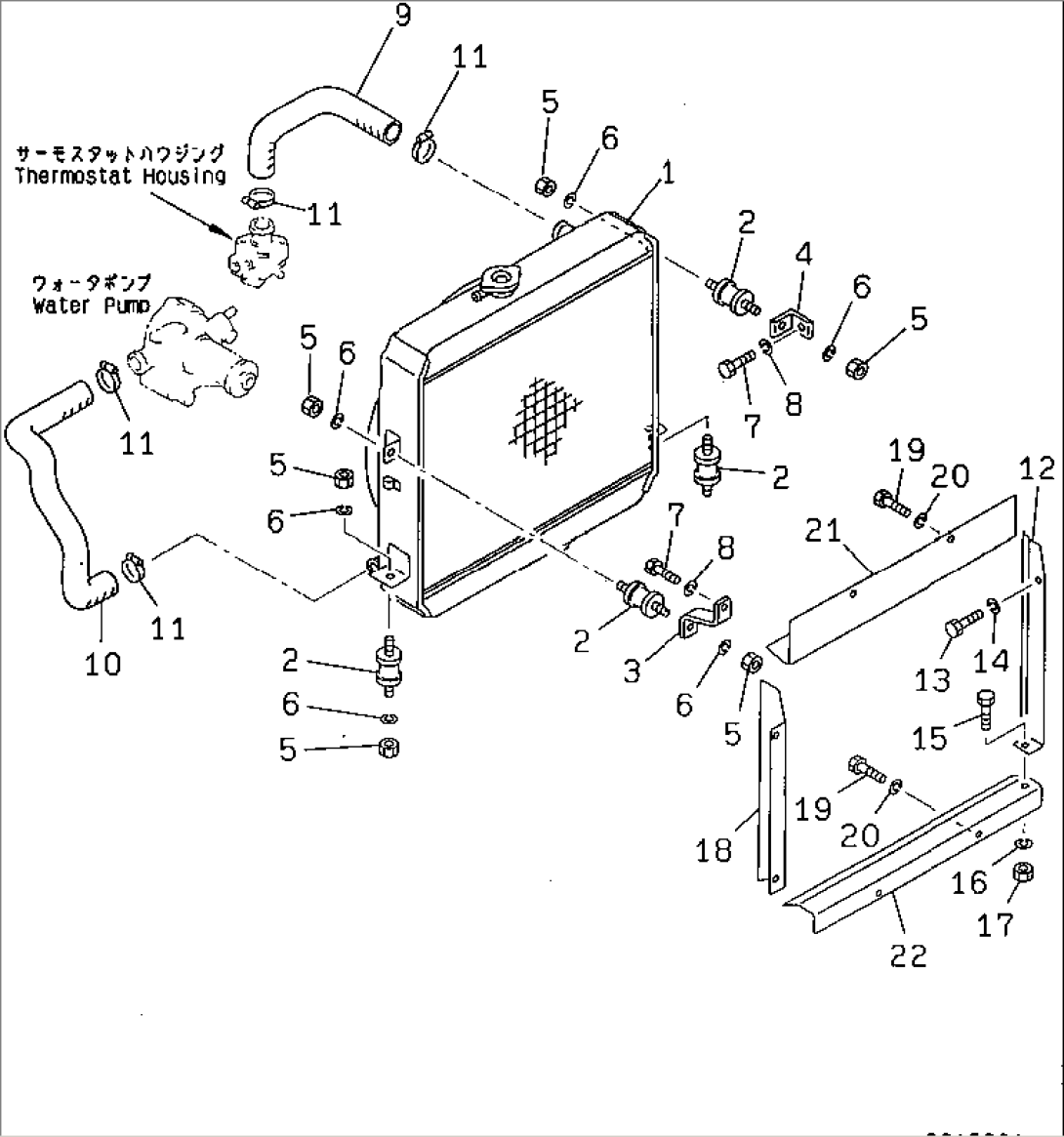

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 258-20-24100 | RADIATOR ASS'Y | 2001-@ | |
| 258-20-24110 | CAP | 2001-@ | ||
| 2 | 257-20-14310 | CUSHION | 2001-@ | |
| 3 | 258-20-24321 | BRACKET | 2046-2100 | |
| 4 | 258-20-24330 | BRACKET | 2001-@ | |
| 5 | 01580-30806 | NUT | 2001-@ | |
| 6 | 01602-20825 | WASHER,SPRING | 2001-@ | |
| 7 | 01010-30816 | BOLT | 2001-2100 | |
| 8 | 01602-20825 | WASHER,SPRING | 2001-@ | |
| 9 | YM121400-49011 | HOSE | 2001-@ | |
| 10 | YM171301-49020 | HOSE | 2001-@ | |
| 11 | 07280-03826 | CLAMP | 2001-@ | |
| 12 | 258-20-24511 | SHROUD | 2046-2100 | |
| 13 | 01010-30812 | BOLT | 2046-2100 | |
| 14 | 01602-20825 | WASHER,SPRING | 2046-2100 | |
| 15 | 01010-30816 | BOLT | 2046-2100 | |
| 16 | 01602-20825 | WASHER,SPRING | 2046-2100 | |
| 17 | 01580-10806 | NUT | 2046-2100 | |
| 18 | 258-20-24521 | SHROUD | 2046-2100 | |
| 19 | 01010-30812 | BOLT | 2046-@ | |
| 20 | 01602-20825 | WASHER,SPRING | 2046-@ | |
| 21 | 258-20-24531 | SHROUD | 2046-2100 | |
| 22 | 258-20-24541 | SHROUD | 2046-2100 |
