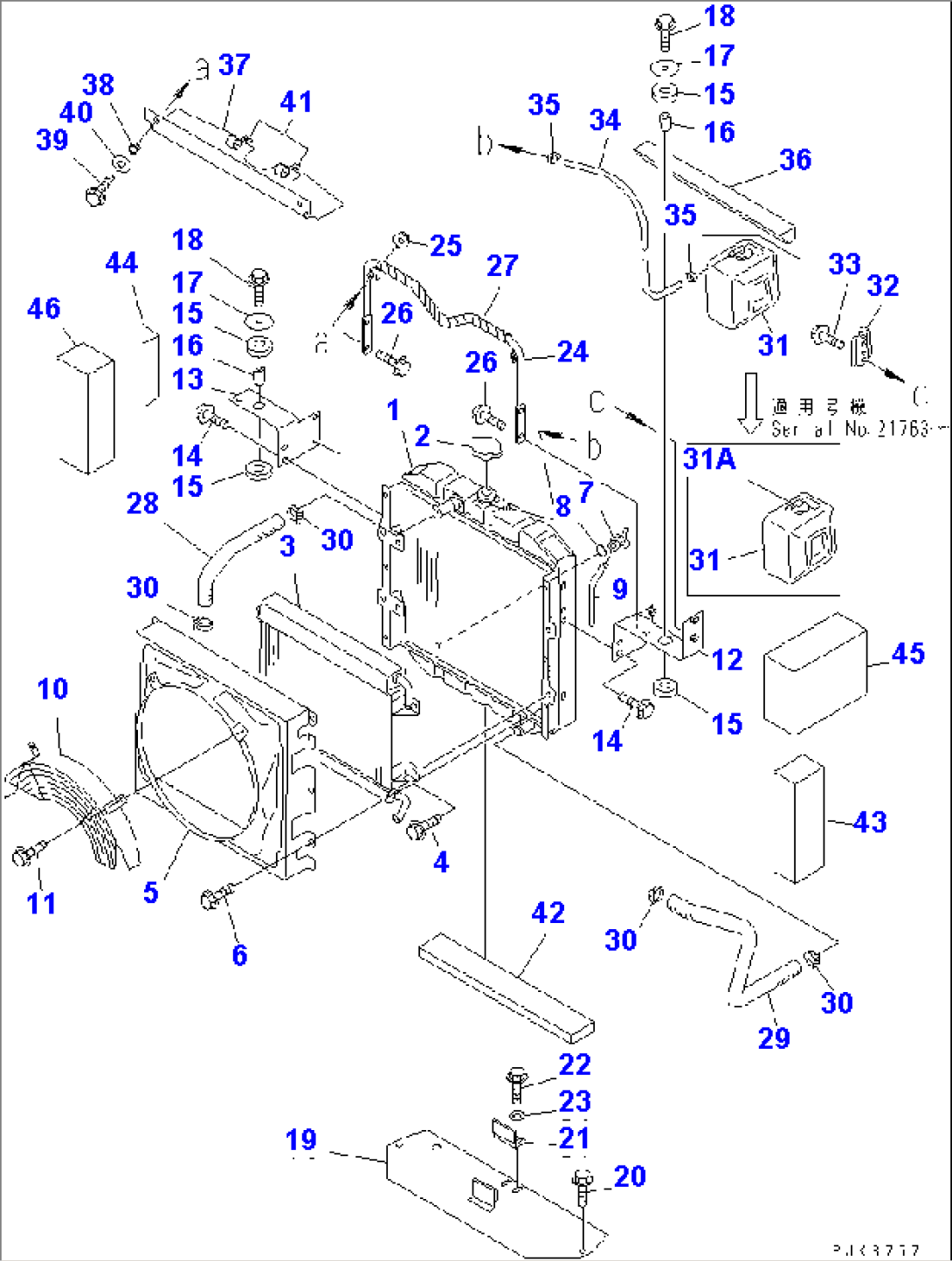

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 363-03-31110 | RADIATOR ASS'Y | 21450- | |
| 2 | 363-03-31330 | CAP | 21450- | |
| 3 | 363-03-31310 | OIL COOLER ASS'Y | 21450- | |
| 4 | 363-03-31350 | BOLT | 21450- | |
| 5 | 363-03-31120 | SHROUD | 21450- | |
| 6 | 363-03-31340 | BOLT | 21450- | |
| 7 | 363-03-31360 | VALVE | 21450- | |
| 8 | 363-03-31370 | O-RING | 21450- | |
| 9 | 363-03-31320 | HOSE | 21450- | |
| 10 | 42A-03-21412 | NET | 21450- | |
| 11 | 01435-00812 | BOLT | 21450- | |
| 12 | 363-03-31410 | BRACKET,L.H. | 21450- | |
| 13 | 363-03-31420 | BRACKET,R.H. | 21450- | |
| 14 | 01435-00816 | BOLT | 21450- | |
| 15 | 416-03-11221 | CUSHION | 21450- | |
| 16 | 363-03-31160 | TUBE | 21450- | |
| 17 | 416-03-11210 | WASHER | 21450- | |
| 18 | 01435-01055 | BOLT | 21450- | |
| 19 | 363-03-31171 | COVER | 21450- | |
| 20 | 01435-01016 | BOLT | 21450- | |
| 21 | 363-03-31190 | BRACKET | 21450- | |
| 22 | 01435-01016 | BOLT | 21450- | |
| 23 | 01643-51032 | WASHER | 21450- | |
| 24 | 363-03-32210 | BAR | 21450- | |
| 25 | 01584-01008 | NUT | 21450- | |
| 26 | 01435-00816 | BOLT | 21450- | |
| 27 | 363-18-32130 | PROTECTOR | 21450- | |
| 28 | 363-03-32110 | HOSE | 21450- | |
| 29 | 363-03-32120 | HOSE | 21450- | |
| 30 | 07289-00035 | CLAMP | 21450- | |
| 31 | 42A-03-11121 | TANK | 21763- | |
| 31 | 42A-03-11120 | TANK | 21450-21762 | |
| 31A | 42A-03-11220 | CAP | 21763- | |
| 32 | 42A-03-11130 | BRACKET | 21450- | |
| 33 | 01435-00612 | BOLT | 21450- | |
| 34 | 363-03-33110 | HOSE | 21450- | |
| 35 | 07285-00115 | CLIP | 21450- | |
| 36 | 363-03-31270 | SHEET | 21450- | |
| 37 | 363-03-31240 | PLATE | 21450- | |
| 38 | 424-54-14310 | SPACER | 21450- | |
| 39 | 01435-01035 | BOLT | 21450- | |
| 40 | 421-62-14740 | WASHER | 21450- | |
| 41 | 08036-10810 | CLIP | 21450- | |
| 42 | 363-03-31440 | SHEET | 21450- | |
| 43 | 42A-03-21322 | SHEET | 21450- | |
| 44 | 363-03-31460 | SHEET | 21450- | |
| 45 | 363-03-31431 | SHEET | 21450- | |
| 46 | 363-03-31450 | SHEET | 21450- |
