| Item | Part No. | Part Name | Qty | Serial No. |

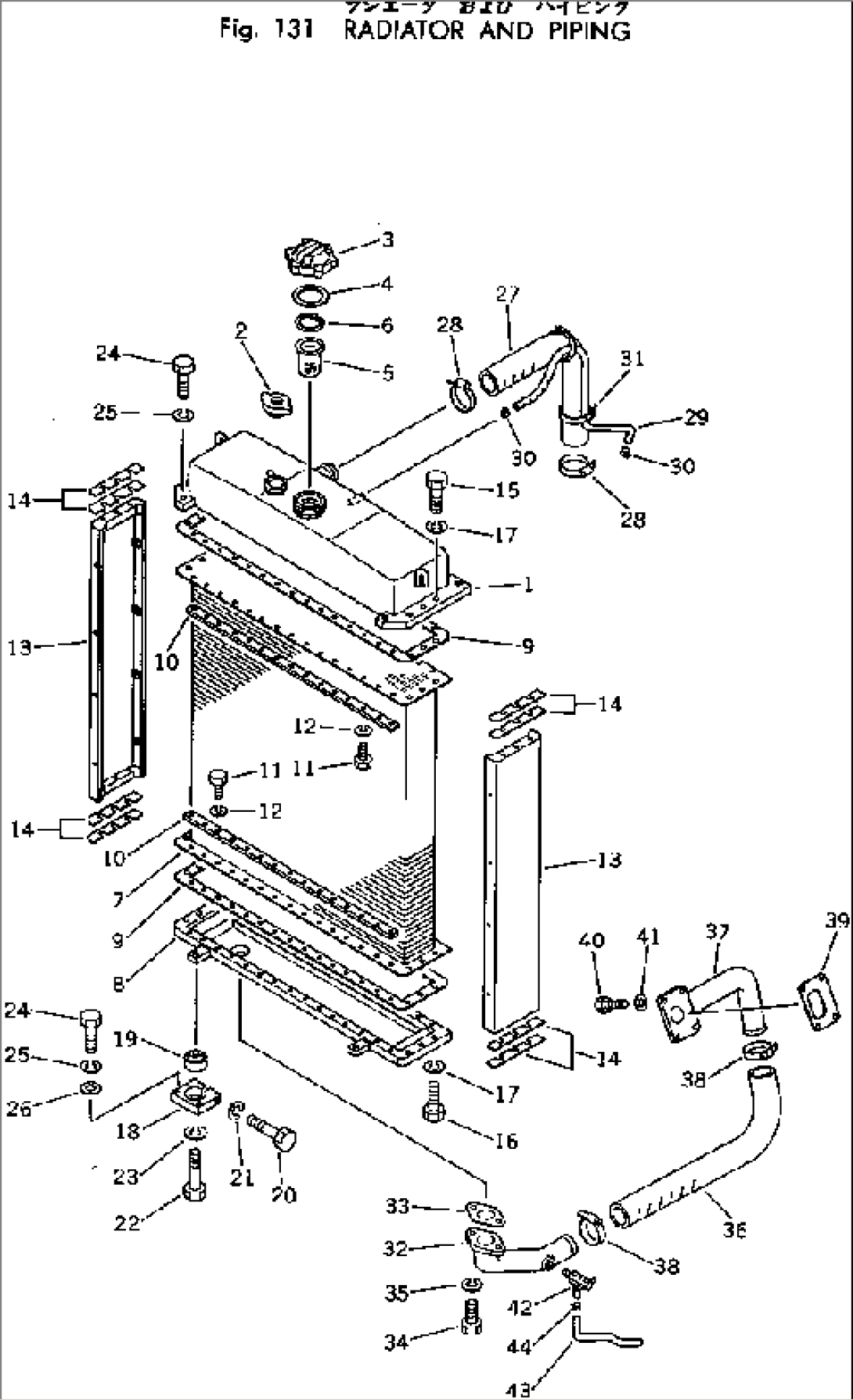

| 130-03-00400 | RADIATOR ASS'Y | 80001- | ||
| 1 | 130-03-71110 | TANK,UPPER | 80001- | |
| 2 | 125-03-21210 | CAP | 80001- | |
| 3 | 07053-20000 | CAP | 80001- | |
| 4 | 07053-00002 | GASKET | 80001- | |
| 5 | 07056-00048 | STRAINER | 80001- | |
| 6 | 07057-03271 | RING,SNAP | 80001- | |
| 7 | 130-03-71120 | CORE | 80001- | |
| 8 | 130-03-71130 | TANK,LOWER | 80001- | |
| 9 | 130-03-71140 | GASKET | 80001- | |
| 10 | 134-03-21150 | PLATE | 80001- | |
| 11 | 01010-51020 | BOLT | 80001- | |
| 12 | 01602-21030 | WASHER,SPRING | 80001- | |
| 13 | 130-03-71150 | SUPPORT | 80001- | |
| 14 | 130-03-05010 | SHIM KIT | 80001- | |
| 14 | \6\ | SHIM, 0.2MM | 80001- | |
| 14 | \6\ | SHIM, 0.5MM | 80001- | |
| 15 | 01010-51245 | BOLT | 80001- | |
| 16 | 01010-51240 | BOLT | 80001- | |
| 17 | 01602-21236 | WASHER,SPRING | 80001- | |
| 18 | 134-03-21210 | BRACKET | 80001- | |
| 19 | 135-03-12110 | DAMPER | 80001- | |
| 20 | 01010-51290 | BOLT | 80001- | |
| 21 | 01602-21236 | WASHER,SPRING | 80001- | |
| 22 | 01010-51460 | BOLT | 80001- | |
| 23 | 01602-21442 | WASHER,SPRING | 80001- | |
| 24 | 01010-51245 | BOLT | 80001- | |
| 25 | 01602-21236 | WASHER,SPRING | 80001- | |
| 26 | 01643-31232 | WASHER | 80001- | |
| 27 | 130-03-71210 | HOSE,UPPER | 80001- | |
| 28 | 07281-00709 | CLAMP | 80001- | |
| 29 | 07260-20990 | HOSE | 80001- | |
| 30 | 07281-00197 | CLAMP | 80001- | |
| 31 | 08034-00834 | BAND | 80001- | |
| 32 | 130-03-71260 | TUBE | 80001- | |
| 33 | 131-03-41320 | GASKET | 80001- | |
| 34 | 01010-51230 | BOLT | 80001- | |
| 35 | 01602-21236 | WASHER,SPRING | 80001- | |
| 36 | 130-03-71220 | HOSE | 80001- | |
| 37 | 130-03-71180 | TUBE | 80001- | |
| 38 | 07281-00709 | CLAMP | 80001- | |
| 39 | 130-03-71190 | GASKET | 80001- | |
| 40 | 01010-51030 | BOLT | 80001- | |
| 41 | 01602-21030 | WASHER,SPRING | 80001- | |
| 42 | 07730-30004 | VALVE | 80001- | |
| 43 | 07270-01530 | TUBE,VINYL | 80001- | |
| 44 | 07280-01920 | CLAMP | 80001- |
