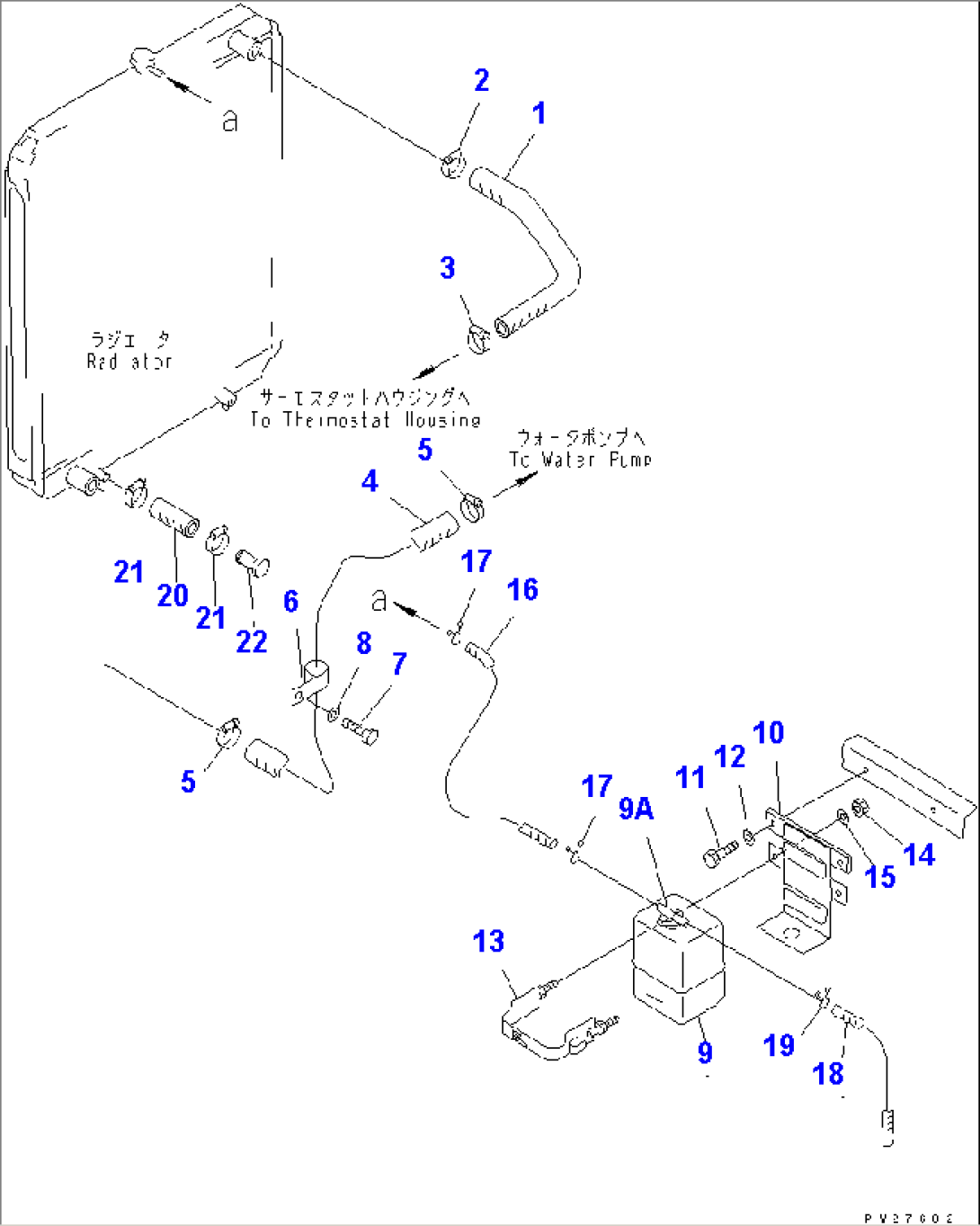

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 206-03-51161 | HOSE | 1002- | |
| 2 | 208-09-11110 | CLAMP | 1002- | |
| 3 | 207-09-11110 | CLAMP | 1002- | |
| 4 | 206-03-51171 | HOSE | 1002- | |
| 5 | 208-09-11110 | CLAMP | 1002- | |
| 6 | 20Y-03-11530 | CLIP | 1002- | |
| 7 | 01010-51230 | BOLT | 1002- | |
| 8 | 01643-31232 | WASHER | 1002- | |
| 9 | 20Y-06-15240 | TANK ASS'Y | 1002- | |
| 9 | \6\ | TANK | 1002- | |
| 9A | 205-03-71532 | CAP | 1002- | |
| 9A | 205-03-71540 | PACKING | 1002- | |
| 10 | 20Y-03-11261 | BRACKET | 1002- | |
| 11 | 01010-51230 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- | |
| 13 | 20Y-03-11361 | BAND | 1002- | |
| 14 | 01580-10806 | NUT | 1002- | |
| 15 | 01643-30823 | WASHER | 1002- | |
| 16 | 20Y-03-11270 | HOSE | 1002- | |
| 17 | 206-03-43340 | CLIP | 1002- | |
| 18 | 206-03-43331 | HOSE | 1002- | |
| 19 | 206-03-43340 | CLIP | 1002- | |
| 20 | 195-979-4830 | HOSE | 1002- | |
| 21 | 07281-00259 | CLAMP | 1002- | |
| 22 | 205-03-62720 | PLUG | 1002- |
