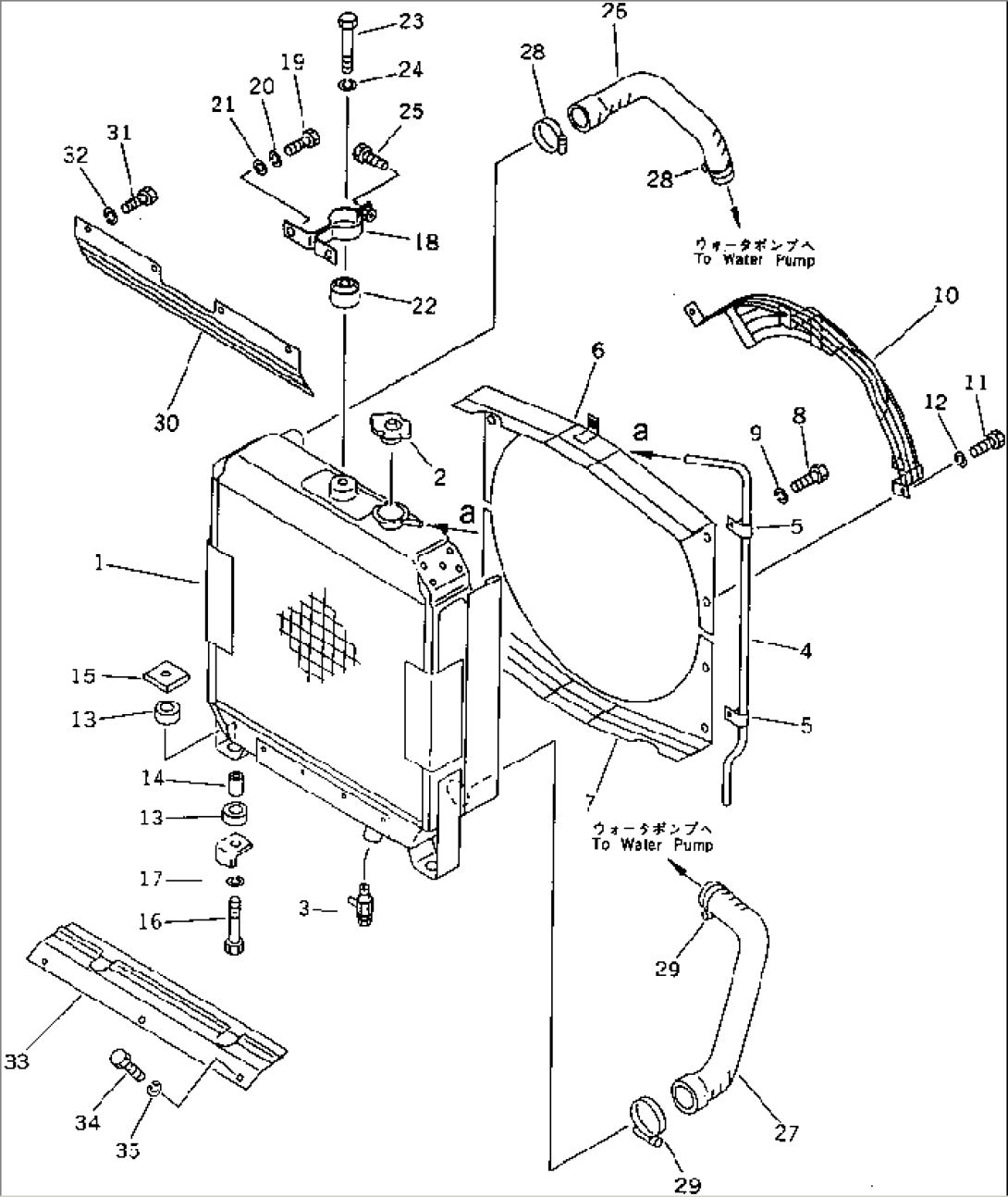

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-03-41310 | CORE ASS'Y | 40001- | |
| 2 | 113-03-21240 | CAP | 40001- | |
| 3 | 07730-10003 | VALVE | 40001- | |
| 4 | 113-03-21140 | TUBE | 40001- | |
| 5 | 281-03-12620 | CLAMP | 40001- | |
| 6 | 113-03-49130 | SHROUD,UPPER | 40001- | |
| 7 | 113-03-41320 | SHROUD,LOWER | 40001- | |
| 8 | 01010-51025 | BOLT | 40001- | |
| 9 | 01602-21030 | WASHER,SPRING | 40001- | |
| 10 | 113-03-41451 | NET,WIRE | 40001- | |
| 11 | 01010-51025 | BOLT | 40001- | |
| 12 | 01602-21030 | WASHER,SPRING | 40001- | |
| 13 | 113-03-21160 | SEAT | 40001- | |
| 14 | 113-03-21170 | SPACER | 40001- | |
| 15 | 113-03-21180 | PLATE | 40001- | |
| 16 | 01010-51060 | BOLT | 40001- | |
| 17 | 01602-21030 | WASHER,SPRING | 40001- | |
| 18 | 113-03-41191 | BRACKET,(D31S) | 40285- | |
| 18 | \0\113-03-41190 | BRACKET,(D31S) | 40001-40284 | |
| 18 | 113-03-41191 | BRACKET,(D31Q) | 40298- | |
| 18 | \0\113-03-41190 | BRACKET,(D31Q) | 40001-40297 | |
| 19 | 01010-51025 | BOLT | 40001- | |
| 20 | 01602-21030 | WASHER,SPRING | 40001- | |
| 21 | 01643-31032 | WASHER,(D31S) | 40001-40284 | |
| 21 | 01643-31032 | WASHER,(D31Q) | 40001-40297 | |
| 22 | 135-03-12110 | DAMPER | 40001- | |
| 23 | 01010-51460 | BOLT | 40001- | |
| 24 | 01602-21442 | WASHER,SPRING | 40001- | |
| 25 | 01010-51030 | BOLT | 40001- | |
| 26 | 113-03-41140 | HOSE | 40001- | |
| 27 | 113-03-41150 | HOSE | 40001- | |
| 28 | 207-09-11110 | CLAMP | 40189- | |
| 28 | \0\07281-00549 | CLAMP | 40001-40188 | |
| 29 | 208-09-11110 | CLAMP | 40426- | |
| 29 | \0\208-09-11120 | CLAMP | 40189-40425 | |
| 29 | \0\07281-00709 | CLAMP | 40001-40188 | |
| 30 | 113-03-41180 | BAFFLE | 40001- | |
| 31 | 01010-51025 | BOLT | 40001- | |
| 32 | 01602-21030 | WASHER,SPRING | 40001- | |
| 33 | 113-03-41170 | BAFFLE | 40001- | |
| 34 | 01010-51025 | BOLT | 40001- | |
| 35 | 01602-21030 | WASHER,SPRING | 40001- |
