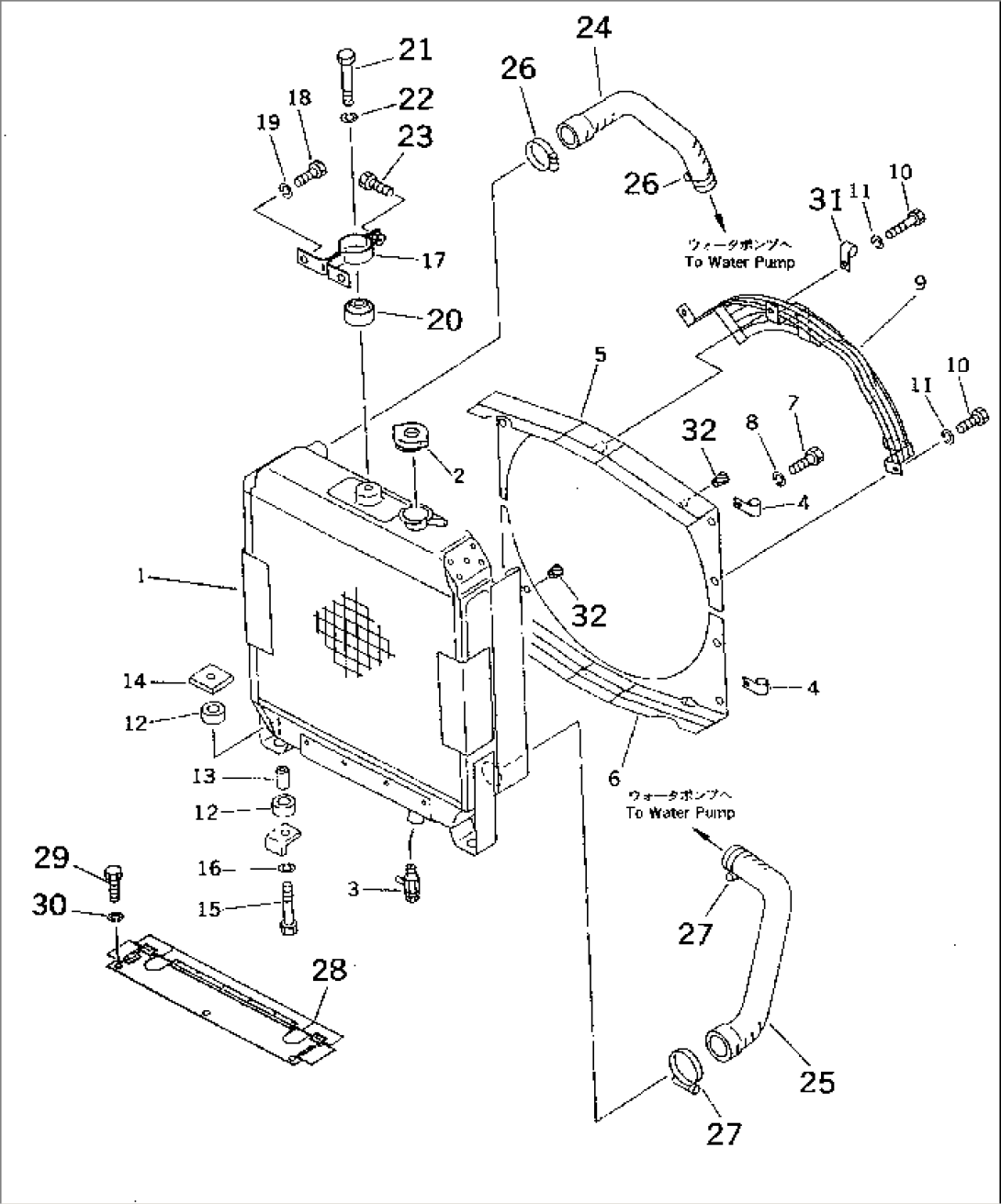

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-03-41710 | CORE ASS'Y | 42001-42722 | |
| 2 | 114-03-48160 | CAP | 42001-42722 | |
| 3 | 07730-10003 | VALVE | 42001-42722 | |
| 4 | 281-03-12620 | CLAMP | 42001-42722 | |
| 5 | 113-03-41720 | SHROUD,UPPER | 42001-42722 | |
| 6 | 114-03-48341 | SHROUD,LOWER | 42001-42722 | |
| 7 | 01010-51025 | BOLT | 42001-42722 | |
| 8 | 01602-21030 | WASHER,SPRING | 42001-42722 | |
| 9 | 113-03-41451 | NET,WIRE | 42001-42722 | |
| 10 | 01010-51025 | BOLT | 42001-42722 | |
| 11 | 01602-21030 | WASHER,SPRING | 42001-42722 | |
| 12 | 113-03-21160 | SEAT | 42001-42722 | |
| 13 | 113-03-21170 | SPACER | 42001-42722 | |
| 14 | 113-03-21180 | PLATE | 42001-42722 | |
| 15 | 01010-51060 | BOLT | 42001-42722 | |
| 16 | 01602-21030 | WASHER,SPRING | 42001-42722 | |
| 17 | 113-03-41191 | BRACKET | 42001-42722 | |
| 18 | 01010-51025 | BOLT | 42001-42722 | |
| 19 | 01602-21030 | WASHER,SPRING | 42001-42722 | |
| 20 | 135-03-12110 | DAMPER | 42001-42722 | |
| 21 | 01010-51460 | BOLT | 42001-42722 | |
| 22 | 01602-21442 | WASHER,SPRING | 42001-42722 | |
| 23 | 01010-51030 | BOLT | 42001-42722 | |
| 24 | 114-03-41140 | HOSE,INLET | 42001-42722 | |
| 25 | 113-03-41150 | HOSE,OUTLET | 42001-42722 | |
| 26 | 207-09-11110 | CLAMP | 42001-42722 | |
| 27 | 208-09-11110 | CLAMP | 42001-42722 | |
| 28 | 114-03-41171 | BAFFLE | 42001-42722 | |
| 29 | 01010-51025 | BOLT | 42001-42722 | |
| 30 | 01602-21030 | WASHER,SPRING | 42001-42722 | |
| 31 | 08036-91214 | CLIP | 42001-42722 | |
| 32 | 07049-01012 | PLUG | 42001-42722 |
