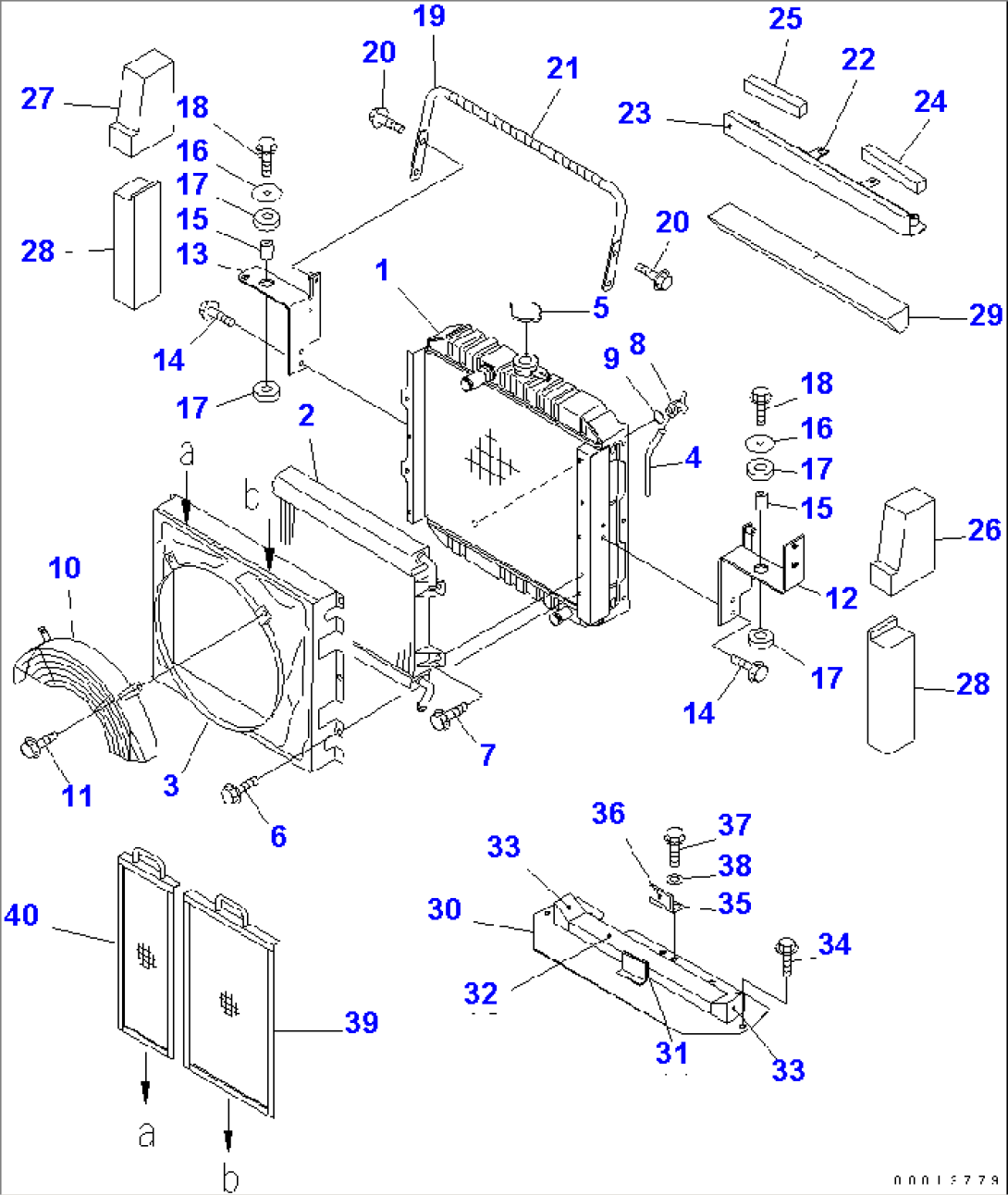

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-03-21111 | RADIATOR | 19001- | |
| 2 | 363-03-31310 | OIL COOLER ASS'Y | 19001- | |
| 3 | 363-J89-3510 | SHROUD | 19001- | |
| 4 | 363-03-31320 | HOSE | 19001- | |
| 5 | 363-03-31330 | CAP | 19001- | |
| 6 | 363-03-31340 | BOLT | 19001- | |
| 7 | 363-03-31350 | BOLT | 19001- | |
| 8 | 363-03-31360 | VALVE | 19001- | |
| 9 | 363-03-31370 | O-RING | 19001- | |
| 10 | 42A-03-21412 | NET | 19001- | |
| 11 | 01435-00812 | BOLT | 19001- | |
| 12 | 363-03-35410 | BRACKET,L.H. | 19001- | |
| 13 | 363-03-35420 | BRACKET,R.H. | 19001- | |
| 14 | 01435-00816 | BOLT | 19001- | |
| 15 | 363-03-31160 | TUBE | 19001- | |
| 16 | 416-03-11210 | WASHER | 19001- | |
| 17 | 416-03-11221 | CUSHION | 19001- | |
| 18 | 01435-01055 | BOLT | 19001- | |
| 19 | 363-03-35430 | BAR | 19001- | |
| 20 | 01435-00816 | BOLT | 19001- | |
| 21 | 363-18-32130 | PROTECTOR | 19001- | |
| 22 | 363-03-35210 | COVER | 19001- | |
| 23 | 363-03-35220 | SHEET | 19001- | |
| 24 | 363-03-35260 | SHEET | 19001- | |
| 25 | 363-03-35270 | SHEET | 19001- | |
| 26 | 363-03-35230 | SHEET | 19001- | |
| 27 | 363-03-35240 | SHEET | 19001- | |
| 28 | 363-03-35250 | SHEET | 19001- | |
| 29 | 363-03-31270 | SHEET | 19001- | |
| 30 | 363-03-35310 | COVER | 19001- | |
| 31 | 363-03-31180 | RUBBER | 19001- | |
| 32 | 363-03-35320 | SHEET | 19001- | |
| 33 | 363-03-35330 | SHEET | 19001- | |
| 34 | 01435-01016 | BOLT | 19001- | |
| 35 | 363-03-31190 | BRACKET | 19001- | |
| 36 | 363-03-31180 | RUBBER | 19001- | |
| 37 | 01435-01016 | BOLT | 19001- | |
| 38 | 01643-51032 | WASHER | 19001- | |
| 39 | 363-J89-3520 | NET,L.H. | 19001- | |
| 40 | 363-J89-3530 | NET,R.H. | 19001- |
