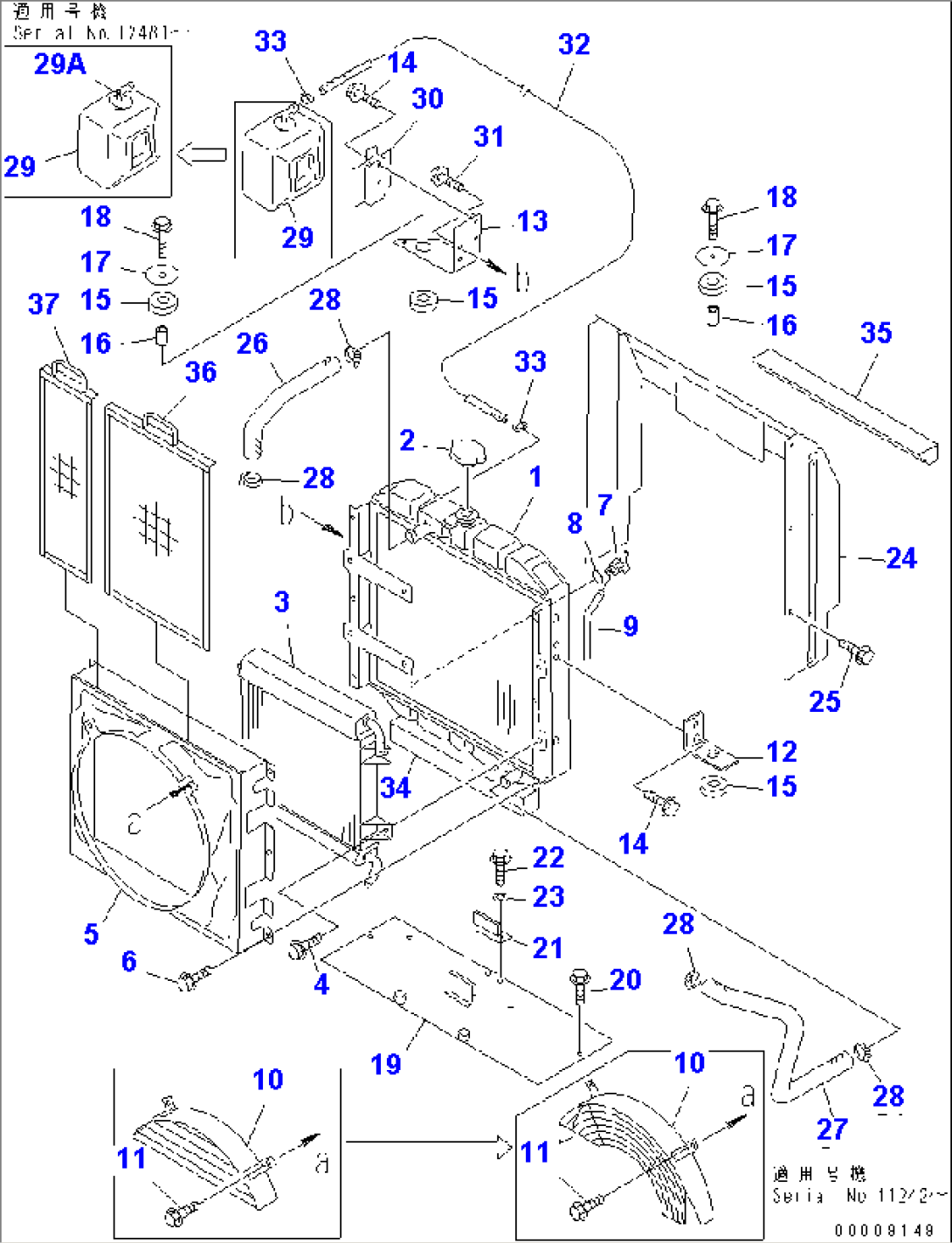

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-03-21111 | RADIATOR | 12211-13800 | |
| 1 | 361-03-21110 | RADIATOR ASS'Y | 11270-12210 | |
| 2 | 363-03-31330 | CAP | 11270-13800 | |
| 3 | 361-03-24110 | OIL COOLER ASS'Y | 11270-@ | |
| 4 | 363-03-31350 | BOLT | 11270-13800 | |
| 5 | 361-J89-2250 | SHROUD | 11270-13800 | |
| 6 | 363-03-31340 | BOLT | 11270-13800 | |
| 7 | 363-03-31360 | VALVE | 11270-13800 | |
| 8 | 363-03-31370 | O-RING | 11270-13800 | |
| 9 | 361-03-21130 | HOSE | 11270-@ | |
| 10 | 42A-03-21412 | NET | 11242-@ | |
| 10 | \0\42A-03-21411 | NET | 11101-11241 | |
| 10 | \0\42A-03-21410 | NET | 10770-11100 | |
| 11 | 01435-00812 | BOLT | 11270-@ | |
| 12 | 361-03-21150 | BRACKET,L.H. | 11270-@ | |
| 13 | 361-03-21160 | BRACKET,R.H. | 11270-@ | |
| 14 | 01435-00812 | BOLT | 11270-@ | |
| 15 | 416-03-11221 | CUSHION | 11270-@ | |
| 16 | 363-03-31160 | TUBE | 11270-@ | |
| 17 | 416-03-11210 | WASHER | 11270-@ | |
| 18 | 01435-01055 | BOLT | 11270-@ | |
| 19 | 361-03-21171 | COVER | 13001-13800 | |
| 19 | 361-03-21170 | COVER | 11270-13000 | |
| 20 | 01435-01016 | BOLT | 11270-@ | |
| 21 | 361-03-21180 | BRACKET | 11270-@ | |
| 22 | 01435-01016 | BOLT | 11270-@ | |
| 23 | 01643-31032 | WASHER | 11270-@ | |
| 24 | 361-03-21231 | DUCT | 11270-@ | |
| 25 | 01435-00610 | BOLT | 11270-@ | |
| 26 | 361-03-22110 | HOSE | 11270-@ | |
| 27 | 361-03-22120 | HOSE | 11270-@ | |
| 27 | 361-07-23180 | HOSE,(FOR CAR HEATER AND DEFROSTER) | 11270-@ | |
| 28 | 07289-00035 | CLAMP | 11458-@ | |
| 28 | 07281-00419 | CLAMP | 10001-11457 | |
| 29 | 42A-03-11121 | TANK | 12481-@ | |
| 29 | 42A-03-11120 | TANK | 11270-12480 | |
| 29A | 42A-03-11220 | CAP | 12481-@ | |
| 30 | 42A-03-11130 | BRACKET | 11270-@ | |
| 31 | 01435-00612 | BOLT | 11270-@ | |
| 32 | 361-03-23130 | HOSE | 11270-@ | |
| 33 | 07285-00115 | CLIP | 11270-@ | |
| 34 | 361-03-21250 | SHEET | 11270-@ | |
| 35 | 363-03-31270 | SHEET | 11270-@ | |
| 36 | 361-J89-2220 | NET,L.H. | 11270-@ | |
| 37 | 361-J89-2230 | NET,R.H. | 11270-@ |
