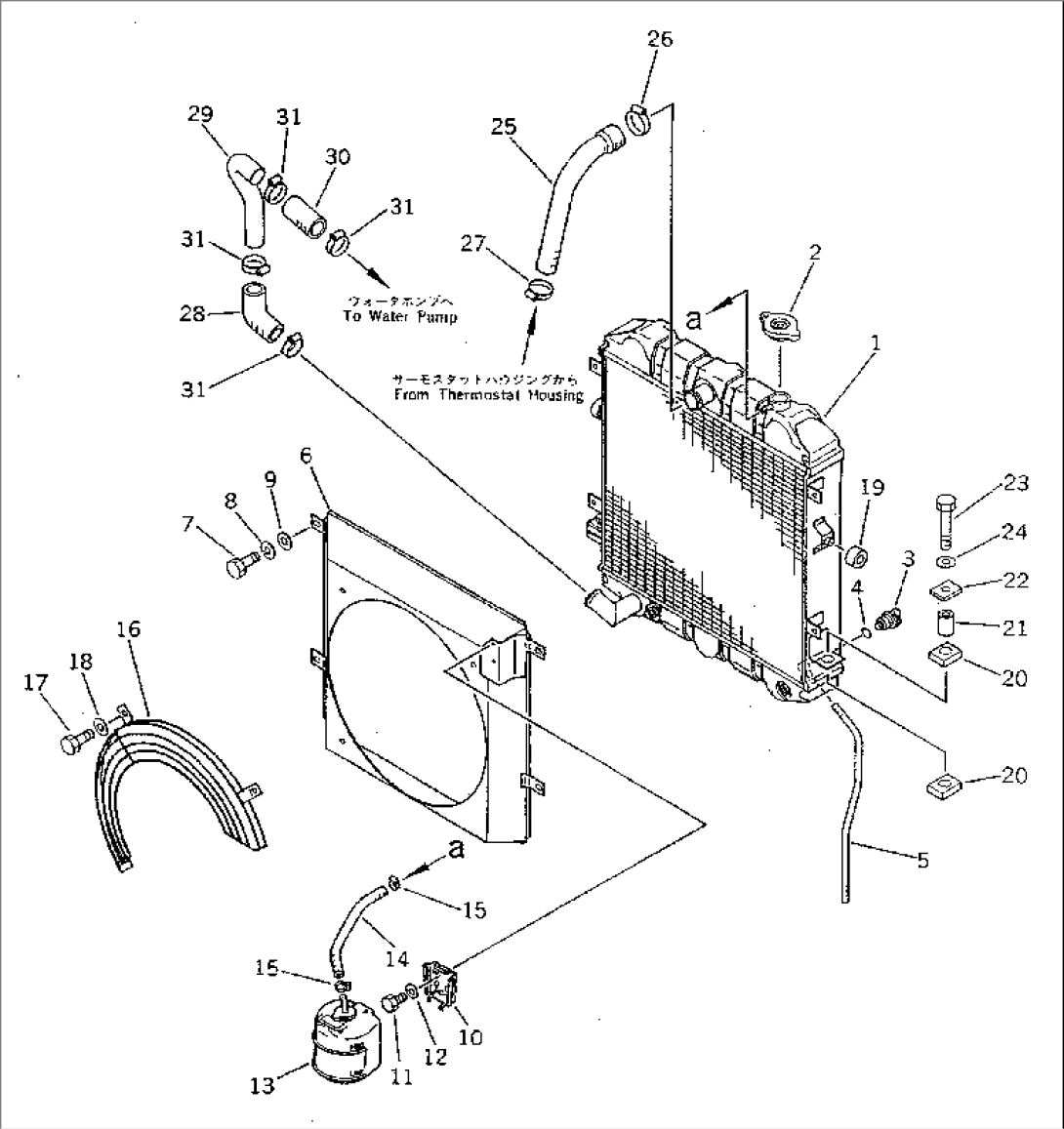

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-03-11100 | RADIATOR ASS'Y,(WITH OIL COOLER) | 10001-11999 | |
| 2 | 415-03-11140 | CAP | 10001-@ | |
| 3 | 415-03-11150 | COCK | 10001-@ | |
| 4 | 415-03-11160 | O-RING | 10001-@ | |
| 5 | 415-03-11120 | HOSE | 10001-@ | |
| 6 | 415-03-11130 | SHROUD | 10001-11999 | |
| 7 | 01010-51020 | BOLT | 10001-11999 | |
| 8 | 01602-21030 | WASHER,SPRING | 10001-11999 | |
| 9 | 01643-31032 | WASHER | 10001-11999 | |
| 10 | 362-03-14120 | BRACKET | 10001-@ | |
| 11 | 01010-50620 | BOLT | 10001-11999 | |
| 12 | 01643-30623 | WASHER | 10001-11999 | |
| 13 | 362-03-14110 | TANK | 10001-@ | |
| 13 | 362-03-31160 | CAP | 10001-@ | |
| 14 | 415-03-11310 | HOSE | 10001-11999 | |
| 15 | 07281-00137 | CLAMP | 10001-11999 | |
| 16 | 415-03-11321 | GUARD,FAN | .-11999 | |
| 16 | \0\415-03-11320 | GUARD,FAN | 10001-. | |
| 17 | 01010-31020 | BOLT | 10001-11999 | |
| 18 | 01643-31032 | WASHER | 10001-11999 | |
| 19 | 415-03-11240 | CUSHION | 10001-@ | |
| 20 | 415-03-11220 | CUSHION | 10001-11999 | |
| 21 | 415-03-11210 | SPACER | 10001-11999 | |
| 22 | 415-03-11230 | PLATE | 10001-11999 | |
| 23 | 01010-31260 | BOLT | 10001-11999 | |
| 24 | 01643-31232 | WASHER | 10001-11999 | |
| 25 | 415-03-12111 | HOSE,UPPER | 10501-11999 | |
| 25 | \0\415-03-12110 | HOSE,UPPER | 10001-10500 | |
| 26 | 07281-00549 | CLAMP | 10001-@ | |
| 27 | 07281-00489 | CLAMP | 10001-@ | |
| 28 | 415-03-12121 | HOSE | 10501-11999 | |
| 28 | \0\415-03-12120 | HOSE | 10001-10500 | |
| 29 | 415-03-12130 | TUBE | 10001-11999 | |
| 30 | 415-03-12141 | HOSE | 10501-11999 | |
| 30 | \0\415-03-12140 | HOSE | 10001-10500 | |
| 31 | 07281-00549 | CLAMP | 10001-11999 |
