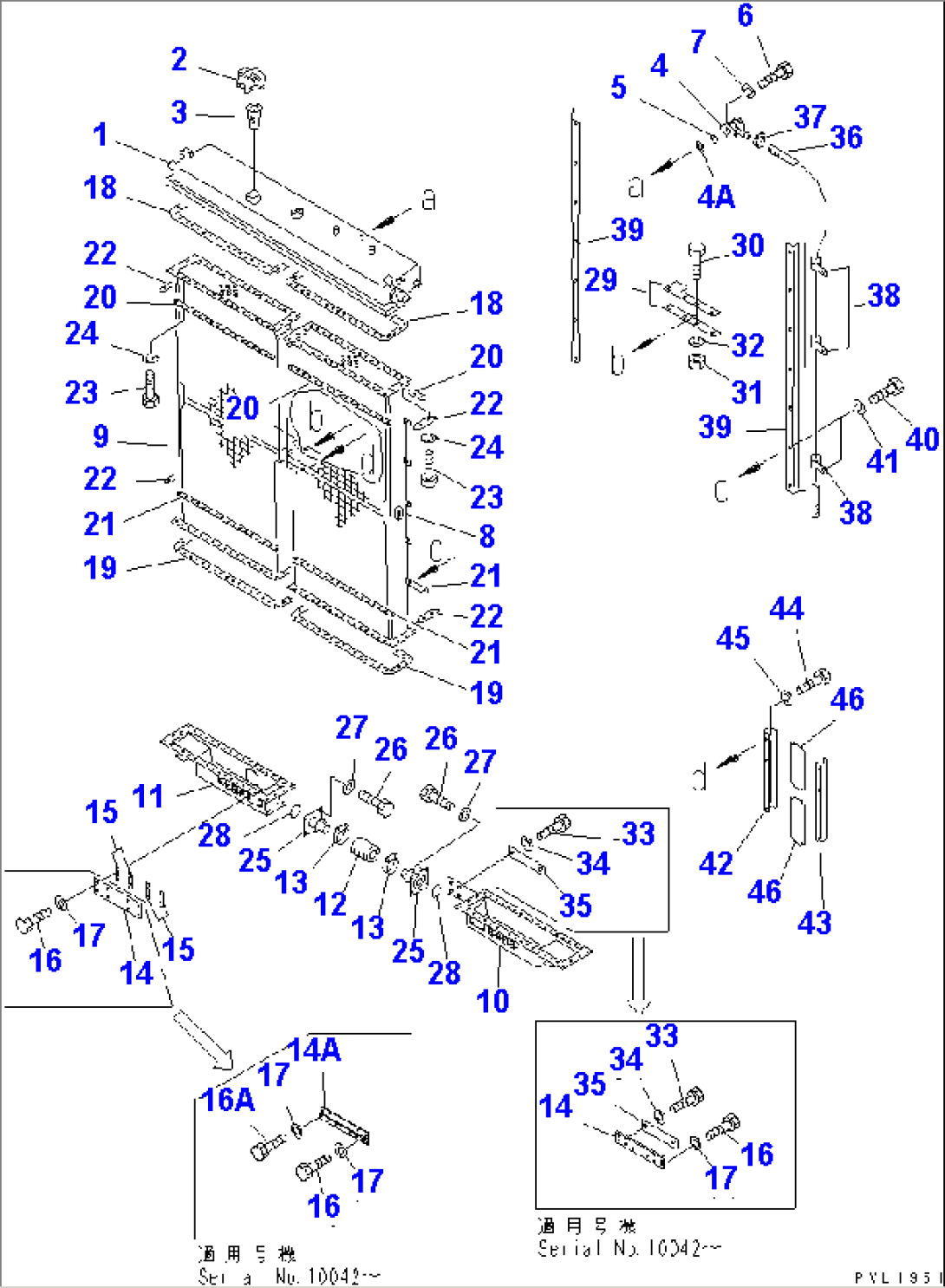

| Item | Part No. | Part Name | Qty | Serial No. |
| 19M-03-00213 | RADIATOR ASS'Y | 10042- | ||
| 19M-03-00212 | RADIATOR ASS'Y | 10033-10041 | ||
| 19M-03-00211 | RADIATOR ASS'Y | 10012-10032 | ||
| 1 | 19M-03-11120 | TANK | 10001- | |
| 2 | 07093-20000 | CAP | 10001- | |
| 3 | 07056-00048 | STRAINER | 10001- | |
| 4 | 195-03-41370 | VALVE | 10001- | |
| 4A | 175-03-32570 | SCREEN | 10042- | |
| 5 | 07000-13045 | O-RING | 10001- | |
| 6 | 01010-81025 | BOLT | 10001- | |
| 7 | 01602-21030 | WASHER,SPRING | 10001- | |
| 8 | 19M-03-21112 | CORE,L.H. | 10033- | |
| 8 | 19M-03-21111 | CORE,L.H. | 10012-10032 | |
| 9 | 19M-03-21122 | CORE,R.H. | 10033- | |
| 9 | 19M-03-21121 | CORE,R.H. | 10012-10032 | |
| 10 | 19M-03-21250 | TANK,L.H. | 10012- | |
| 11 | 19M-03-21260 | TANK,R.H. | 10012- | |
| 12 | 19M-03-11660 | HOSE | 10001- | |
| 13 | 07289-00095 | CLAMP | 10020- | |
| 13 | \0\20D-09-11130 | CLAMP | 10001-10019 | |
| 14 | 19M-03-21321 | PLATE | 10042- | |
| 14 | \0\19M-03-21320 | PLATE | 10012-10041 | |
| 14A | 19M-03-21610 | BRACKET | 10042- | |
| 15 | 19M-03-11650 | SHIM, 0.6MM | 10001- | |
| 16 | 01010-81230 | BOLT | 10042- | |
| 16 | 01010-81230 | BOLT | 10012-10041 | |
| 16A | 01010-81240 | BOLT | 10042- | |
| 17 | 01643-31232 | WASHER | 10012- | |
| 18 | 19M-03-11181 | GASKET | 10012- | |
| 19 | 19M-03-21280 | GASKET | 10012- | |
| 20 | 19M-03-11190 | PLATE | 10012- | |
| 21 | 19M-03-21290 | PLATE | 10012- | |
| 22 | 19M-03-11210 | PLATE | 10001- | |
| 23 | 01010-81030 | BOLT | 10001- | |
| 24 | 01602-21030 | WASHER,SPRING | 10001- | |
| 25 | 19M-03-12280 | FLANGE | 10003- | |
| 26 | 01010-81030 | BOLT | 10003- | |
| 27 | 01643-31032 | WASHER | 10003- | |
| 28 | 07000-12085 | O-RING | 10003- | |
| 29 | 19M-03-11220 | PLATE | 10001- | |
| 30 | 01010-81050 | BOLT | 10001- | |
| 31 | 01580-01008 | NUT | 10001- | |
| 32 | 01602-21030 | WASHER,SPRING | 10001- | |
| 33 | 01010-81240 | BOLT | 10012- | |
| 34 | 01643-31232 | WASHER | 10012- | |
| 35 | 19M-03-21490 | PLATE | 10012- | |
| 36 | 19M-03-11880 | HOSE | 10001- | |
| 37 | 07281-00167 | CLAMP | 10003- | |
| 38 | 208-06-12120 | CLIP | 10001- | |
| 39 | 19M-03-11290 | PLATE,BAFFLE | 10001- | |
| 40 | 01010-81020 | BOLT | 10012- | |
| 41 | 01602-21030 | WASHER,SPRING | 10012- | |
| 42 | 19M-03-21460 | GUIDE,R.H. | 10012- | |
| 43 | 19M-03-21450 | GUIDE,L.H. | 10012- | |
| 44 | 01010-81020 | BOLT | 10012- | |
| 45 | 01643-51032 | WASHER | 10012- | |
| 46 | 19M-03-21480 | PLATE | 10012- |
