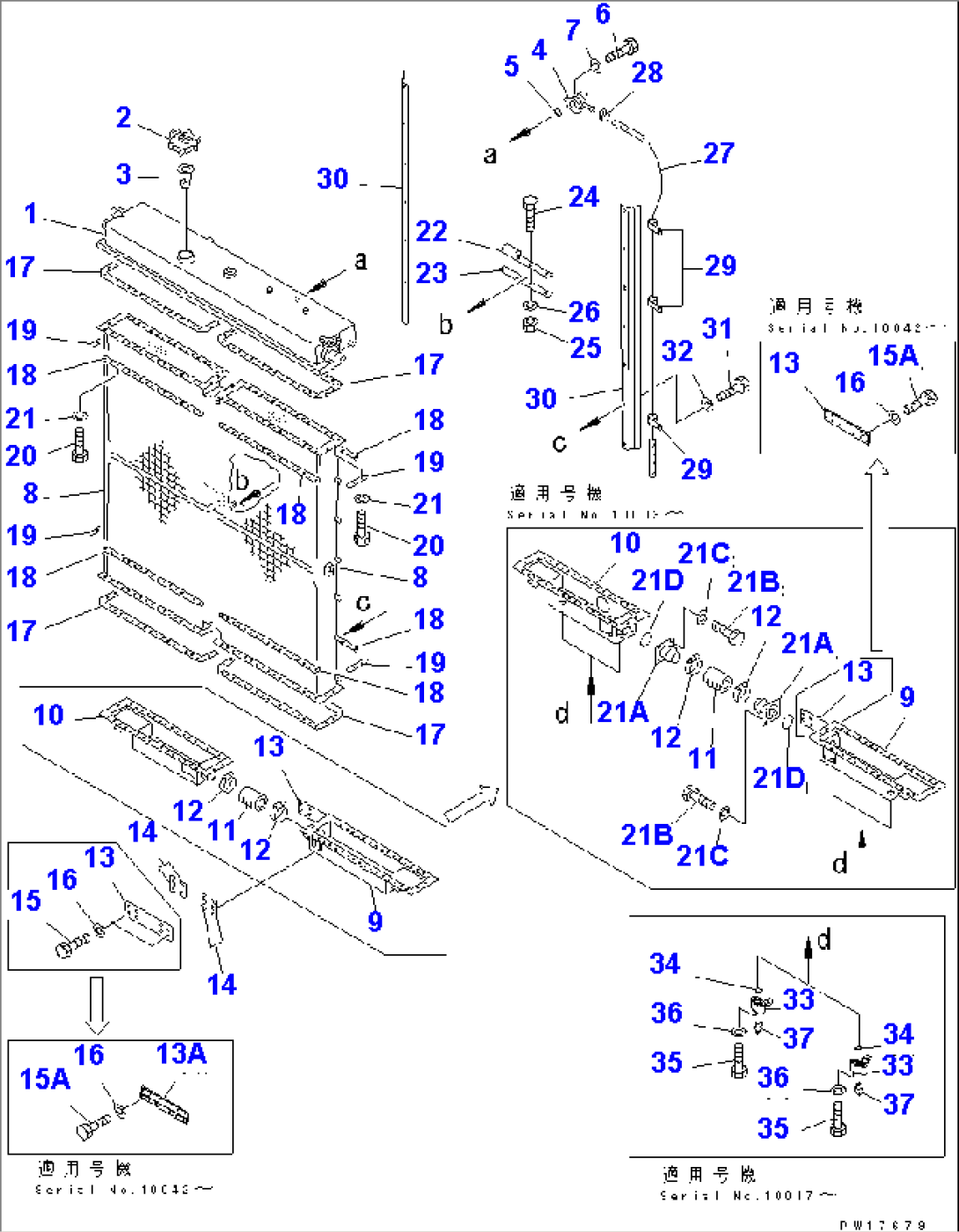

| Item | Part No. | Part Name | Qty | Serial No. |
| 19M-03-00014 | RADIATOR ASS'Y | 10042-10042 | ||
| 19M-03-00013 | RADIATOR ASS'Y | 10017-10041 | ||
| 19M-03-00012 | RADIATOR ASS'Y | 10011-10016 | ||
| \0\19M-03-00011 | RADIATOR ASS'Y | 10003-10010 | ||
| \0\19M-03-00010 | RADIATOR ASS'Y | 10001-10002 | ||
| 1 | 19M-03-11120 | TANK | 10001-10042 | |
| 2 | 07093-20000 | CAP | 10001-@ | |
| 3 | 07056-00048 | STRAINER | 10001-@ | |
| 4 | 195-03-41370 | VALVE | 10001-@ | |
| 5 | 07000-13045 | O-RING | 10001-@ | |
| 6 | 01010-81025 | BOLT | 10001-@ | |
| 7 | 01602-21030 | WASHER,SPRING | 10001-@ | |
| 8 | 19M-03-11110 | CORE | 10001-10042 | |
| 9 | 19M-03-12360 | TANK,L.H. | 10017-10042 | |
| 9 | 19M-03-11132 | TANK,L.H. | 10003-10011 | |
| 9 | 19M-03-11131 | TANK,L.H. | 10001-10002 | |
| 10 | 19M-03-12380 | TANK,R.H. | 10017-10042 | |
| 10 | 19M-03-11141 | TANK,R.H. | 10003-10011 | |
| 10 | 19M-03-11140 | TANK,R.H. | 10001-10002 | |
| 11 | 19M-03-11660 | HOSE | 10001-@ | |
| 12 | 07289-00095 | CLAMP | 10020-@ | |
| 12 | \0\20D-09-11130 | CLAMP | 10001-10019 | |
| 13 | 19M-03-11642 | PLATE | 10042-10042 | |
| 13 | 19M-03-11641 | PLATE | 10003-10041 | |
| 13 | 19M-03-11640 | PLATE | 10001-10002 | |
| 13A | 19M-03-12520 | BRACKET | 10042-10042 | |
| 14 | 19M-03-11650 | SHIM, 0.6MM | 10001-@ | |
| 15 | 01010-81230 | BOLT | 10001-10041 | |
| 15A | 01010-81230 | BOLT | 10042-10042 | |
| 16 | 01643-31232 | WASHER | 10042-10042 | |
| 16 | 01643-31232 | WASHER | 10001-10041 | |
| 17 | 19M-03-11181 | GASKET | 10011-10042 | |
| 17 | \0\19M-03-11180 | GASKET | 10001-10010 | |
| 18 | 19M-03-11190 | PLATE | 10001-10042 | |
| 19 | 19M-03-11210 | PLATE | 10001-@ | |
| 20 | 01010-81030 | BOLT | 10001-@ | |
| 21 | 01602-21030 | WASHER,SPRING | 10001-@ | |
| 21A | 19M-03-12280 | FLANGE | 10003-@ | |
| 21B | 01010-81030 | BOLT | 10003-@ | |
| 21C | 01643-31032 | WASHER | 10003-@ | |
| 21D | 07000-12085 | O-RING | 10003-@ | |
| 22 | 19M-03-11390 | PLATE | 10001-10042 | |
| 23 | 19M-03-11220 | PLATE | 10001-10042 | |
| 24 | 01010-81050 | BOLT | 10001-@ | |
| 25 | 01580-01008 | NUT | 10001-@ | |
| 26 | 01602-21030 | WASHER,SPRING | 10001-@ | |
| 27 | 19M-03-11880 | HOSE | 10001-@ | |
| 28 | 07281-00167 | CLAMP | 10003-@ | |
| 28 | 07281-00137 | CLAMP | 10001-10002 | |
| 29 | 208-06-12120 | CLIP | 10001-@ | |
| 30 | 19M-03-11290 | PLATE,BAFFLE | 10001-10042 | |
| 31 | 01010-81020 | BOLT | 10001-10042 | |
| 32 | 01602-21030 | WASHER,SPRING | 10001-10042 | |
| 33 | 145-49-42291 | NIPPLE | 10017-10042 | |
| 34 | 07000-13030 | O-RING | 10017-10042 | |
| 35 | 01010-81060 | BOLT | 10017-10042 | |
| 36 | 01643-31032 | WASHER | 10017-10042 | |
| 37 | 07042-30108 | PLUG | 10017-10042 |
