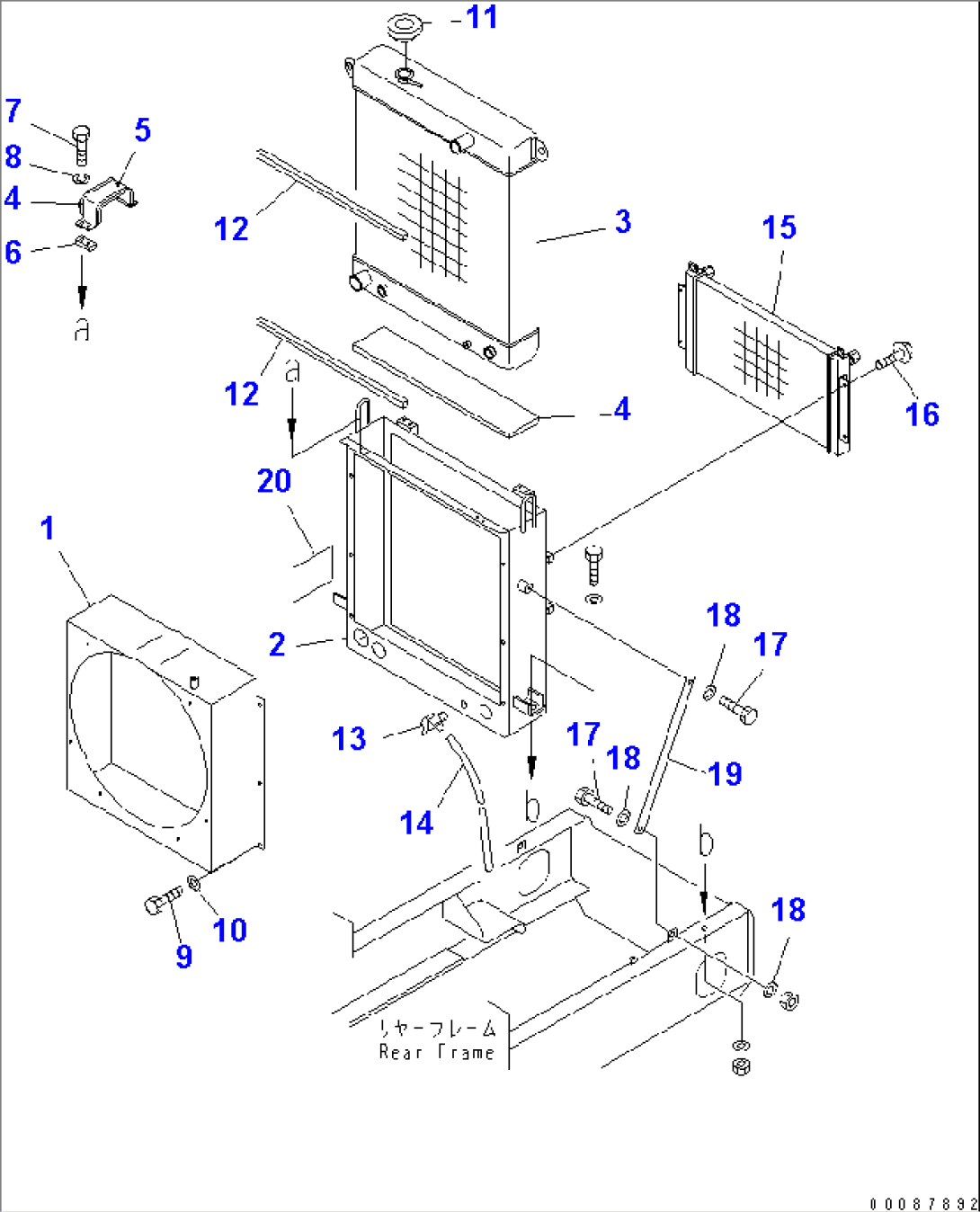

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-U47-2020 | RADIATOR ASS'Y | 54572- | ||
| 417-U47-2270 | RADIATOR ASS'Y | 54572- | ||
| 1 | 417-U47-2340 | SHROUD | 54572- | |
| 2 | 417-U47-2450 | FRAME | 54572- | |
| 3 | 417-U47-2280 | CORE ASS'Y | 54572- | |
| 4 | 417-U47-2140 | SHEET | 54572- | |
| 5 | 417-U47-2150 | CLAMP | 54572- | |
| 6 | 417-U47-2160 | SHIM | 54572- | |
| 7 | 01010-80825 | BOLT | 54572- | |
| 8 | 01602-20825 | WASHER | 54572- | |
| 9 | 01010-81020 | BOLT | 54572- | |
| 10 | 01643-31032 | WASHER | 54572- | |
| 11 | 417-U47-2430 | CAP | 54572- | |
| 12 | 417-U47-2190 | PACKING | 54572- | |
| 13 | 419-03-11340 | VALVE | 54572- | |
| 14 | 416-03-11150 | HOSE | 54572- | |
| 15 | 418-62-25120 | OIL COOLER ASS'Y | 54572- | |
| 16 | 01435-00816 | BOLT | 54572- | |
| 17 | 01010-81435 | BOLT | 54572- | |
| 18 | 01643-31445 | WASHER | 54572- | |
| 19 | 417-U47-2210 | PLATE | 54572- | |
| 20 | 417-U46-1150 | PLATE | 54572- |
