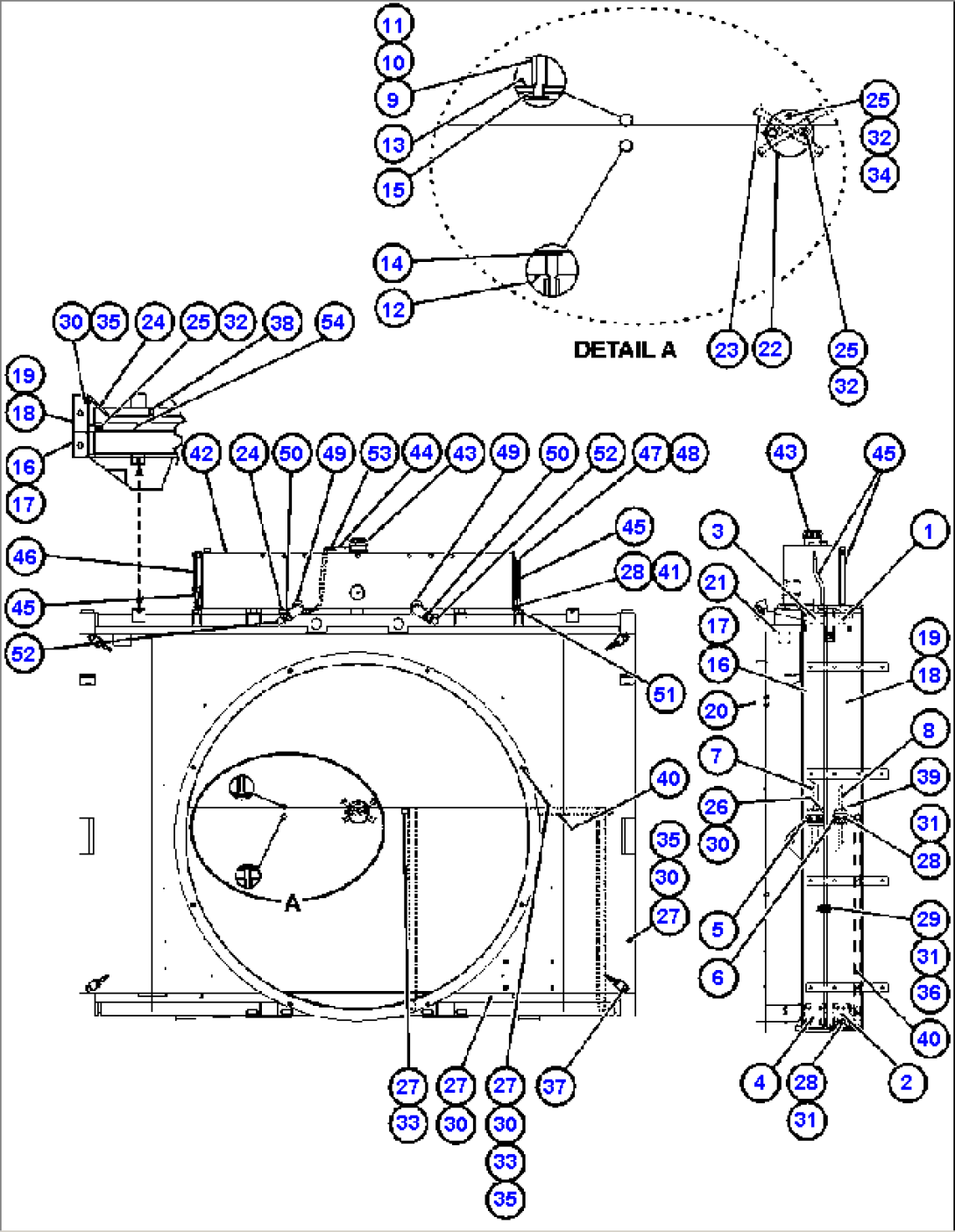

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BF5345 | TANK - FRONT TOP | ||
| 2 | BF5346 | TANK - FRONT BOTTOM | ||
| 3 | BF5347 | TANK - REAR TOP | ||
| 4 | BF5348 | TANK - REAR BOTTOM | ||
| 5 | BF1292 | TANK - CENTER REAR | ||
| 6 | XA2430 | TANK - CENTER FRONT | ||
| 7 | BF4331 | SUPPORT - CENTER REAR | ||
| 8 | BF3628 | SUPPORT - CENTER FRONT | ||
| 9 | VE3475 | TUBE | ||
| 10 | BF0634 | TUBE | ||
| 11 | VE1219 | TUBE, STAY END | ||
| 12 | VE7648 | AIR BAFFLE | ||
| 13 | VE7649 | AIR BAFFLE | ||
| 14 | VE3999 | GROMMENT, RUBBER | ||
| 15 | VE4000 | GROMMENT, RUBBER | ||
| 16 | XA2431 | MEMBER, SIDE - F.S. | ||
| 17 | XA2432 | MEMBER, SIDE - N.S. | ||
| 18 | XA2433 | MEMBER, SIDE - F.S. | ||
| 19 | XA2434 | MEMBER, SIDE - N.S. | ||
| 20 | BF4159 | RING, FAN | ||
| 21 | BF4694 | SHROUD, FAN | ||
| 22 | VE1285 | BRACKET, X-BRACE | ||
| 23 | BF2772 | ROD, X-BRACE | ||
| 24 | VE7657 | TUBE, OVERFLOW | ||
| 25 | C5747 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 26 | VE4005 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 27 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 28 | VE3460 | CAPSCREW | ||
| 29 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 30 | C0312 | LOCKWASHER - 3/8" | ||
| 31 | C1540 | LOCKWASHER - 1/2" | ||
| 32 | VE5442 | FLAT WASHER | ||
| 33 | E3735 | FLAT WASHER - 3/8" | ||
| 34 | VE6312 | NUT | ||
| 35 | C1521 | NUT - 3/8" - 16NC | ||
| 36 | VE3461 | NUT | ||
| 37 | C1528 | NUT - 3/4" - 10NC | ||
| 38 | VE1223 | CLIP, HOSE | ||
| 39 | BF3622 | CAPSCREW | ||
| 40 | BF4695 | FUEL COOLER ASSEMBLY | ||
| 40 | BF4981 | FRAME, COOLER | ||
| 40 | VE3999 | GROMMET, RUBBER | ||
| 40 | VE4000 | GROMMET, RUBBER | ||
| 40 | BF4982 | TUBE | ||
| 41 | VE4440 | WASHER | ||
| 42 | BF5349 | TANK, SURGE | ||
| 43 | VE1474 | CAP - 14 PSI | ||
| 44 | BF3624 | HOSE, OVERFLOW | ||
| 45 | BF4460 | HOSE | ||
| 46 | BF3625 | GAUGE, SIGHT | ||
| 47 | BF4461 | ELBOW | ||
| 48 | BF4462 | SWIVEL | ||
| 49 | VE4441 | ELBOW | ||
| 50 | VE8326 | BUSHING, REDUCING | ||
| 51 | BF4463 | ADAPTOR | ||
| 52 | BF4464 | FITTING | ||
| 53 | XA2435 | CLIP, HOSE | ||
| 54 | BF5343 | BAFFLE | ||
| NS|59 | NOTE: NS = NOT SHOWN | |||
| NS|60 | XA1900 | BRACKET | ||
| NS|61 | XA1901 | CAPSCREW | ||
| NS|62 | XA1902 | WASHER |
