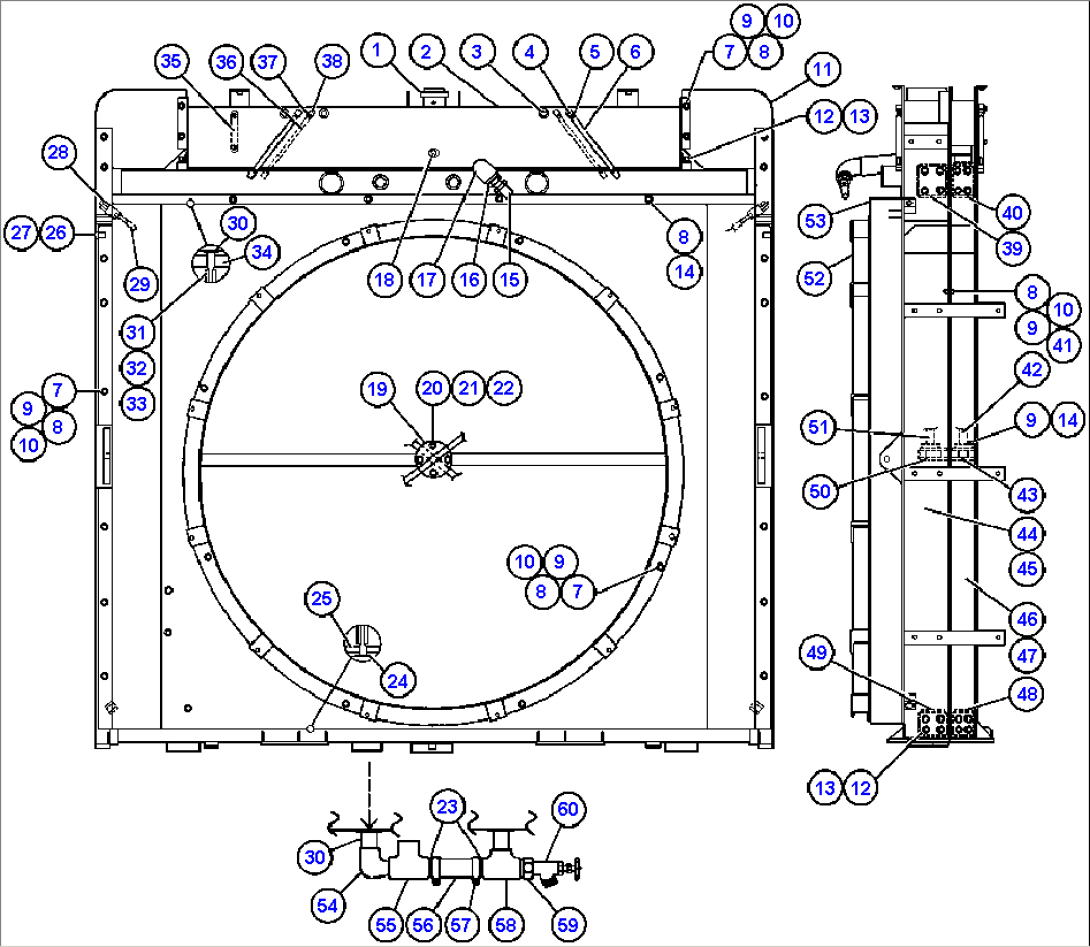

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE1474 | CAP, RADIATOR - 14PSI | ||
| 2 | BF2441 | TANK, SURGE | ||
| 3 | VE4014 | PLUG - 3/8" NPT | ||
| 4 | VE4013 | FITTING | ||
| 5 | VE4011 | FITTING | ||
| 6 | VE4443 | HOSE | ||
| 7 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 8 | E3735 | FLAT WASHER - 3/8" | ||
| 9 | C0312 | LOCKWASHER - 3/8" | ||
| 10 | C1521 | NUT - 3/8" - 16NC | ||
| 11 | BF2443 | BAFFLE | ||
| 12 | VE3460 | CAPSCREW | ||
| 13 | C1540 | LOCKWASHER - 1/2" | ||
| 14 | VE4005 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 15 | VE4447 | NIPPLE | ||
| 16 | VE4446 | REDUCER | ||
| 17 | VE4441 | ELBOW | ||
| 18 | C5769 | PLUG - 1/4" NPT | ||
| 19 | VE1954 | BRACKET, X-BRACE | ||
| 20 | C5747 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 21 | VE5442 | FLAT WASHER | ||
| 22 | VE6312 | NUT | ||
| 23 | VE4450 | NIPPLE | ||
| 24 | BF1415 | SEAL | ||
| 25 | BF2445 | AIR BAFFLE, BOTTOM | ||
| 26 | VE7899 | HOSE, OVERFLOW | ||
| 27 | VE1223 | CLIP | ||
| 28 | C1526 | NUT - 5/8" - 11NC | ||
| 29 | VE7898 | ROD, X-BRACE | ||
| 30 | VE4990 | PIPE | ||
| 31 | BF2141 | TUBE, LOCKING | ||
| 32 | BF2140 | TUBE, LOCKING | ||
| 33 | VE1219 | TUBE STAY END | ||
| 34 | BF2444 | AIR BAFFLE, TOP | ||
| 35 | PB6680 | GAUGE, SIGHT | ||
| 36 | VE4442 | HOSE | ||
| 37 | VE4012 | FITTING | ||
| 38 | VE4010 | FITTING | ||
| 39 | BF2440 | TANK | ||
| 40 | BF2804 | TANK | ||
| 41 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 42 | VE3995 | SUPPORT, CENTER | ||
| 43 | VE7890 | TANK, CENTER | ||
| 44 | VE7894 | SIDE MEMBER - R.H. | ||
| 45 | VE7895 | SIDE MEMBER - L.H. | ||
| 46 | VE7892 | SIDE MEMBER - R.H. | ||
| 47 | VE7893 | SIDE MEMBER - L.H. | ||
| 48 | BF2439 | TANK | ||
| 49 | BF2652 | TANK | ||
| 50 | VE7891 | TANK, CENTER | ||
| 51 | VE3998 | SUPPORT, CENTER | ||
| 52 | VE7896 | RING, FAN | ||
| 53 | BF2442 | SHROUD, FAN | ||
| 54 | VE4449 | ELBOW, STREET | ||
| 55 | VE4451 | VALVE, SWING | ||
| 56 | VE7257 | HOSE | ||
| 57 | VE4452 | CLAMP, HOSE | ||
| 58 | VE4448 | TEE | ||
| 59 | VE7256 | REDUCER, HEX | ||
| 60 | VE7258 | COCK, DRAIN |
