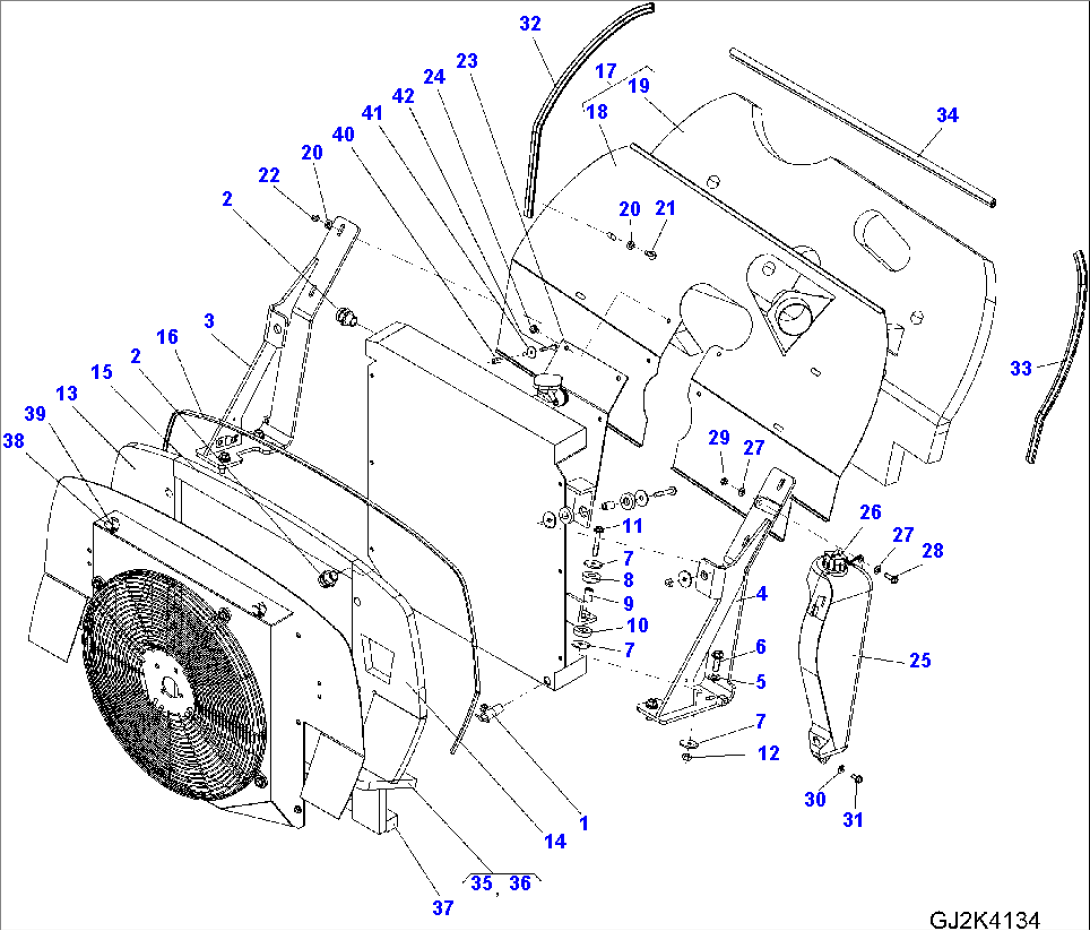

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-00-H0870 | DRAIN COOK | ||
| 2 | 421-00-H0170 | STUD | ||
| 3 | 42T-03-23080 | BRACKET | ||
| 4 | 42T-03-23091 | BRACKET | ||
| 5 | 01643-31232 | PLAIN WASHER | ||
| 6 | 01435-01235 | SCREW | ||
| 7 | 415-64-13120 | PLAIN WASHER | ||
| 8 | 415-64-13130 | BUFFER | ||
| 9 | 42Y-03-H1A80 | DISTANCE PIECE | ||
| 10 | 419-43-17930 | BUFFER | ||
| 11 | 01435-01060 | SCREW | ||
| 12 | 01580-01008 | NUT | ||
| 13 | 42T-03-23A80 | INSULATING MAT | ||
| 14 | 42T-03-23A90 | INSULATING MAT | ||
| 15 | 42T-03-23C20 | INSULATING MAT | ||
| 16 | 42T-03-23D40 | PROTECTIVE STRIP | ||
| 17 | 42T-03-23191 | PARTITION | ||
| 18 | 42T-03-23151 | BAFFLE | ||
| 19 | 42T-03-23C31 | INSULATING MAT | ||
| 20 | 01643-30823 | PLAIN WASHER | ||
| 21 | 01435-00820 | SCREW | ||
| 22 | 01580-10806 | NUT | ||
| 23 | 42U-03-23A20 | SHEET | ||
| 24 | 01435-00816 | SCREW | ||
| 25 | 42T-03-21A10 | EXPANSION TANK | ||
| 26 | 42T-03-21A20 | LOCKING UNIT | ||
| 27 | 01643-30823 | PLAIN WASHER | ||
| 28 | 01435-00825 | SCREW | ||
| 29 | 01580-10806 | NUT | ||
| 30 | 01643-30823 | PLAIN WASHER | ||
| 31 | 01435-00816 | SCREW | ||
| 32 | 42T-03-23E10 | PROTECTIVE STRIP | ||
| 33 | 42T-03-23E20 | PROTECTIVE STRIP | ||
| 34 | 42T-03-23D30 | PROTECTIVE STRIP | ||
| 35 | 42T-03-23D20 | INSULATING MAT | ||
| 36 | 42T-03-23D10 | INSULATING MAT | ||
| 37 | 42T-03-23C60 | INSULATING MAT | ||
| 38 | 42T-09-H2230 | CLAMP | ||
| 39 | 42T-09-H2820 | RIVET | ||
| 40 | 42U-03-21A10 | SLEEVE | ||
| 41 | 421-00-H0760 | PLAIN WASHER | ||
| 42 | 01010-80840 | SCREW |
