| Item | Part No. | Part Name | Qty | Serial No. |

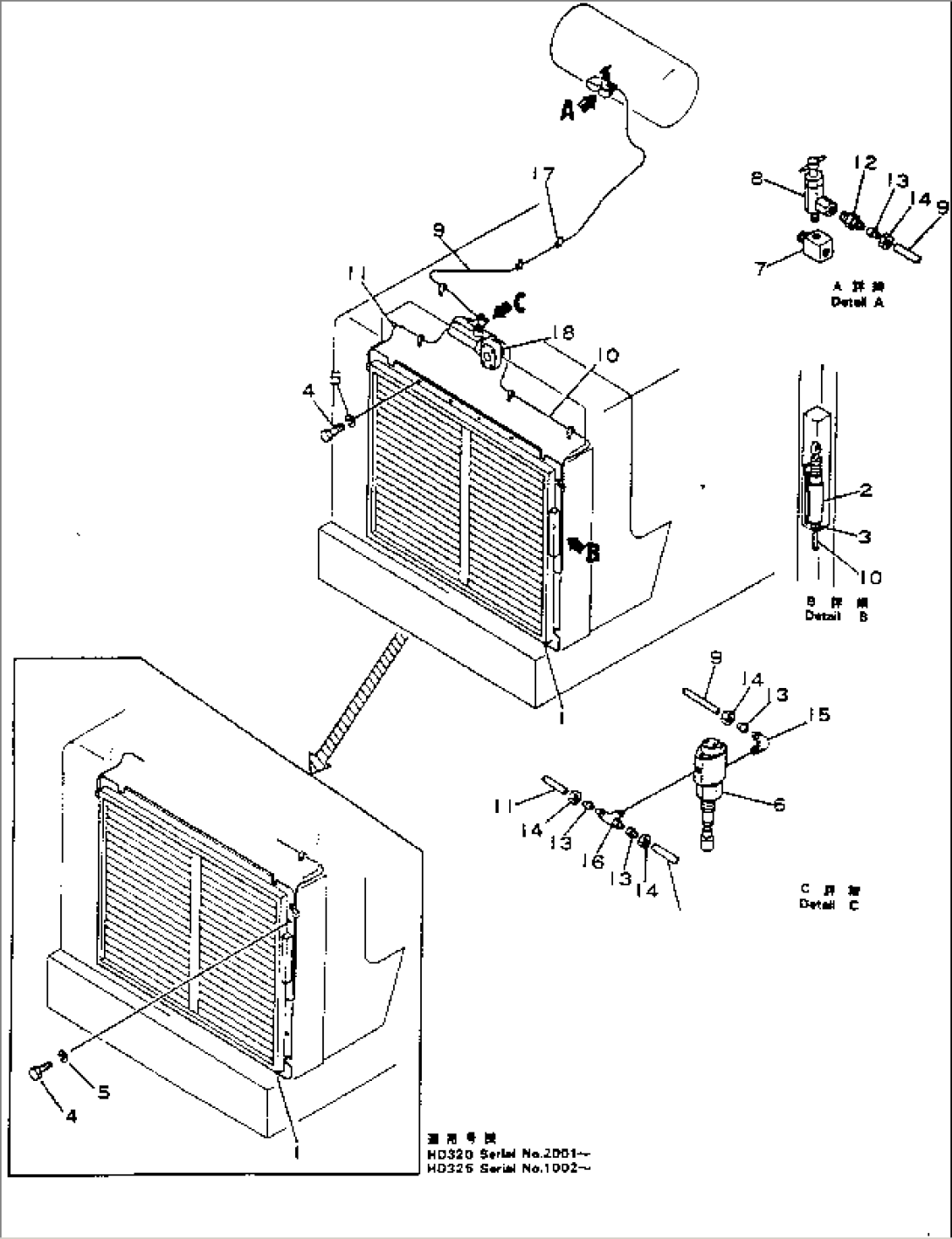

| 1 | 566-03-16201 | SHUTTER ASS'Y | 1002- | |
| 1 | 502-95-11100 | SHUTTER ASS'Y | 1000-1000 | |
| 2 | 568-03-26110 | CYLINDER ASS'Y | 1002- | |
| 3 | 568-03-26360 | COVER | 1002- | |
| 4 | 01010-51025 | BOLT | 1002- | |
| 4 | 01010-51025 | BOLT | 1000-1000 | |
| 5 | 01602-21030 | WASHER | 1002- | |
| 5 | 01602-21030 | WASHER | 1000-1000 | |
| 6 | 568-03-26410 | SHUTTER STAT ASS'Y | 1002- | |
| 7 | 485-44-11380 | JOINT | 1002- | |
| 8 | 568-03-26421 | VALVE ASS'Y | 1002- | |
| 9 | 07822-00430 | TUBE | 1002- | |
| 10 | 07822-00420 | TUBE | 1002- | |
| 11 | 07822-00416 | TUBE | 1002- | |
| 12 | 07836-00410 | CONNECTOR | 1002- | |
| 13 | 07831-00411 | SLEEVE | 1002- | |
| 14 | 07832-00410 | NUT | 1002- | |
| 15 | 07834-00410 | ELBOW | 1002- | |
| 16 | 07835-00410 | TEE | 1002- | |
| 17 | 08036-10614 | CLIP | 1002- | |
| 18 | 566-03-16110 | TUBE | 1002- |
