| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-03-11842 | BAFFLE | A10001- | |
| 04400-00414 | RIVET | A10001- | ||
| 2 | 01010-81025 | BOLT | A10001- | |
| 3 | 01643-31032 | WASHER | A10001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 1l s/n a10001 up
- Cooling system
- Radiator (baffle)
Поиск по каталогу

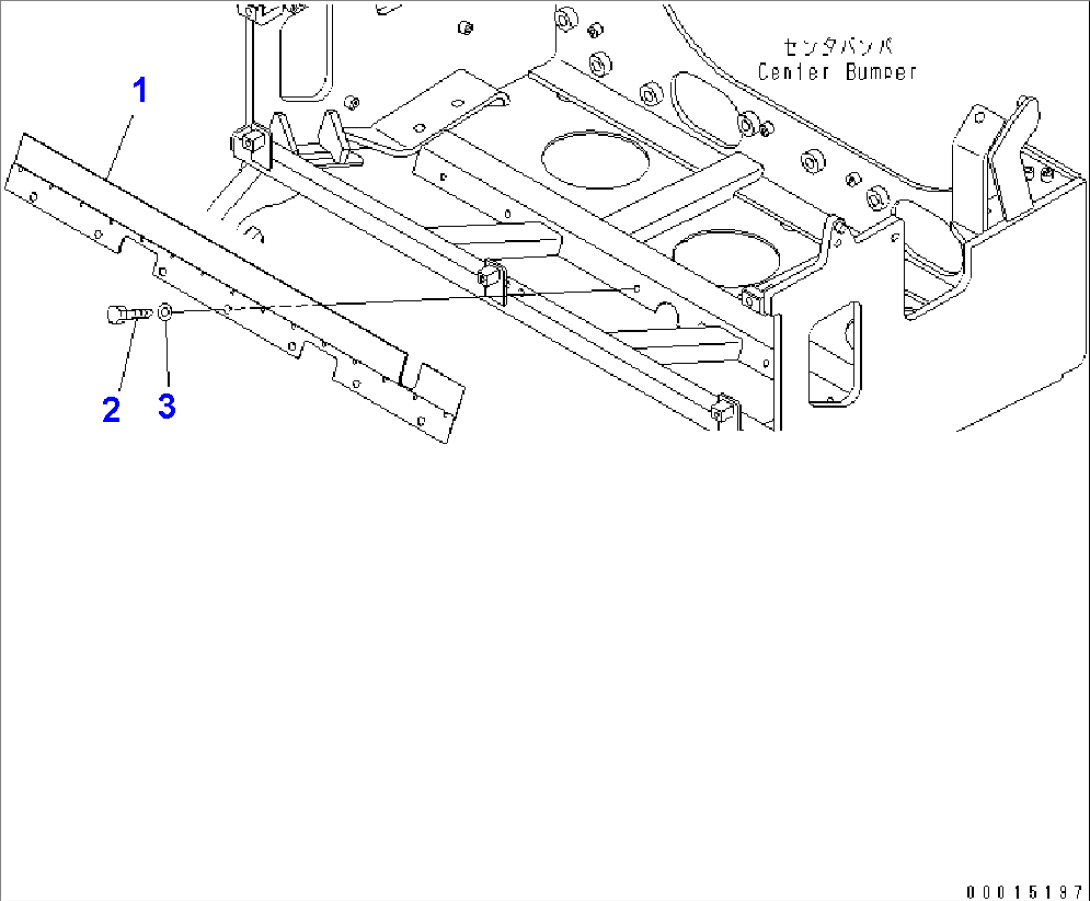

RADIATOR (BAFFLE)
