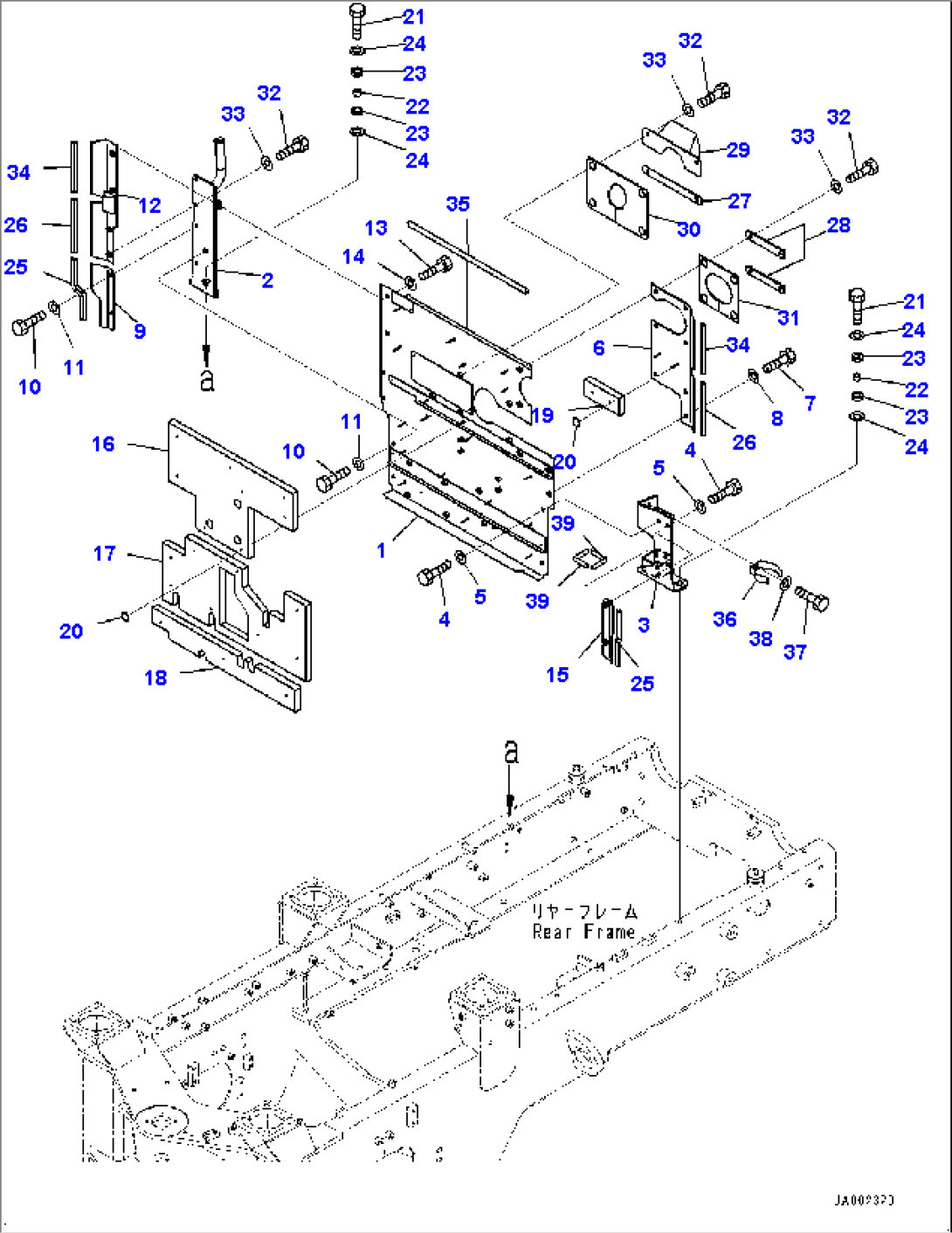

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-03-42550 | Baffle | 80001-81534 | |
| 2 | 416-03-41320 | Bracket | 80001-81534 | |
| 3 | 416-03-41330 | Bracket | 80001-@ | |
| 4 | 01010-81020 | Bolt | 80001-@ | |
| 5 | 01643-31032 | Washer | 80001-@ | |
| 6 | 416-03-41340 | Plate | 80001-@ | |
| 7 | 01010-81020 | Bolt | 80001-@ | |
| 8 | 01643-31032 | Washer | 80001-@ | |
| 9 | 416-03-41350 | Plate | 80001-81534 | |
| 10 | 01010-81020 | Bolt | 80001-@ | |
| 11 | 01643-31032 | Washer | 80001-@ | |
| 12 | 416-03-42560 | Plate | 80001-81534 | |
| 13 | 01010-81020 | Bolt | 80001-@ | |
| 14 | 01643-31032 | Washer | 80001-@ | |
| 15 | 416-03-42340 | Bracket | 80001-@ | |
| 16 | 416-03-42480 | Sheet | 80001-81534 | |
| 17 | 416-03-42490 | Sheet | 80001-81534 | |
| 18 | 416-03-41190 | Sheet | 80001-81534 | |
| 19 | 416-03-41710 | Sheet | 80001-@ | |
| 20 | 124-A62-1920 | Cap | 80001-@ | |
| 21 | 01010-81245 | Bolt | 80001-@ | |
| 22 | 421-03-11530 | Spacer | 80001-@ | |
| 23 | 416-03-11260 | Cushion | 80001-@ | |
| 24 | 419-43-17920 | Washer | 80001-@ | |
| 25 | 415-54-31180 | Seal | 80001-@ | |
| 26 | 23S-54-36560 | Seal, Door | 80001-@ | |
| 27 | 416-03-42150 | Plate | 80001-81534 | |
| 28 | 416-03-42320 | Plate | 80001-81534 | |
| 416-03-42580 | Cover | 80001-81534 | ||
| 29 | 416-03-42540 | Cover | 80001-81534 | |
| 30 | 416-03-42530 | Sheet | 80001-81534 | |
| 31 | 416-03-43390 | Sheet | 80001-81534 | |
| 32 | 01010-81025 | Bolt | 80001-@ | |
| 33 | 01643-31032 | Washer | 80001-@ | |
| 34 | 416-03-41720 | Seal | 80001-@ | |
| 35 | 416-03-42630 | Sheet | 80001-81534 | |
| 36 | 417-54-21460 | Spring | 80001-@ | |
| 37 | 01010-80820 | Bolt | 80001-@ | |
| 38 | 01643-30823 | Washer | 80001-@ | |
| 39 | 418-54-42380 | Finisher | 80001-@ |
