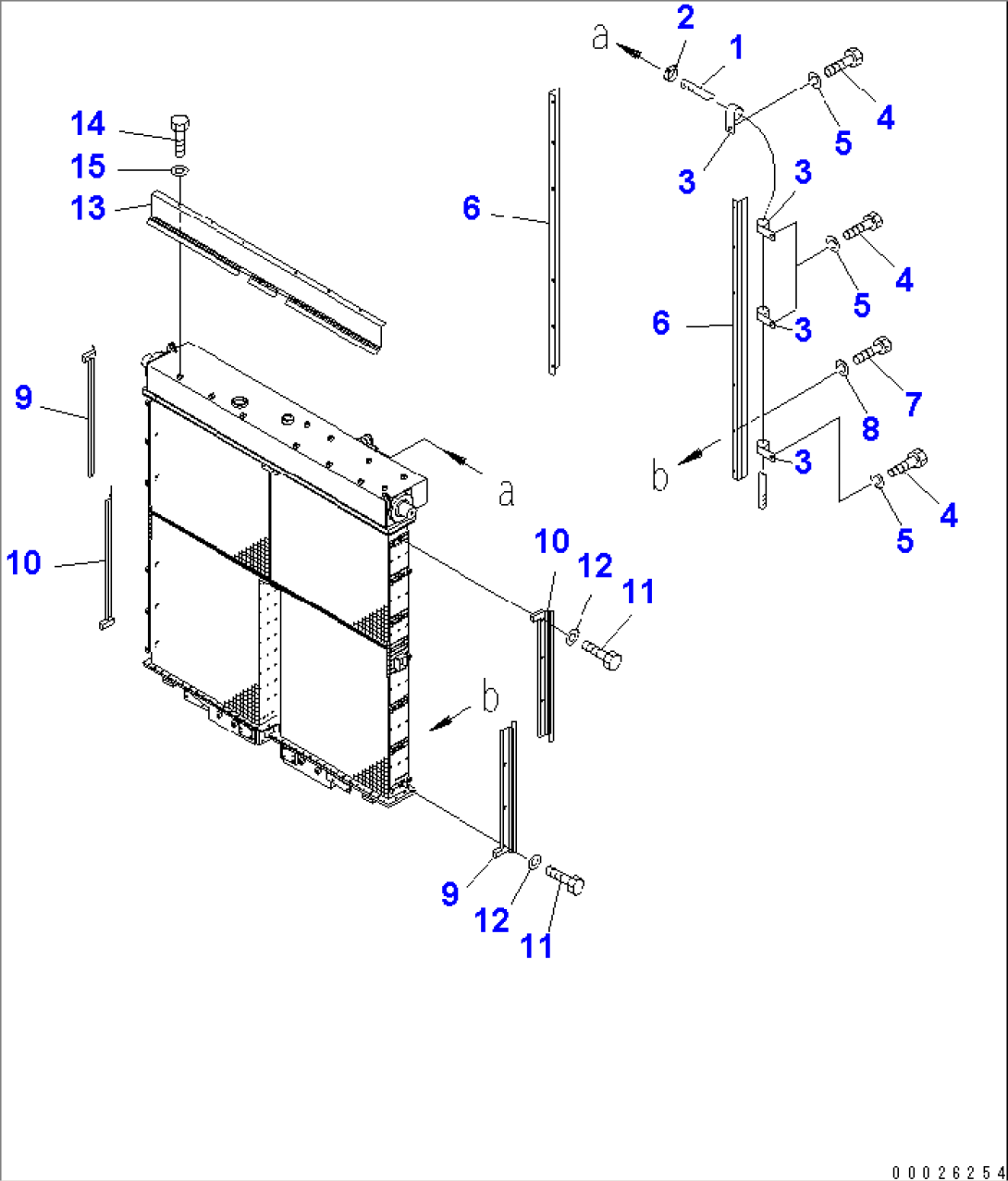

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-03-11880 | HOSE | 10101- | |
| 2 | 07281-00167 | CLAMP | 10101- | |
| 3 | 208-06-12120 | CLIP | 10101- | |
| 4 | 01010-81020 | BOLT | 10101- | |
| 5 | 01602-21030 | WASHER | 10101- | |
| 6 | 19M-03-31531 | BAFFLE | 10101- | |
| 7 | 01010-81020 | BOLT | 10101- | |
| 8 | 01602-21030 | WASHER | 10101- | |
| 9 | 19M-03-31491 | BAFFLE | 10101- | |
| 10 | 19M-03-31511 | BAFFLE | 10101- | |
| 11 | 01010-81020 | BOLT | 10101- | |
| 12 | 01643-31032 | WASHER | 10101- | |
| 13 | 19M-03-31710 | BAFFLE | 10101- | |
| 14 | 01010-81020 | BOLT | 10101- | |
| 15 | 01643-31032 | WASHER | 10101- |
