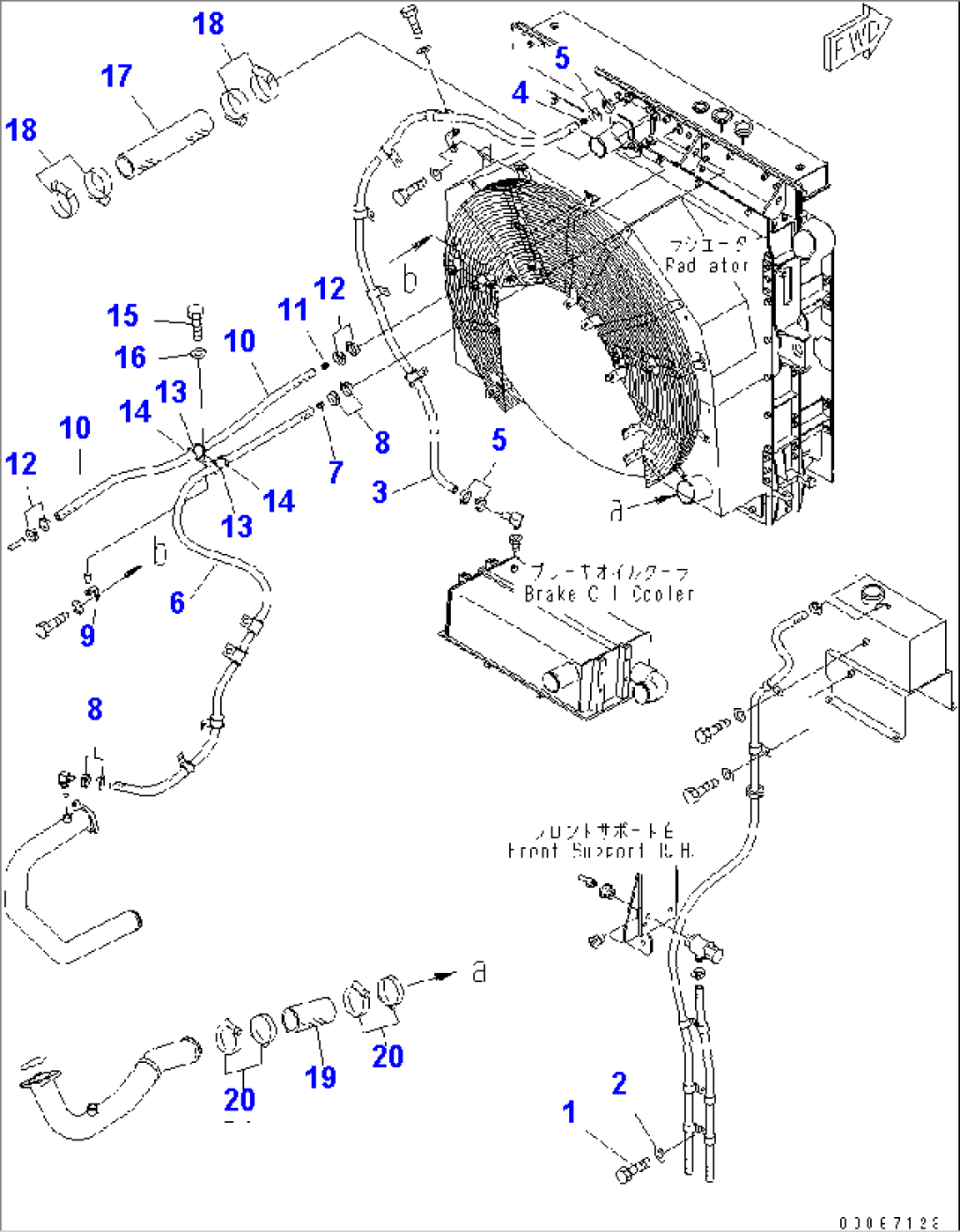

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81020 | BOLT | 10271- | |
| 2 | 01643-31032 | WASHER | 10271- | |
| 3 | 09483-40324 | HOSE | 10534- | |
| 3 | 09483-40325 | HOSE | 10271-10533 | |
| 4 | 426-03-21470 | TUBE | 10271- | |
| 5 | 07281-10197 | CLAMP | 10271- | |
| 6 | 09483-40321 | HOSE | 10534- | |
| 6 | 09483-40319 | HOSE | 10271-10533 | |
| 7 | 426-03-21470 | TUBE | 10271- | |
| 8 | 07281-10197 | CLAMP | 10271- | |
| 9 | 427-43-11370 | BRACKET | 10271- | |
| 10 | 09483-40309 | HOSE | 10271- | |
| 11 | 426-03-21470 | TUBE | 10271- | |
| 12 | 07281-10197 | CLAMP | 10271- | |
| 13 | 04434-52310 | CLIP | 10271- | |
| 14 | 07095-20314 | CUSHION | 10271- | |
| 15 | 01010-81020 | BOLT | 10271- | |
| 16 | 01643-31032 | WASHER | 10271- | |
| 17 | 569-03-88431 | HOSE | 10271- | |
| 18 | 07299-00095 | CLAMP | 10271- | |
| 19 | 566-03-83190 | HOSE | 10271- | |
| 20 | 569-02-82190 | CLAMP | 10271- |
