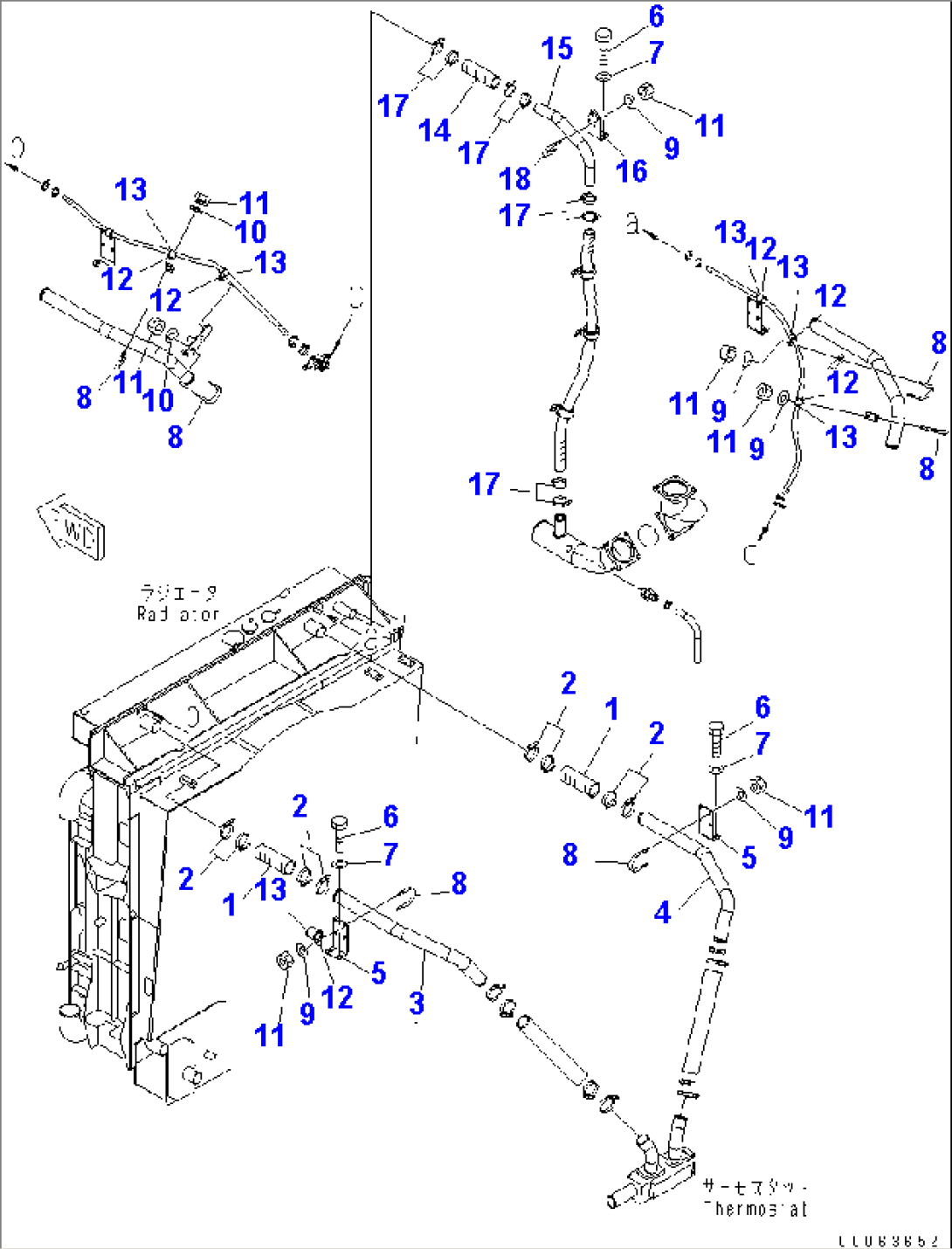

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-03-62230 | HOSE | 7169- | |
| 2 | 07299-00080 | CLAMP | 7169- | |
| 3 | 561-03-82111 | TUBE | 7169- | |
| 4 | 561-03-82121 | TUBE | 7169- | |
| 5 | 561-03-82620 | BRACKET | 7169- | |
| 6 | 01010-81225 | BOLT | 7169- | |
| 7 | 01643-31232 | WASHER | 7169- | |
| 8 | 07283-36155 | CLIP | 7169- | |
| 9 | 01643-31032 | WASHER | 7169- | |
| 10 | 01643-31032 | WASHER | 7169- | |
| 11 | 01597-01009 | NUT | 7169- | |
| 12 | 04434-52511 | CLIP | 7169- | |
| 13 | 07095-20318 | CUSHION | 7169- | |
| 14 | 561-03-82340 | HOSE | 7169- | |
| 15 | 561-03-82350 | TUBE | 7169- | |
| 16 | 561-03-82360 | BRACKET | 7169- | |
| 17 | 07281-10709 | CLAMP | 7169- | |
| 18 | 07283-34949 | CLIP | 7169- |
