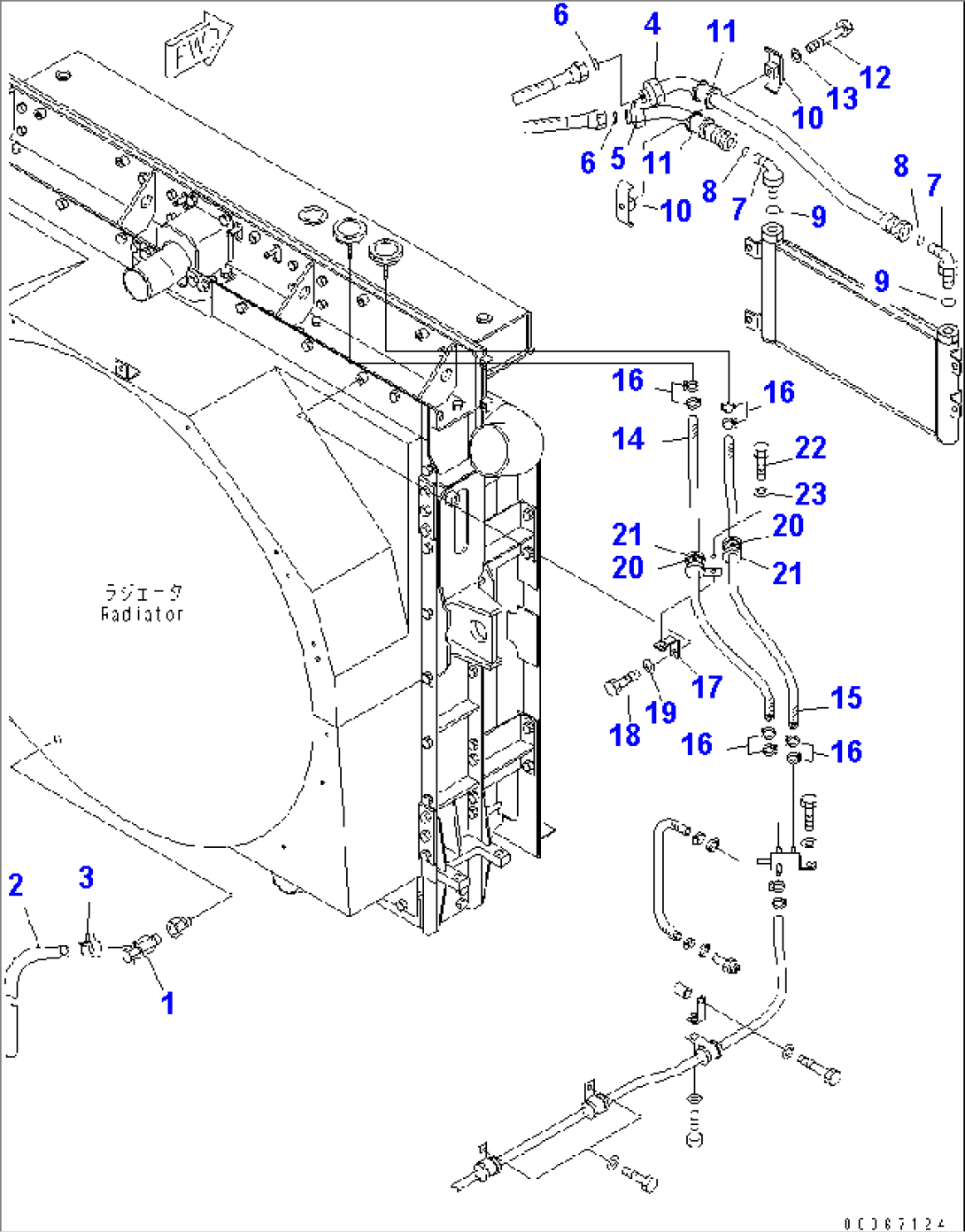

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-13241 | VALVE | 10271- | |
| 2 | 07270-01535 | TUBE | 10271- | |
| 3 | 07285-00155 | CLIP | 10271- | |
| 4 | 569-61-88131 | TUBE | 10271- | |
| 5 | 569-61-88141 | TUBE | 10271- | |
| 6 | 02896-11018 | O-RING | 10271- | |
| 7 | 02782-10628 | ELBOW | 10271- | |
| 8 | 02896-11018 | O-RING | 10271- | |
| 9 | 07002-12434 | O-RING | 10271- | |
| 10 | 07094-30518 | CLAMP | 10271- | |
| 11 | 07095-00525 | CUSHION | 10271- | |
| 12 | 01010-81265 | BOLT | 10271- | |
| 13 | 01643-31232 | WASHER | 10271- | |
| 14 | 569-03-88581 | HOSE | 10271- | |
| 15 | 569-03-88591 | HOSE | 10271- | |
| 16 | 07281-10167 | CLAMP | 10271- | |
| 17 | 427-43-11370 | BRACKET | 10271- | |
| 18 | 01010-81020 | BOLT | 10271- | |
| 19 | 01643-31032 | WASHER | 10271- | |
| 20 | 04434-51910 | CLIP | 10271- | |
| 21 | 07095-20213 | CUSHION | 10271- | |
| 22 | 01010-81020 | BOLT | 10271- | |
| 23 | 01643-31032 | WASHER | 10271- |
