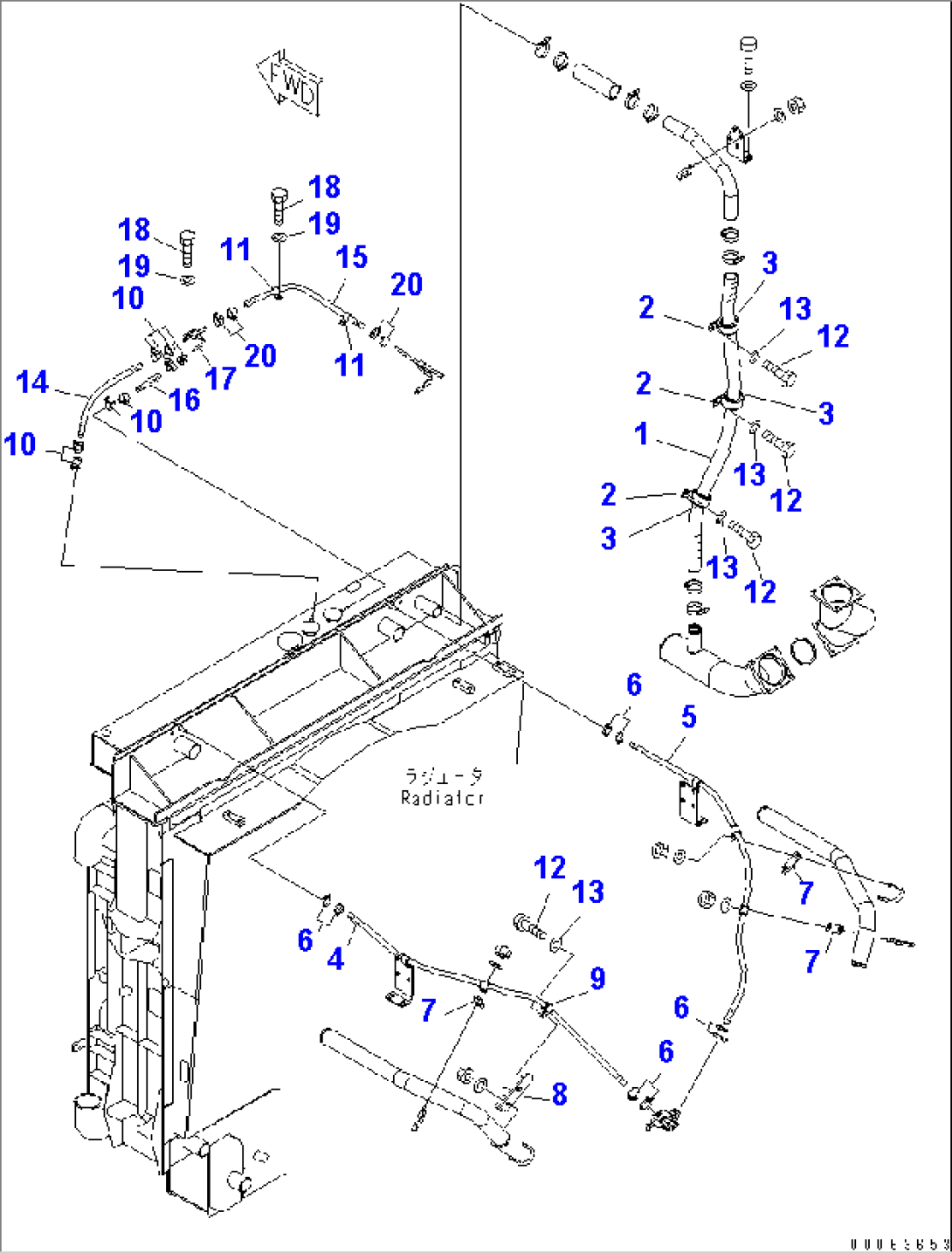

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-03-82421 | HOSE | 7169- | |
| 2 | 23S-61-12230 | CLIP | 7169- | |
| 3 | 561-61-85540 | GROMMET | 7169- | |
| 4 | 09483-40316 | HOSE | 7169- | |
| 5 | 09483-40316 | HOSE | 7169- | |
| 6 | 07281-10197 | CLAMP | 7169- | |
| 7 | 569-54-41380 | PLATE | 7169- | |
| 8 | 561-61-84490 | BRACKET | 7169- | |
| 9 | 04434-52512 | CLIP | 7169- | |
| 10 | 07281-10167 | CLAMP | 7169- | |
| 11 | 04434-52110 | CLIP | 7169- | |
| 12 | 01010-81220 | BOLT | 7169- | |
| 13 | 01643-31232 | WASHER | 7169- | |
| 14 | 561-03-82461 | HOSE | 7169- | |
| 15 | 09483-40407 | HOSE | 7169- | |
| 16 | 561-03-82471 | HOSE | 7169- | |
| 17 | 561-03-81350 | TUBE | 7169- | |
| 18 | 01010-81020 | BOLT | 7169- | |
| 19 | 01643-31032 | WASHER | 7169- | |
| 20 | 07281-00229 | CLAMP | 7169- |
