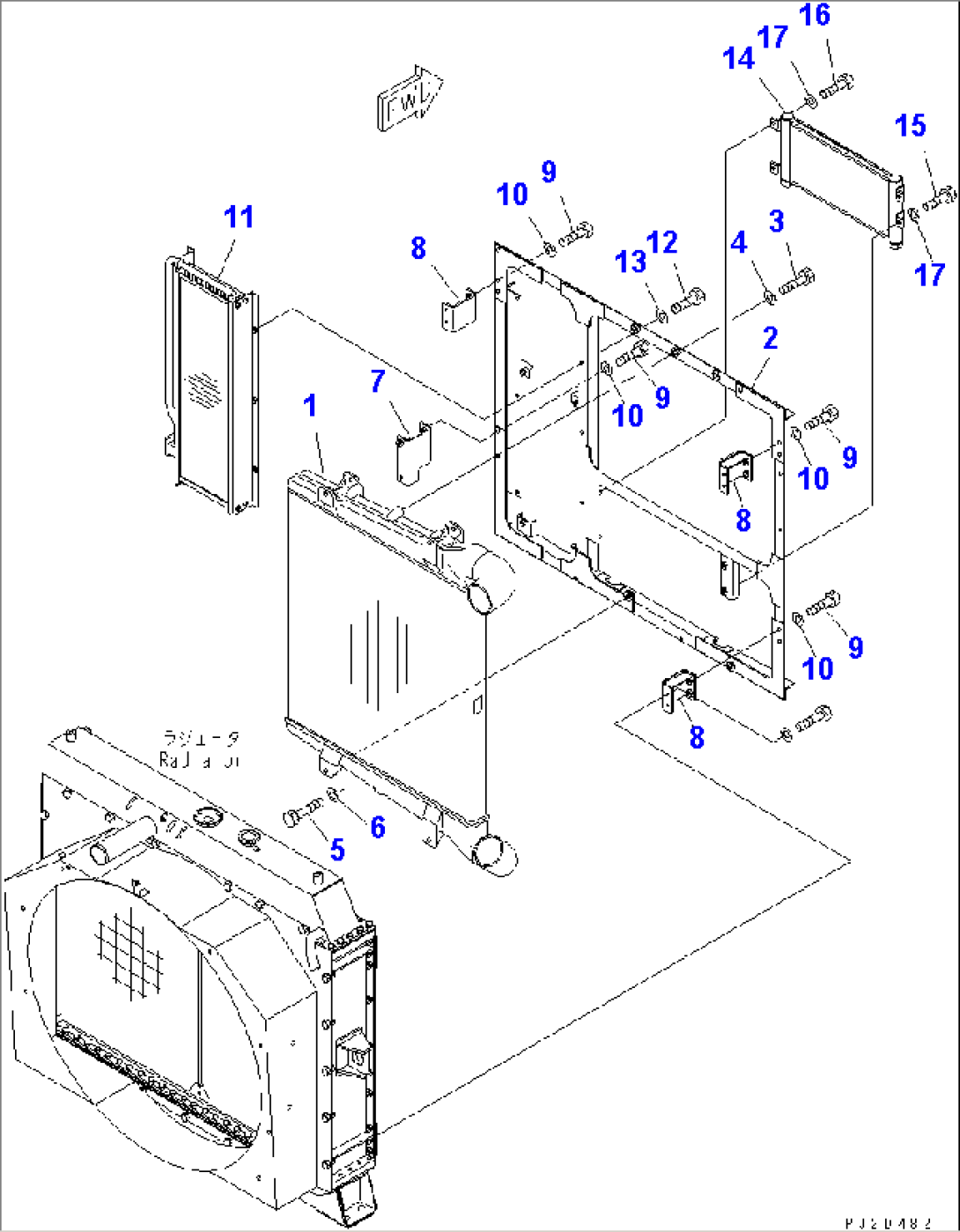

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6240-61-4410 | AFTER COOLER A. | 7001- | |
| 2 | 569-02-81252 | BRACKET | 7001- | |
| 3 | 01010-81235 | BOLT | 7001- | |
| 4 | 01643-31232 | WASHER | 7001- | |
| 5 | 01010-81250 | BOLT | 7001- | |
| 6 | 01643-31232 | WASHER | 7001- | |
| 7 | 569-02-81260 | BRACKET | 7001- | |
| 8 | 569-02-81270 | BRACKET | 7001- | |
| 9 | 01010-81235 | BOLT | 7001- | |
| 10 | 01643-31232 | WASHER | 7001- | |
| 11 | 6240-61-4420 | COOLER ASS'Y,FUEL | 7001- | |
| 12 | 01010-81025 | BOLT | 7001- | |
| 13 | 01643-31032 | WASHER | 7001- | |
| 14 | 423-03-31321 | COOLER | 7001- | |
| 15 | 01010-81025 | BOLT | 7001- | |
| 16 | 01010-81020 | BOLT | 7001- | |
| 17 | 01643-31032 | WASHER | 7001- |
