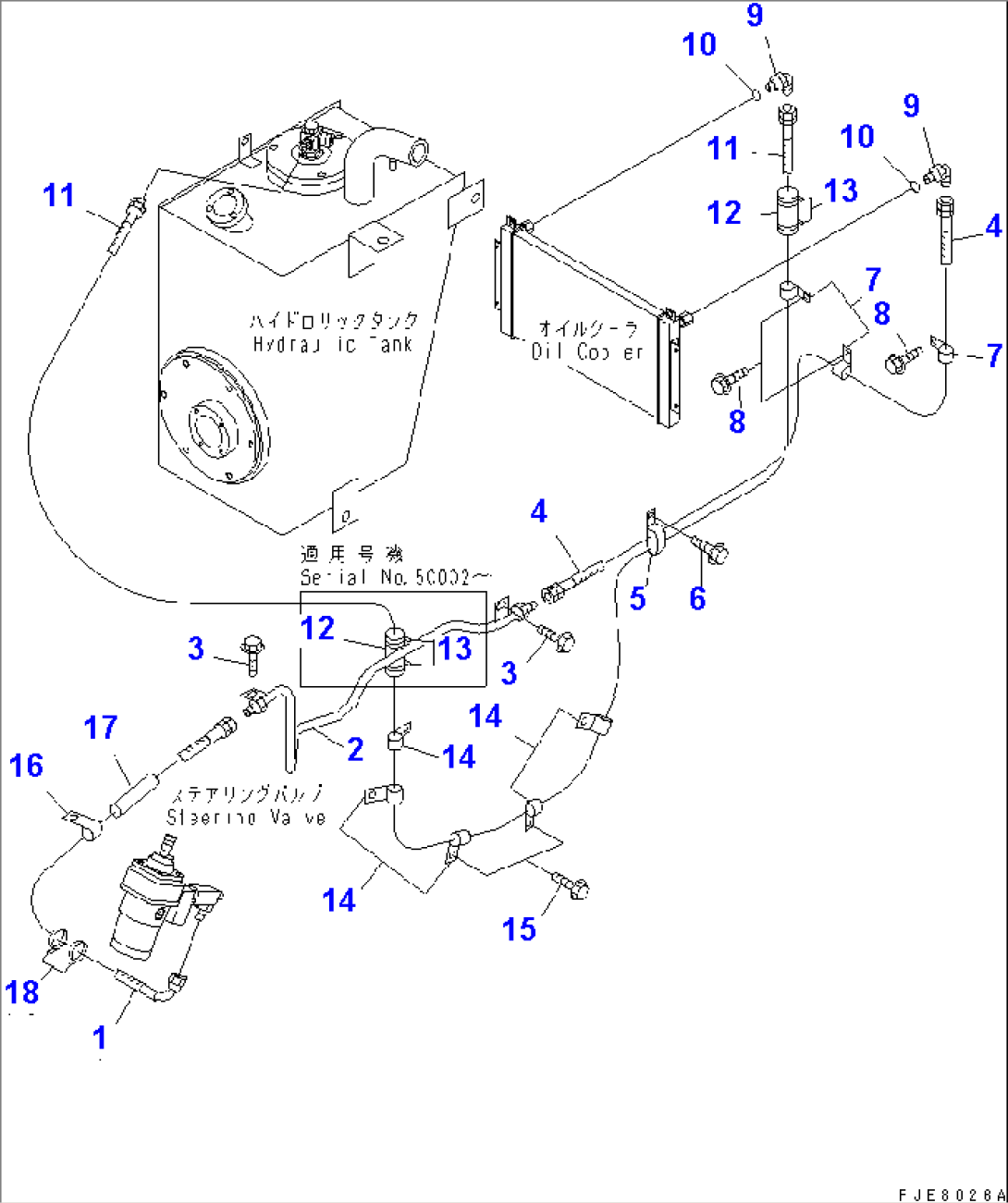

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-25120 | HOSE | 50001- | |
| 2 | 417-62-25110 | TUBE | 50001- | |
| 3 | 01435-01220 | BOLT | 50001- | |
| 4 | 417-62-25140 | HOSE | 50001- | |
| 5 | 198-61-14180 | CLIP | 50001- | |
| 6 | 01435-01016 | BOLT | 50001- | |
| 7 | 04434-52512 | CLIP | 50001- | |
| 8 | 01435-01016 | BOLT | 50001- | |
| 9 | 07235-10522 | ELBOW | 50001- | |
| 10 | 07002-12434 | O-RING | 50001- | |
| 11 | 417-62-25150 | HOSE | 50001- | |
| 12 | 205-62-53780 | COVER | 50002- | |
| 12 | 205-62-53780 | COVER | 50001-50001 | |
| 13 | 08034-20834 | BAND | 50002- | |
| 13 | 08034-20834 | BAND | 50001-53001 | |
| 14 | 04434-52512 | CLIP | 50001- | |
| 15 | 01435-01016 | BOLT | 50001- | |
| 16 | 04434-52712 | CLIP | 50001- | |
| 17 | 417-963-2860 | PROTECTOR | 50001- | |
| 18 | 08034-20519 | BAND | 50001- |
