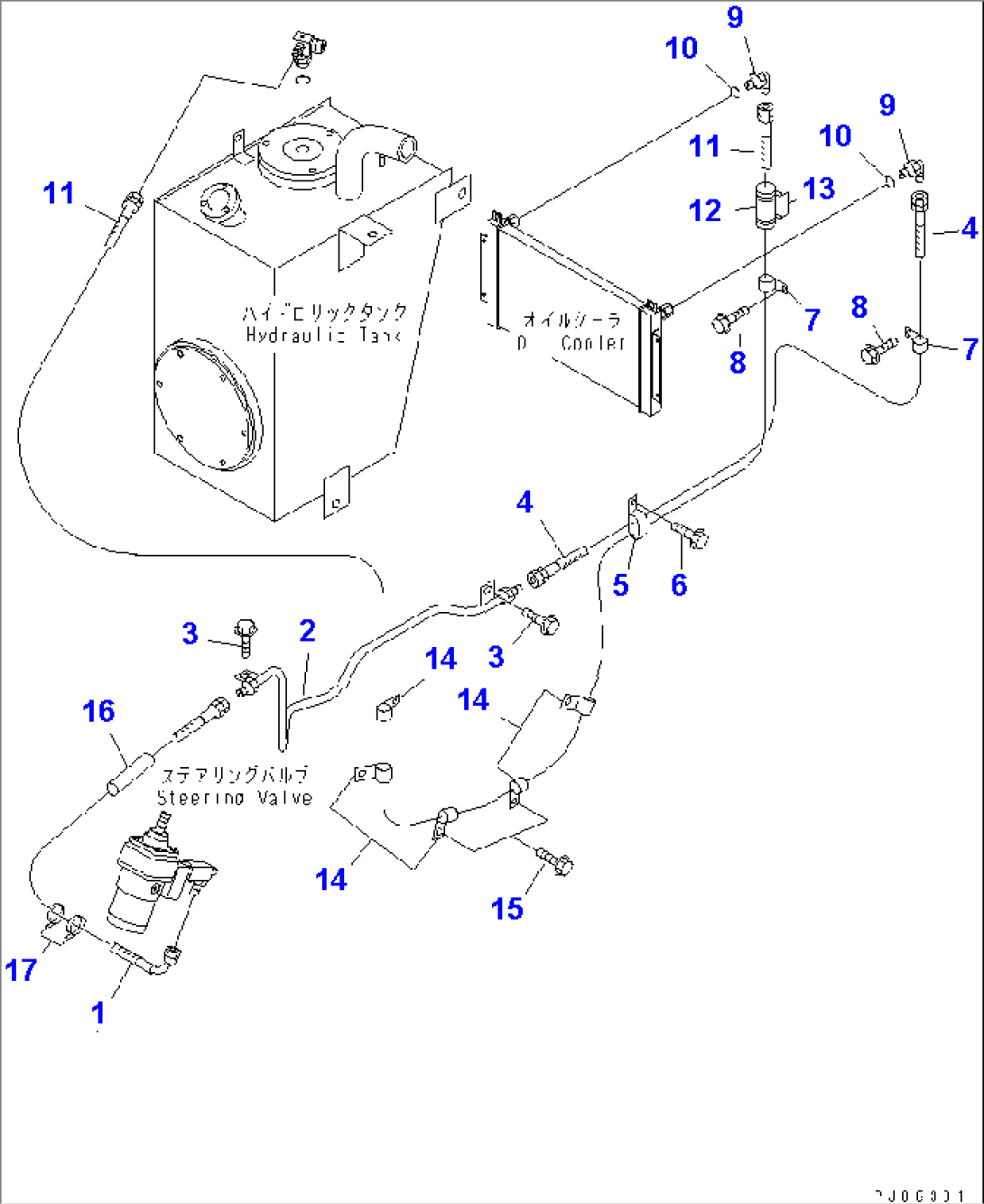

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-25120 | HOSE | 53001-54333 | |
| 2 | 417-62-25110 | TUBE | 53001-54333 | |
| 3 | 01435-01220 | BOLT | 53001-54333 | |
| 4 | 417-62-25140 | HOSE | 53001-54333 | |
| 5 | 198-61-14180 | CLIP | 53001-54333 | |
| 6 | 01435-01016 | BOLT | 53001-54333 | |
| 7 | 04434-52512 | CLIP | 53001-54333 | |
| 8 | 01435-01016 | BOLT | 53001-54333 | |
| 9 | 07235-10522 | ELBOW | 53001-54333 | |
| 10 | 07002-12434 | O-RING | 53001-54333 | |
| 11 | 417-62-25150 | HOSE | 53001-54333 | |
| 12 | 205-62-53780 | COVER | 53001-54333 | |
| 13 | 08034-20834 | BAND | 53001-54333 | |
| 14 | 04434-52512 | CLIP | 53001-54333 | |
| 15 | 01435-01016 | BOLT | 53001-54333 | |
| 16 | 417-96-32860 | PROTECTOR | 53001-54333 | |
| 17 | 08034-20519 | BAND | 53001-54333 |
