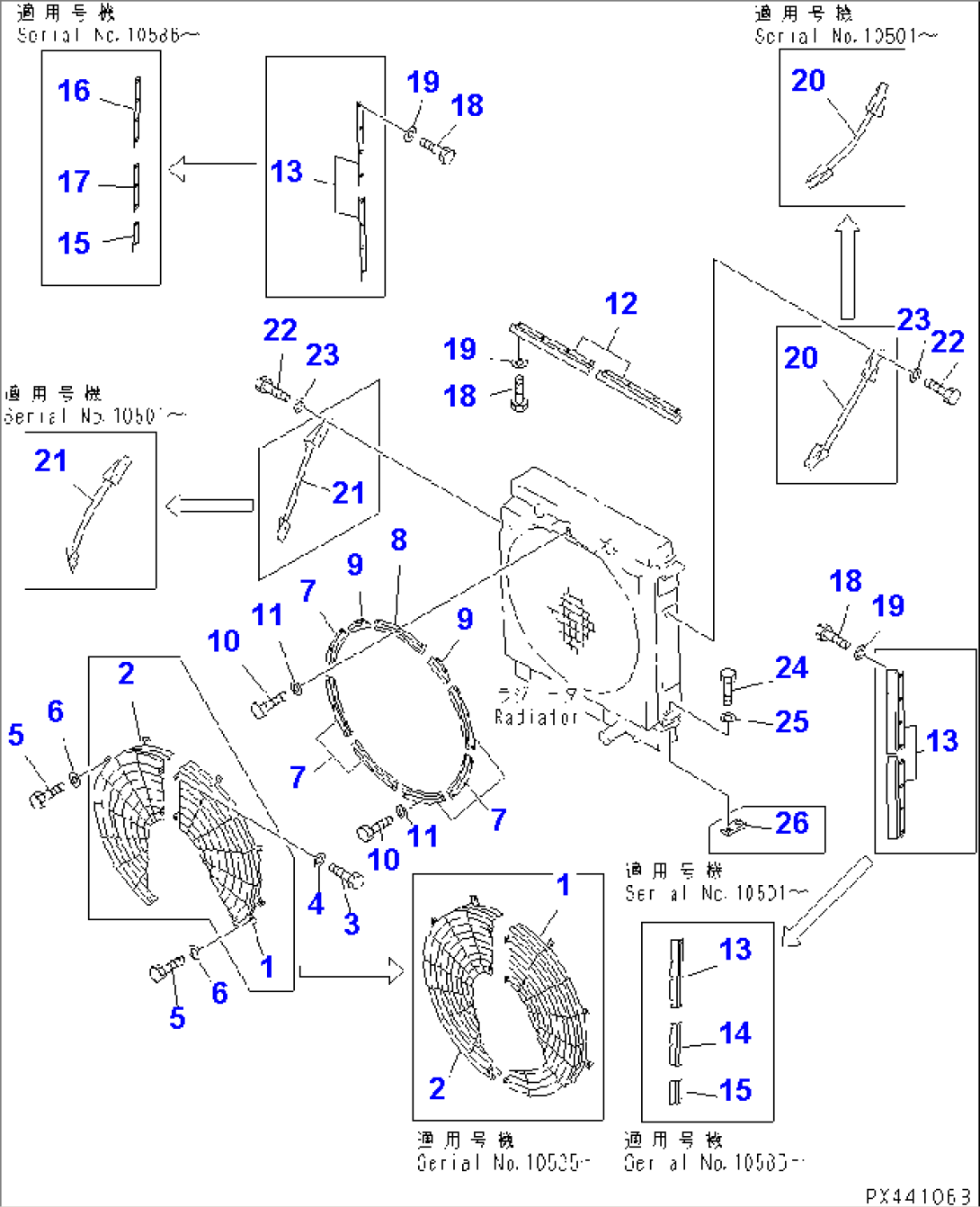

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-12622 | NET,L.H. | 10539- | |
| \0\427-03-12621 | NET,L.H. | 10535-10538 | ||
| 427-03-12610 | NET,L.H. | 10501-10534 | ||
| 427-03-11570 | NET,L.H. | 10001-10499 | ||
| (\2\427-03-11310) | NET,L.H. | (10001-10032) | ||
| 2 | 427-03-11322 | NET,R.H. | 10535- | |
| 427-03-11321 | NET,R.H. | 10501-10534 | ||
| 427-03-11320 | NET,R.H. | 10001-10499 | ||
| 3 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 4 | 01643-31232 | WASHER | 10001-10499 | |
| 5 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 6 | 01643-31232 | WASHER | 10001-10499 | |
| 7 | 427-03-11330 | BAFFLE | 10001-10499 | |
| 8 | 427-03-11340 | BAFFLE | 10001-10499 | |
| 9 | 427-03-11350 | BAFFLE | 10001-10499 | |
| 10 | 01010-51020 | BOLT | 10001-10499 | |
| 11 | 01643-31032 | WASHER | 10001-10499 | |
| 12 | 427-54-11320 | BAFFLE | 10001- | |
| 13 | 427-03-13110 | BAFFLE,L.H. | 10586- | |
| 427-54-11330 | BAFFLE | 10001-10585 | ||
| 14 | 427-03-13130 | BAFFLE,L.H. | 10586- | |
| 15 | 427-03-13150 | BAFFLE | 10586- | |
| 16 | 427-03-13120 | BAFFLE,R.H. | 10586- | |
| 17 | 427-03-13140 | BAFFLE,R.H. | 10586- | |
| 18 | 01435-01016 | BOLT | 10501- | |
| \0\01010-51020 | BOLT | 10001-10499 | ||
| 19 | 01643-31032 | WASHER | 10001-10499 | |
| 20 | 427-03-11370 | SUPPORT,L.H. | 10501- | |
| 427-03-11361 | SUPPORT,L.H. | 10001-10499 | ||
| 21 | 427-03-11380 | SUPPORT,R.H. | 10501- | |
| 427-03-11361 | SUPPORT,R.H. | 10001-10499 | ||
| 22 | 01010-62050 | BOLT | 10001- | |
| 23 | 01643-32060 | WASHER | 10001- | |
| 24 | 01010-62090 | BOLT | 10501- | |
| 01010-32070 | BOLT | 10001-10499 | ||
| 25 | 01643-32060 | WASHER | 10001- | |
| 26 | 427-03-11390 | SPACER | 10501- |
