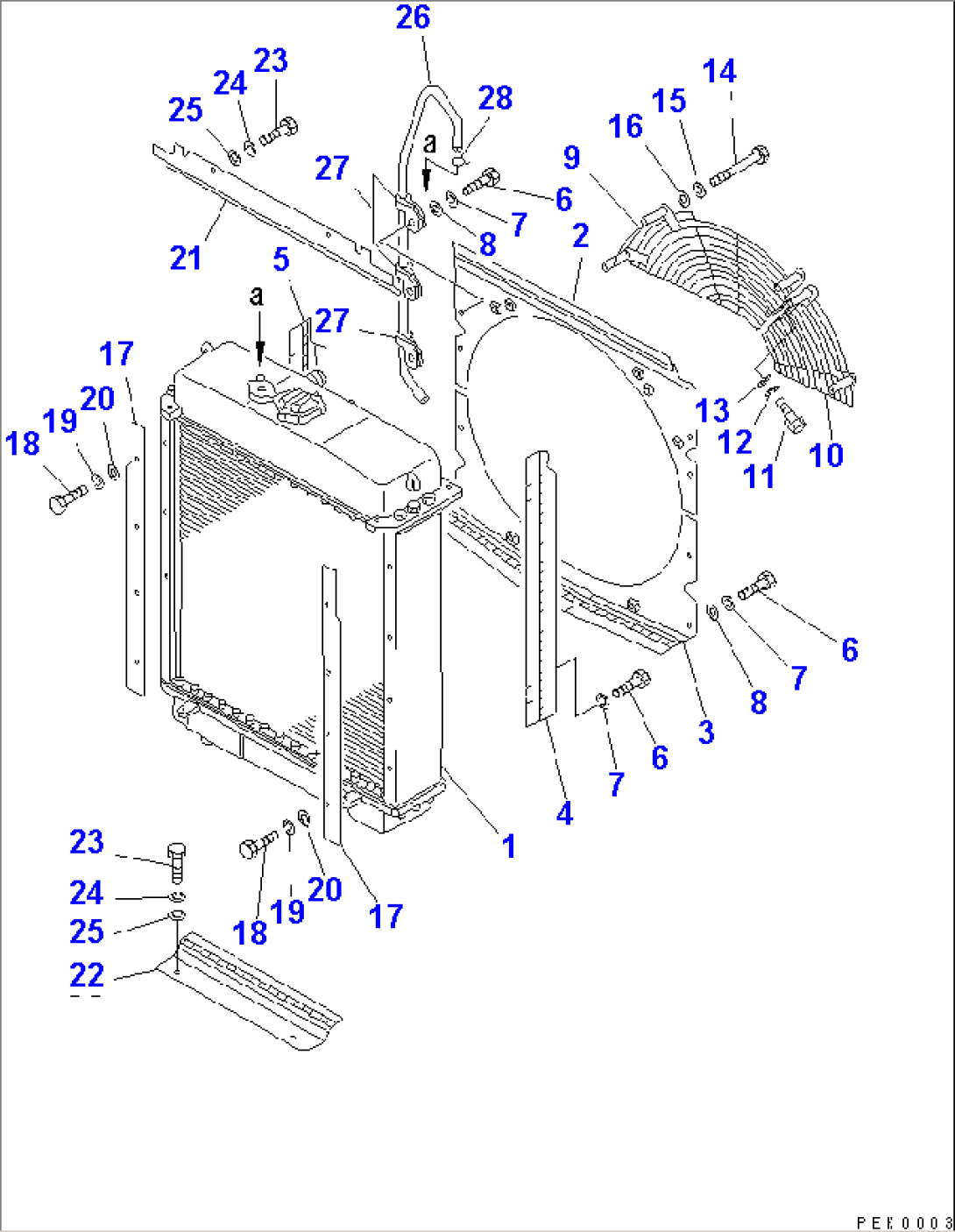

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (134-Z16-0010) | RADIATOR ASS'Y | 81349- | |
| 2 | 130-03-71270 | SHROUD,UPPER | 81349- | |
| 3 | 130-03-71360 | SHROUD,LOWER | 81349- | |
| 4 | 130-03-71280 | COVER,L.H. | 81349- | |
| 5 | 130-03-71290 | COVER,R.H. | 81349- | |
| 6 | 01010-81025 | BOLT | 81349- | |
| 7 | 01602-21030 | WASHER | 81349- | |
| 8 | 01643-31032 | WASHER | 81349- | |
| 9 | 130-03-71341 | GUARD | 81349- | |
| 10 | 130-03-71351 | GUARD | 81349- | |
| 11 | 01010-81025 | BOLT | 81349- | |
| 12 | 01602-21030 | WASHER | 81349- | |
| 13 | 01643-31032 | WASHER | 81349- | |
| 14 | 01011-81005 | BOLT | 81349- | |
| 15 | 01602-21030 | WASHER | 81349- | |
| 16 | 01643-31032 | WASHER | 82458- | |
| 16 | 01643-31032 | WASHER | 81349-82457 | |
| 17 | 130-03-71241 | PLATE | 81349- | |
| 18 | 01010-81025 | BOLT | 81349- | |
| 19 | 01602-21030 | WASHER | 81349- | |
| 20 | 01643-31032 | WASHER | 81349- | |
| 21 | 130-03-71230 | COVER,UPPER | 81349- | |
| 22 | 130-03-71251 | COVER,LOWER | 81349- | |
| 23 | 01010-81025 | BOLT | 81349- | |
| 24 | 01602-21030 | WASHER | 81349- | |
| 25 | 01643-31032 | WASHER | 81349- | |
| 26 | 144-03-15410 | TUBE | 81349- | |
| 27 | 6675-61-7380 | CLIP | 81349- | |
| 28 | 04059-01010 | WIRE | 81349- |
