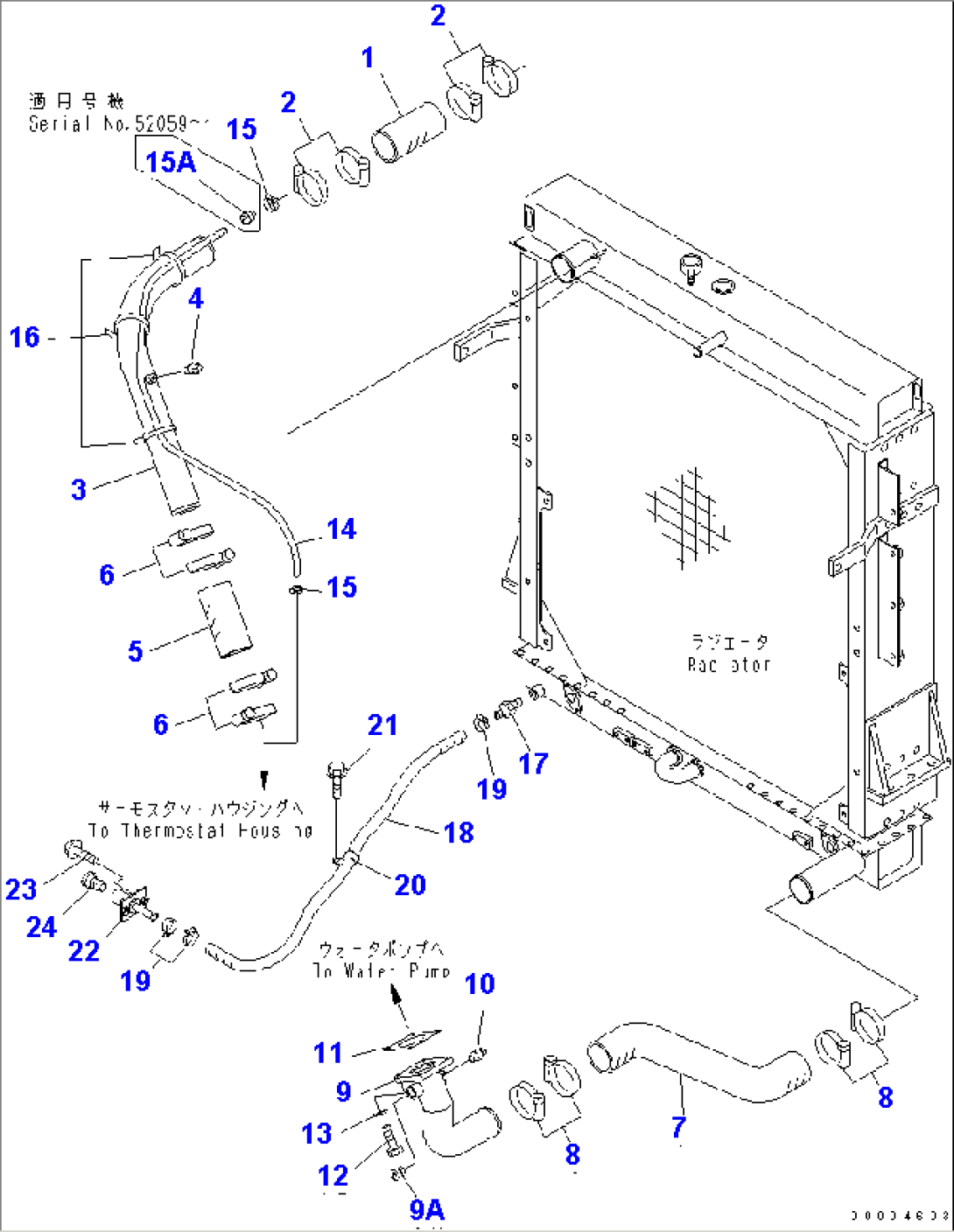

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-27418 | HOSE | 52001- | |
| 2 | 07299-00095 | CLAMP | 52086- | |
| 2 | 07281-01029 | CLAMP | 50001-52085 | |
| 3 | 426-03-22150 | TUBE | 52001- | |
| 4 | 07042-20108 | PLUG | 52001- | |
| 5 | 07260-27418 | HOSE | 52001- | |
| 6 | 07299-00095 | CLAMP | 52086- | |
| 6 | 07281-01029 | CLAMP | 52001-52085 | |
| 7 | 426-03-22141 | HOSE | 52001- | |
| 8 | 07299-00095 | CLAMP | 52086- | |
| 8 | 07281-01029 | CLAMP | 50001-52085 | |
| 9 | 426-03-22521 | TUBE | 52001- | |
| 9A | 07043-70415 | PLUG | 52001- | |
| 10 | 07042-20108 | PLUG | 52001- | |
| 11 | 6693-62-9242 | GASKET | 50001- | |
| 12 | 01010-81030 | BOLT | 50001- | |
| 13 | 01643-51032 | WASHER | 50001- | |
| 14 | 09483-40311 | HOSE | 52001- | |
| 15 | 07281-00197 | CLAMP | 50001- | |
| 15A | 426-03-21470 | TUBE | 50411- | |
| 16 | 08034-20536 | BAND | 50001- | |
| 17 | 6137-81-3231 | NIPPLE | 50001- | |
| 18 | 427-03-11510 | HOSE | 52001- | |
| 19 | 07281-00359 | CLAMP,HOSE | 50001- | |
| 20 | 04434-52712 | CLIP | .- | |
| 21 | 01435-01016 | BOLT | 50001- | |
| 22 | 426-01-11231 | TUBE | 50001- | |
| 23 | 01435-01025 | BOLT | 50001- | |
| 24 | 424-01-11110 | PLUG | 50001- |
