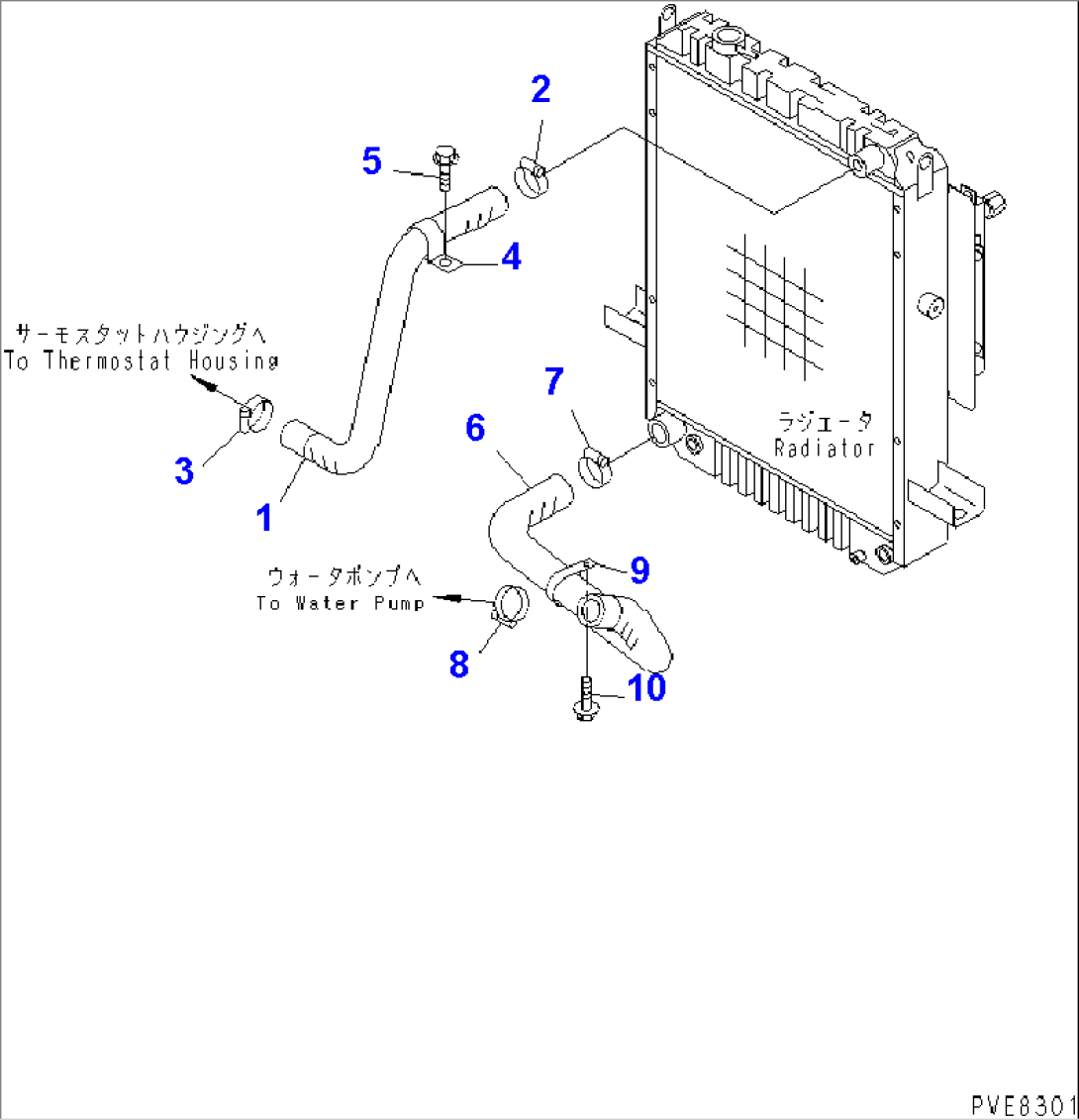

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-U47-2350 | HOSE | 53001-54333 | |
| 2 | 07289-00045 | CLAMP,HOSE | 53001-54333 | |
| 3 | 07289-00055 | CLAMP,HOSE | 53001-54333 | |
| 4 | 19M-60-12720 | CLIP | 53001-54333 | |
| 5 | 01435-01020 | BOLT | 53001-54333 | |
| 6 | 417-U47-2360 | HOSE | 53001-54333 | |
| 7 | 07289-00055 | CLAMP | 53001-54333 | |
| 8 | 07289-00070 | CLAMP | 53001-54333 | |
| 9 | 11T-03-11310 | CLIP | 53001-54333 | |
| 10 | 01435-00816 | BOLT | 53001-54333 |
