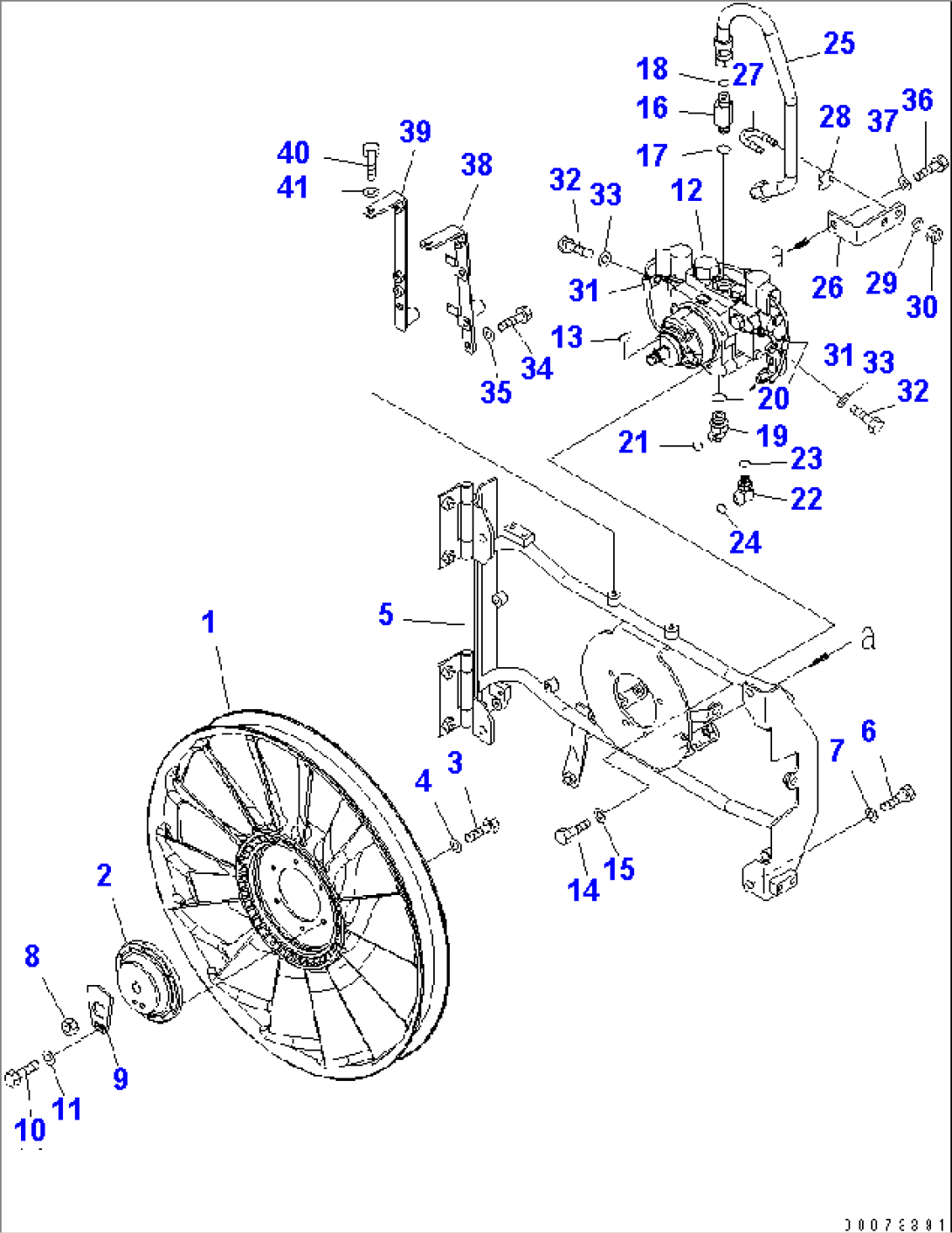

| Item | Part No. | Part Name | Qty | Serial No. |
| 418-03-43210 | FAN ASS'Y | 70001- | ||
| 1 | 418-03-33420 | FAN,RING | 70001- | |
| 2 | 11Y-03-32211 | HUB | 70001- | |
| 3 | 01010-80820 | BOLT | 70001- | |
| 4 | 01643-30823 | WASHER | 70001- | |
| 5 | 418-03-43770 | BRACKET | 70001- | |
| 5 | 416-09-12310 | HINGE (WELDED) | 70001- | |
| 6 | 01010-81020 | BOLT | 70001- | |
| 7 | 01643-31032 | WASHER | 70001- | |
| 8 | 01583-11811 | NUT | 70001- | |
| 9 | 124-03-63250 | LOCK | 70001- | |
| 10 | 01010-81020 | BOLT | 70001- | |
| 11 | 01643-31032 | WASHER | 70001- | |
| 12 | (708-7R-00700) | MOTOR ASS'Y,(SEE FIG. Y1642-01A0) | 70001- | |
| 13 | 04010-00519 | KEY | 70001- | |
| 14 | 01010-81035 | BOLT | 70001- | |
| 15 | 01643-31032 | WASHER | 70001- | |
| 16 | 427-43-28660 | UNION | 70001- | |
| 17 | 07002-12034 | O-RING | 70001- | |
| 18 | 02896-11012 | O-RING | 70001- | |
| 19 | 02783-10422 | ELBOW | 70001- | |
| 20 | 07002-12034 | O-RING | 70001- | |
| 21 | 02896-11012 | O-RING | 70001- | |
| 22 | 22J-62-25121 | ELBOW | 70001- | |
| 23 | 07002-11423 | O-RING | 70001- | |
| 24 | 02896-11009 | O-RING | 70001- | |
| 25 | 418-03-43830 | TUBE | 70001- | |
| 26 | 418-03-43840 | PLATE | 70001- | |
| 27 | 07283-32244 | CLIP | 70001- | |
| 28 | 07283-52232 | SEAT | 70001- | |
| 29 | 01643-31032 | WASHER | 70001- | |
| 30 | 01597-01009 | NUT | 70001- | |
| 31 | 04434-50610 | CLIP | 70001- | |
| 32 | 01010-81020 | BOLT | 70001- | |
| 33 | 01643-31032 | WASHER | 70001- | |
| 34 | 01010-81025 | BOLT | 70001- | |
| 35 | 01643-31032 | WASHER | 70001- | |
| 36 | 01010-81020 | BOLT | 70001- | |
| 37 | 01643-31032 | WASHER | 70001- | |
| 38 | 418-03-43850 | BRACKET | 70001- | |
| 39 | 418-03-43860 | BRACKET | 70001- | |
| 40 | 01010-81020 | BOLT | 70001- | |
| 41 | 01643-31032 | WASHER | 70001- |
