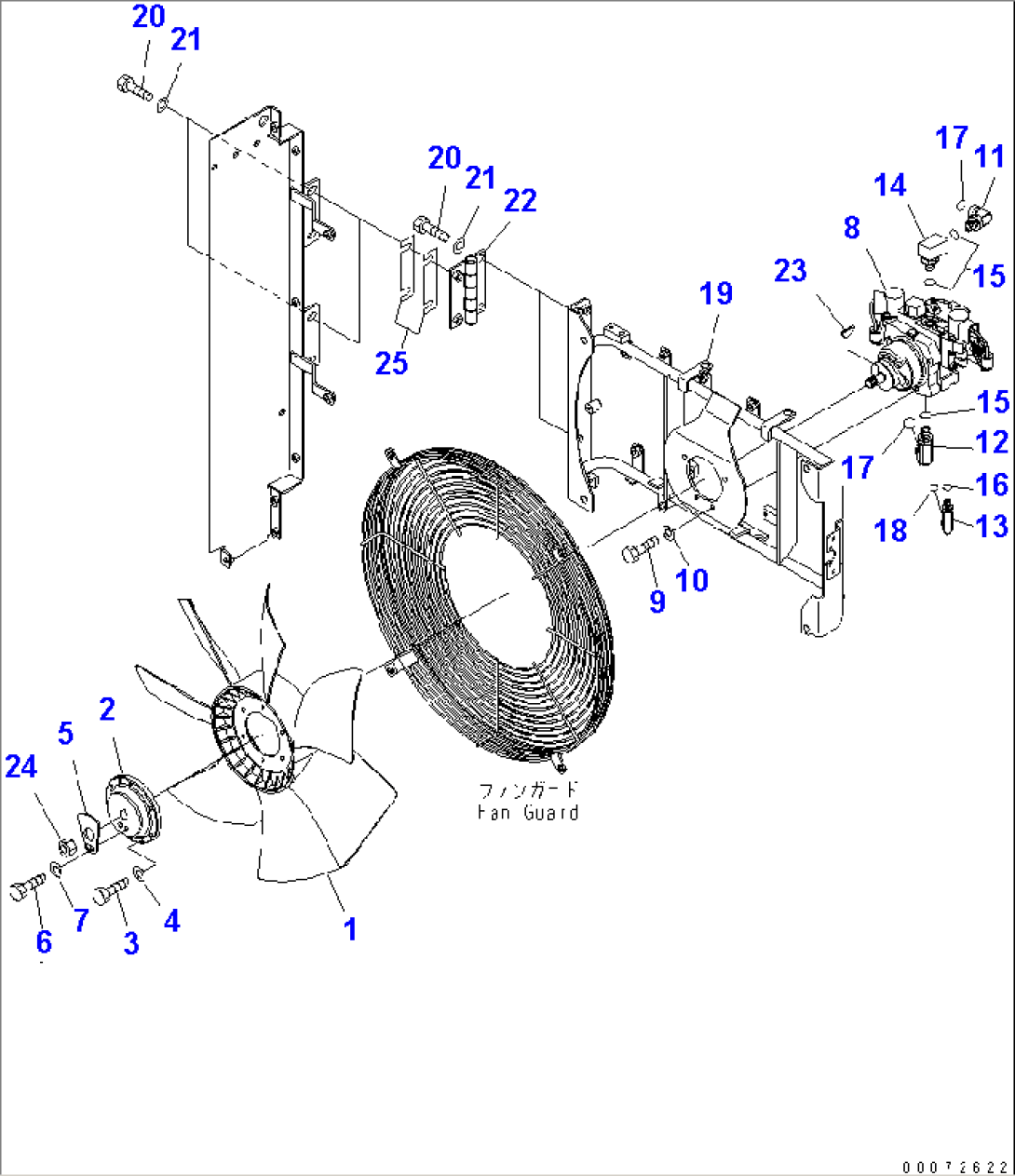

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-03-33220 | FAN | 70001- | |
| 2 | 11Y-03-32211 | HUB | 70001- | |
| 3 | 01010-80820 | BOLT | 70001- | |
| 4 | 01643-30823 | WASHER | 70001- | |
| 5 | 124-03-63250 | LOCK | 70001- | |
| 6 | 01010-81020 | BOLT | 70001- | |
| 7 | 01643-31032 | WASHER | 70001- | |
| 8 | (708-7R-00710) | MOTOR ASS'Y | 70001- | |
| 9 | 01010-81035 | BOLT | 70001- | |
| 10 | 01643-31032 | WASHER | 70001- | |
| 11 | 02782-10516 | ELBOW | 70001- | |
| 12 | 02782-10518 | ELBOW | 70001- | |
| 13 | 02782-10312 | ELBOW | 70001- | |
| 14 | 419-03-41110 | ELBOW | 70001- | |
| 15 | 07002-12034 | O-RING | 70001- | |
| 16 | 07002-11423 | O-RING | 70001- | |
| 17 | 02896-11015 | O-RING | 70001- | |
| 18 | 02896-11009 | O-RING | 70001- | |
| 19 | 419-03-48657 | BRACKET | 70001- | |
| 20 | 01010-D1230 | BOLT | 70001- | |
| 21 | 01643-71232 | WASHER | 70001- | |
| 22 | 419-03-48580 | HINGE | 70001- | |
| 23 | 04010-00519 | KEY | 70001- | |
| 24 | 01583-11811 | NUT | 70001- | |
| 25 | 418-03-33190 | SHIM | 70001- |
