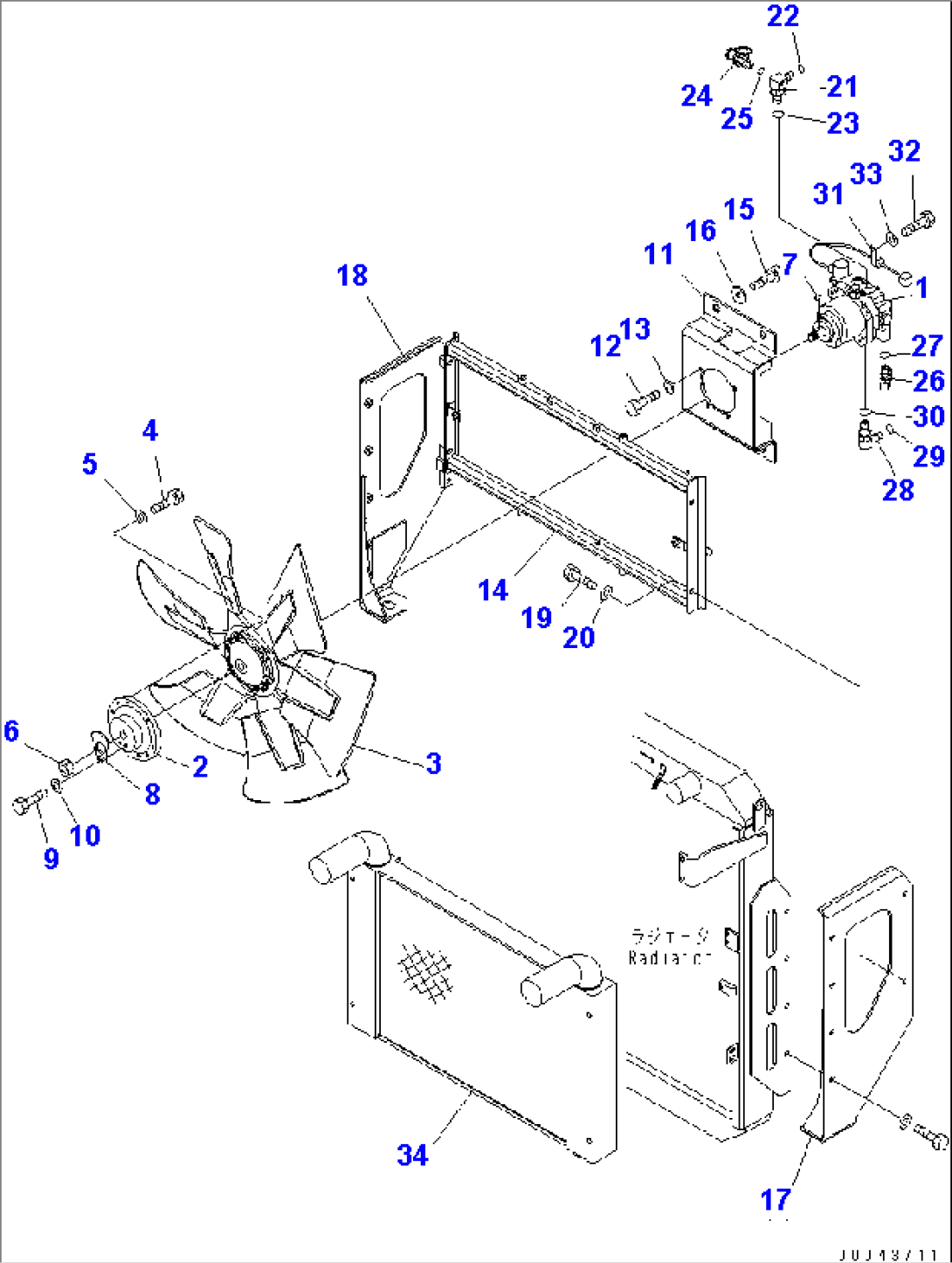

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (708-7S-00530) | MOTOR ASS'Y,FAN | 61164- | |
| 2 | 423-03-31710 | BOSS | 61164- | |
| 3 | 600-645-7800 | FAN | 61164- | |
| 4 | 01010-81030 | BOLT | 60479- | |
| 5 | 01643-31032 | WASHER | 60479- | |
| 6 | 01583-12012 | NUT | 61164- | |
| 7 | 04010-00722 | KEY | 61164- | |
| 8 | 154-03-72270 | LOCK | 61164- | |
| 9 | 01010-81020 | BOLT | 61164- | |
| 10 | 01643-31032 | WASHER | 61164- | |
| 11 | 421-03-31242 | BRACKET | 60479- | |
| 12 | 01010-81230 | BOLT | 60479- | |
| 13 | 01643-31232 | WASHER | 60479- | |
| 14 | 421-03-31234 | BRACKET | 60479- | |
| 15 | 01010-81230 | BOLT | 60479- | |
| 16 | 419-43-17920 | WASHER | 60479- | |
| 17 | 421-03-31213 | BRACKET,L.H. | 60479- | |
| 18 | 421-03-31223 | BRACKET,R.H. | 60479- | |
| 19 | 01010-81225 | BOLT | 60479- | |
| 20 | 01643-31232 | WASHER | 60479- | |
| 21 | 421-09-31110 | ELBOW | 60479- | |
| 22 | 02896-11015 | O-RING | 60479- | |
| 23 | 07002-12434 | O-RING | 60479- | |
| 24 | 799-101-5220 | NIPPLE | 60479- | |
| 25 | 07002-11023 | O-RING | 60479- | |
| 26 | 421-62-35172 | ELBOW | 60479- | |
| 27 | 07002-11823 | O-RING | 60479- | |
| 28 | 02782-10522 | ELBOW | 60479- | |
| 29 | 02896-11015 | O-RING | 60479- | |
| 30 | 07002-12434 | O-RING | 60479- | |
| 31 | 04434-50610 | CLIP | 60479- | |
| 32 | 01010-81020 | BOLT | 60479- | |
| 33 | 01643-31032 | WASHER | 60479- | |
| 34 | 6156-61-5100 | AFTERCOOLER ASS'Y | 60479- |
