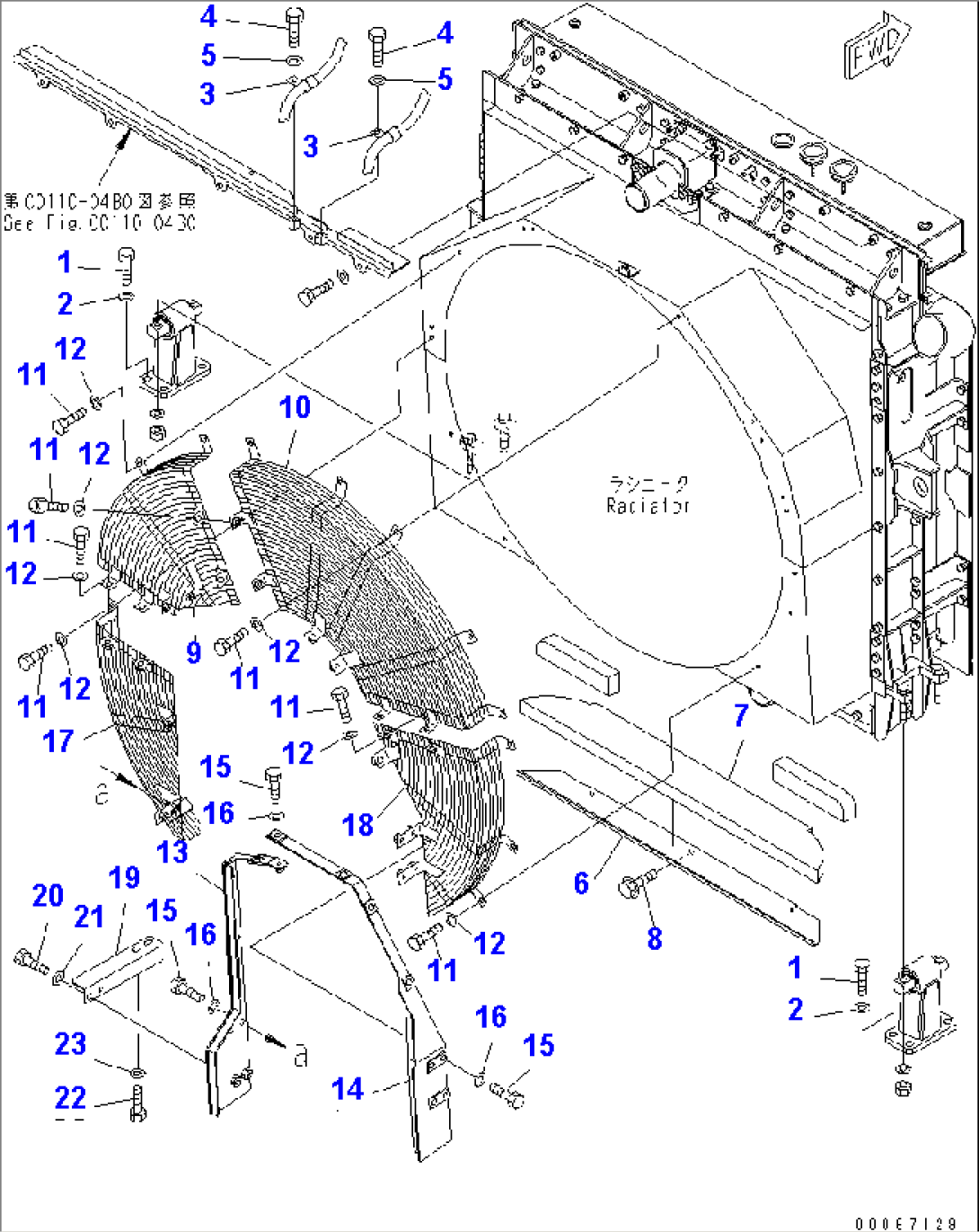

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81645 | BOLT | 10271- | |
| 2 | 01643-31645 | WASHER | 10271- | |
| 3 | 04434-51310 | CLIP | 10271- | |
| 4 | 01010-81020 | BOLT | 10271- | |
| 5 | 01643-31032 | WASHER | 10271- | |
| 6 | 569-03-88730 | BRACKET | 10271- | |
| 7 | 569-03-88740 | SEAL | 10271- | |
| 8 | 01435-01016 | BOLT | 10271- | |
| 9 | 569-03-88511 | NET,L.H. | 10271- | |
| 10 | 569-03-88521 | NET,R.H. | 10271- | |
| 11 | 01010-81230 | BOLT | 10271- | |
| 12 | 01643-31232 | WASHER | 10271- | |
| 13 | 569-03-88534 | COVER | 10271- | |
| 14 | 569-03-88542 | COVER | 10271- | |
| 15 | 01010-81230 | BOLT | 10271- | |
| 16 | 01643-31232 | WASHER | 10271- | |
| 17 | 569-03-88550 | NET,L.H. | 10271- | |
| 18 | 569-03-88560 | NET,R.H. | 10271- | |
| 19 | 569-03-88932 | BRACKET | 10534- | |
| 19 | \0\569-03-88931 | BRACKET | 10271-10533 | |
| 20 | 01010-81230 | BOLT | 10271- | |
| 21 | 01643-31232 | WASHER | 10271- | |
| 22 | 01010-81225 | BOLT | 10271- | |
| 23 | 01643-31232 | WASHER | 10271- |
