| Item | Part No. | Part Name | Qty | Serial No. |

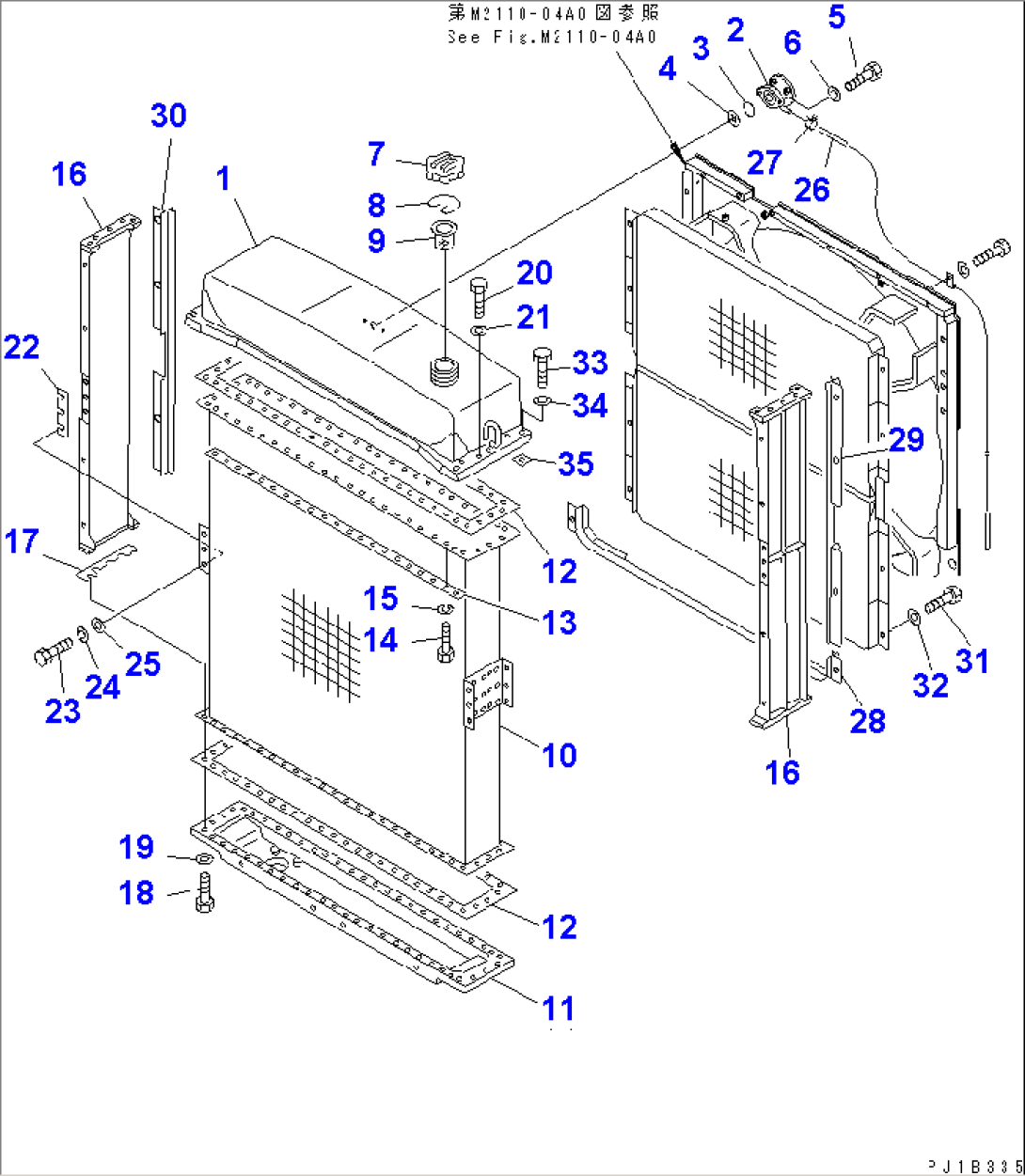

| 196-03-00072 | RADIATOR ASS'Y | 31586-@ | ||
| 1 | 175-03-31118 | TANK | 31586-@ | |
| 2 | 154-03-11682 | VALVE | 31586-@ | |
| 3 | 07000-13045 | O-RING | 31586-@ | |
| 4 | 175-03-32570 | SCREEN | 31586-@ | |
| 5 | 01010-81025 | BOLT | 31586-@ | |
| 6 | 01602-21030 | WASHER | 31586-@ | |
| 7 | 07053-10000 | CAP | 31586-@ | |
| 8 | 07057-03271 | RING,SNAP | 31586-@ | |
| 9 | 07056-00048 | STRAINER | 31586-@ | |
| 10 | 175-03-32260 | CORE | 31586-@ | |
| 11 | 175-03-31880 | TANK | 31586-@ | |
| 12 | 175-03-31562 | PACKING | 31586-@ | |
| 13 | 175-03-31180 | PLATE | 31586-@ | |
| 14 | 01010-81025 | BOLT | 31586-@ | |
| 15 | 01602-21030 | WASHER | 31586-@ | |
| 16 | 175-03-31690 | SHIELD | 31586-@ | |
| 17 | 175-03-00193 | SHIM ASS'Y | 31586-@ | |
| 17 | \6\ | SHIM, 1.0MM | 31586-@ | |
| 17 | \6\ | SHIM, 0.5MM | 31586-@ | |
| 18 | 01010-81245 | BOLT | 31586-@ | |
| 19 | 01643-31232 | WASHER | 31586-@ | |
| 20 | 01010-81260 | BOLT | 31586-@ | |
| 21 | 01643-31232 | WASHER | 31586-@ | |
| 22 | 175-03-31490 | SHIM, 0.6MM | 31586-@ | |
| 23 | 01010-81020 | BOLT | 31586-@ | |
| 24 | 01602-21030 | WASHER | 31586-@ | |
| 25 | 01640-21016 | WASHER | 31586-@ | |
| 26 | 175-03-31390 | TUBE | 31586-@ | |
| 27 | 07285-00095 | CLIP | 31586-@ | |
| 28 | 175-03-31460 | PLATE | 31586-@ | |
| 29 | 175-03-31471 | BRACKET,L.H. | 31586-@ | |
| 30 | 175-03-31481 | BRACKET,R.H. | 31586-@ | |
| 31 | 01010-81025 | BOLT | 31586-@ | |
| 32 | 01643-31032 | WASHER | 31586-@ | |
| 33 | 01010-81860 | BOLT | 31586-@ | |
| 34 | 01643-31845 | WASHER | 31586-@ | |
| 35 | 195-03-11570 | SHIM, 1.0MM | 31586-@ |
