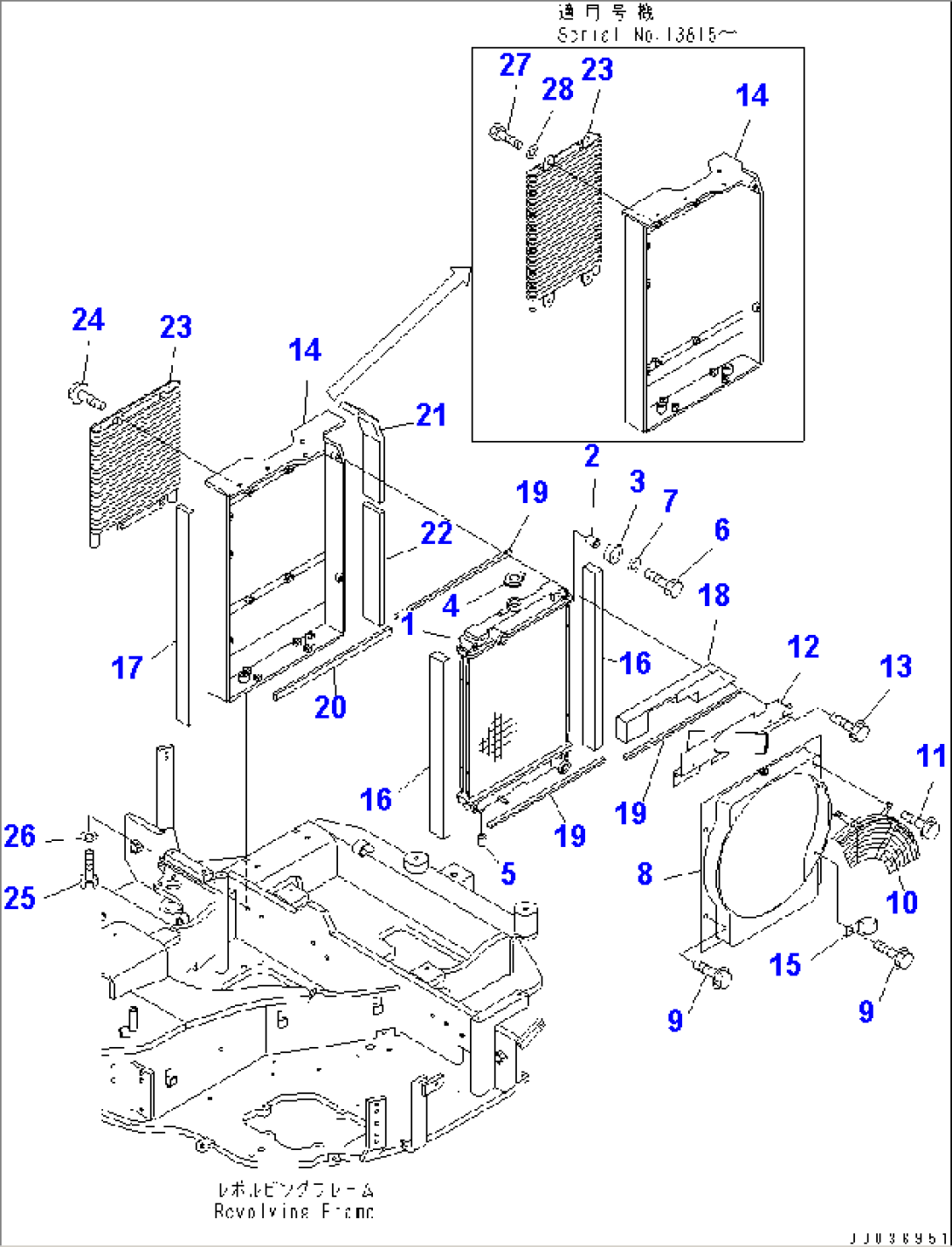

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21U-03-31111 | RADIATOR | 10001- | |
| 2 | 21U-03-31190 | COLLAR | 10001- | |
| 3 | 21U-03-31290 | CUSHION | 10001- | |
| 4 | 20T-03-81150 | CAP | 10001- | |
| 5 | 21U-03-31320 | CUSHION | 10001- | |
| 6 | 01010-80825 | BOLT | 10001- | |
| 7 | 01643-30823 | WASHER | 10001- | |
| 8 | 21U-03-31123 | SHROUD | 10001- | |
| 9 | 01435-20814 | BOLT | 10001- | |
| 10 | 22L-03-18110 | NET,WIRE | 10001- | |
| 11 | 01435-20814 | BOLT | 10001- | |
| 12 | 21U-03-31313 | BRACKET | 10001- | |
| 13 | 01435-20816 | BOLT | 10001- | |
| 14 | 21U-03-31153 | FRAME | 13815- | |
| 14 | 21U-03-31152 | FRAME | 13587-13814 | |
| 14 | \0\21U-03-31151 | FRAME | 10001-13586 | |
| 15 | 196-916-1590 | CLIP | 10001- | |
| 16 | 21U-03-31210 | SHEET | 10001- | |
| 17 | 21U-03-31220 | SHEET | 10001- | |
| 18 | 21U-03-31231 | SHEET | 10001- | |
| 19 | 21U-03-31240 | SHEET | 10001- | |
| 20 | 21U-03-31251 | SHEET | 10001- | |
| 21 | 21U-03-31261 | SHEET | 10001- | |
| 22 | 21U-03-31331 | SHEET | 10001- | |
| 23 | 21U-03-31132 | OIL COOLER ASS'Y | 13815- | |
| 23 | 21U-03-31131 | OIL COOLER ASS'Y | 10001-13814 | |
| 24 | 01435-20814 | BOLT | 10001-13814 | |
| 25 | 01010-81035 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- | |
| 27 | 01010-80816 | BOLT | 13815- | |
| 28 | 01643-30823 | WASHER | 13815- |
