| Item | Part No. | Part Name | Qty | Serial No. |

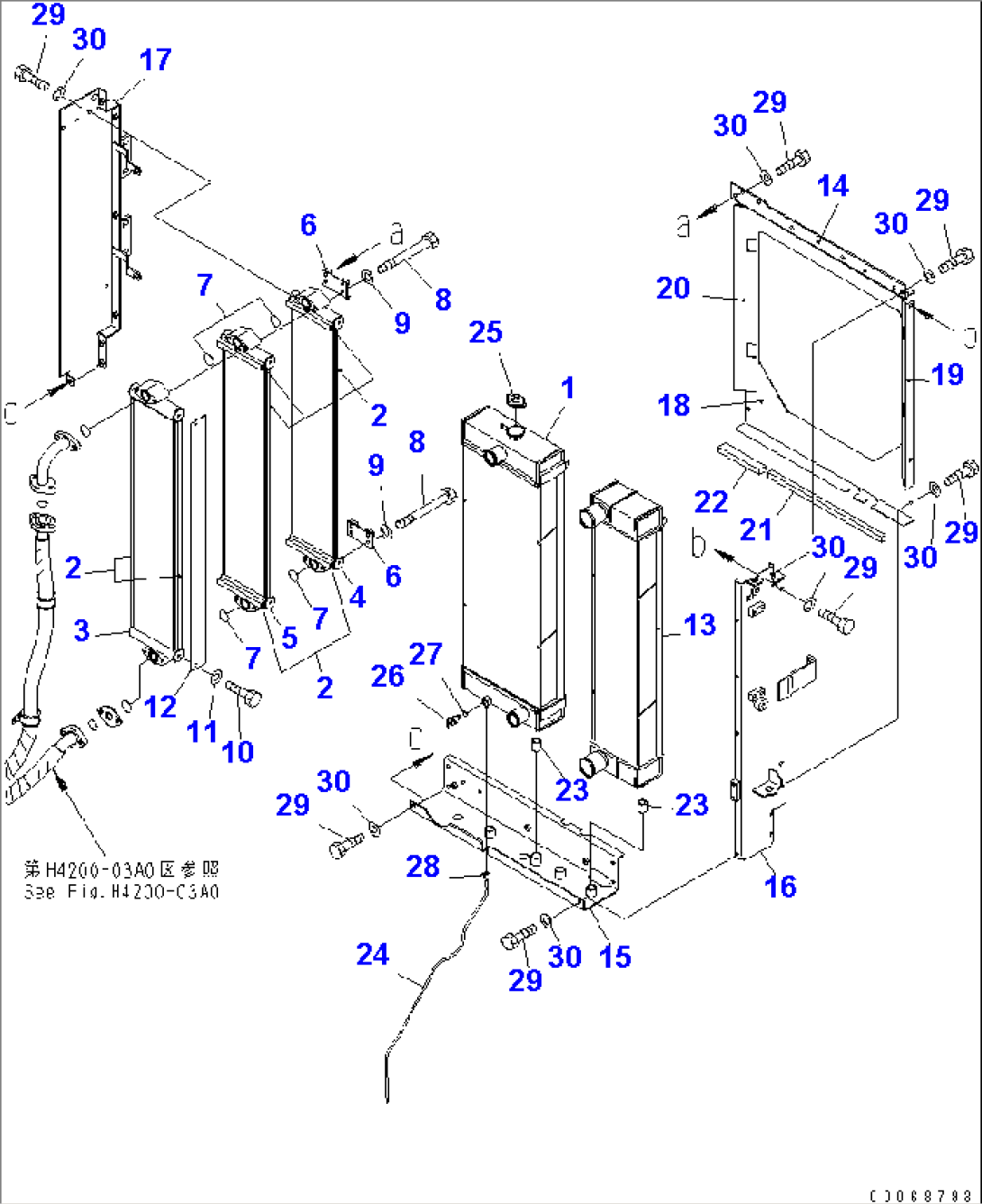

| 419-03-48101 | RADIATOR ASS'Y | 70001- | ||
| 1 | 419-03-48110 | RADIATOR | 70001- | |
| 2 | 419-03-48120 | OIL COOLER ASS'Y | 70001- | |
| 3 | 419-03-48510 | OIL COOLER | 70001- | |
| 4 | 419-03-48520 | OIL COOLER | 70001- | |
| 5 | 419-03-48540 | OIL COOLER | 70001- | |
| 6 | 419-03-48530 | PLATE | 70001- | |
| 7 | 07000-13035 | O-RING | 70001- | |
| 8 | 01011-81040 | BOLT | 70001- | |
| 9 | 01643-31032 | WASHER | 70001- | |
| 10 | 01010-81025 | BOLT | 70001- | |
| 11 | 01643-31032 | WASHER | 70001- | |
| 12 | 419-03-48550 | PLATE | 70001- | |
| 13 | 419-03-48130 | AIR COOLER | 70001- | |
| 14 | 419-03-48411 | PLATE | 70001- | |
| 15 | 419-03-48421 | FRAME | 70001- | |
| 16 | 419-03-48431 | FRAME | 70001- | |
| 17 | 419-03-48441 | FRAME | 70001- | |
| 18 | 419-03-48451 | SHROUD | 70001- | |
| 19 | 419-03-48461 | PLATE | 70001- | |
| 20 | 419-03-48471 | PLATE | 70001- | |
| 21 | 419-03-48750 | PACKING | 70001- | |
| 22 | 419-03-48760 | PACKING | 70001- | |
| 23 | 418-03-31480 | CUSHION | 70001- | |
| 24 | 419-03-48560 | HOSE | 70001- | |
| 25 | 416-S14-2270 | CAP | 70001- | |
| 26 | 205-03-62660 | PLUG | 70001- | |
| 27 | 07000-11007 | O-RING | 70001- | |
| 28 | 20Y-03-11330 | CLIP | 70001- | |
| 29 | 01010-81020 | BOLT | 70001- | |
| 30 | 01643-31032 | WASHER | 70001- |
