| Item | Part No. | Part Name | Qty | Serial No. |

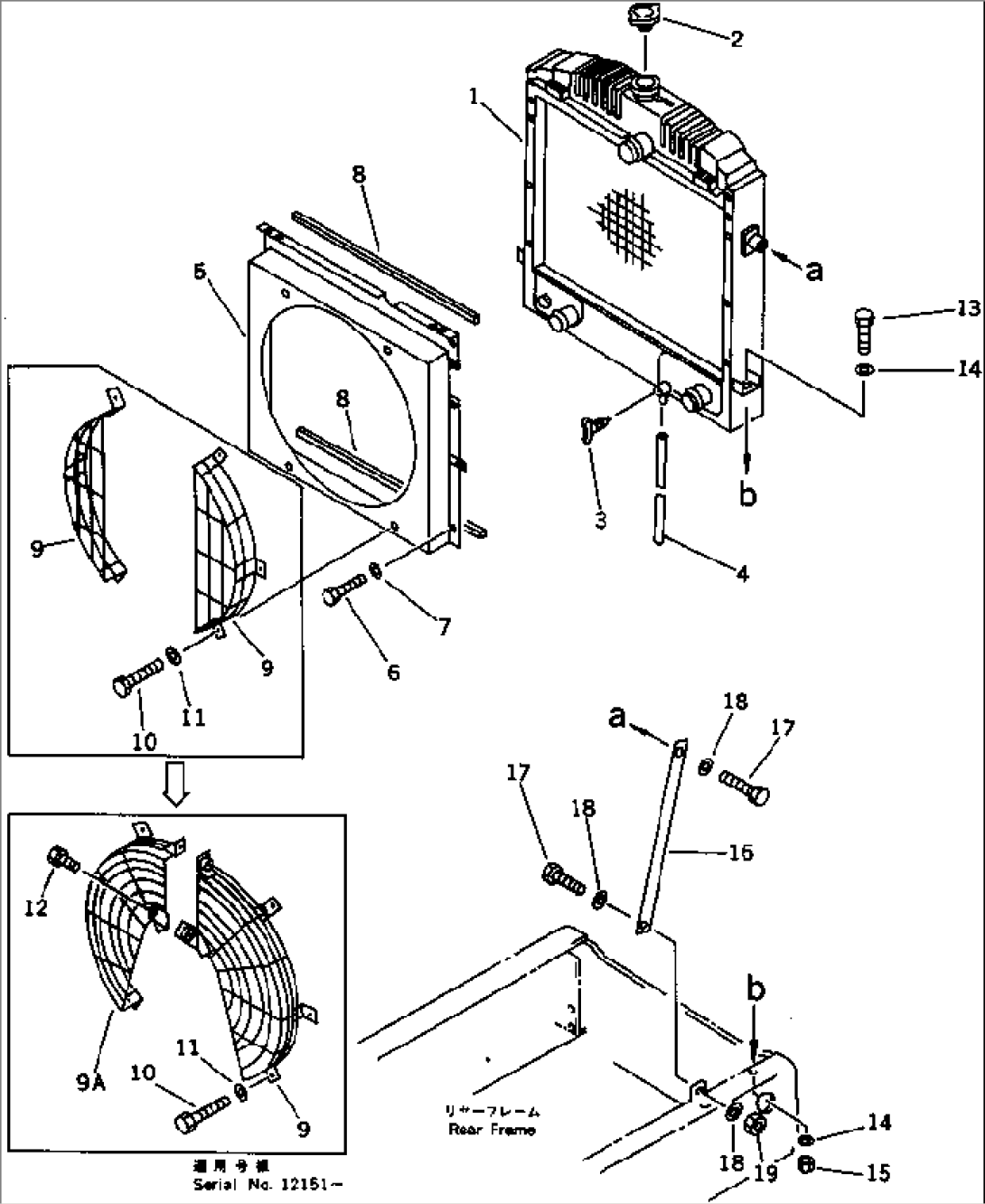

| 417-Z92-1310 | RADIATOR ASS'Y | 12001- | ||
| 1 | 417-Z92-1390 | CORE ASS'Y | 12001- | |
| 1 | 417-Z92-1320 | FRAME | 12001- | |
| 1 | 417-U46-1230 | SHEET | 12001- | |
| 1 | 417-U46-1240 | CLAMP | 12001- | |
| 1 | 417-U46-1250 | SHEET | 12001- | |
| 1 | 417-U46-1260 | SHIM | 12001- | |
| 2 | 23S-03-11150 | CAP ASS'Y | 12001- | |
| 3 | 419-03-11340 | VALVE,DRAIN | 12001- | |
| 4 | 416-03-11150 | HOSE | 12001- | |
| 5 | 417-Z92-1330 | SHROUD | 12001- | |
| 6 | 01010-50825 | BOLT | 12001- | |
| 7 | 01602-20823 | WASHER,SPRING | 12001- | |
| 8 | 417-U46-1280 | PACKING | 12001- | |
| 9 | 417-03-11120 | GUARD,FAN, L.H. | 12151- | |
| 9 | \3\417-03-10220 | GUARD,FAN | 12001-12150 | |
| (417-03-11120,417-03-11130, | ||||
| 01435-01020(2)) | ||||
| 9A | 417-03-11130 | GUARD,FAN, R.H. | 12151- | |
| 10 | 01010-51020 | BOLT | 12001- | |
| 11 | 01643-31032 | WASHER | 12001- | |
| 12 | 01435-01020 | BOLT | 12001- | |
| 13 | 01010-51440 | BOLT | 12001- | |
| 14 | 01643-31445 | WASHER | 12001- | |
| 15 | 01580-11411 | NUT | 12001- | |
| 16 | 417-Z92-1360 | PLATE | 12001- | |
| 17 | 01010-51435 | BOLT | 12001- | |
| 18 | 01643-31445 | WASHER | 12001- | |
| 19 | 01580-11411 | NUT | 12001- |
