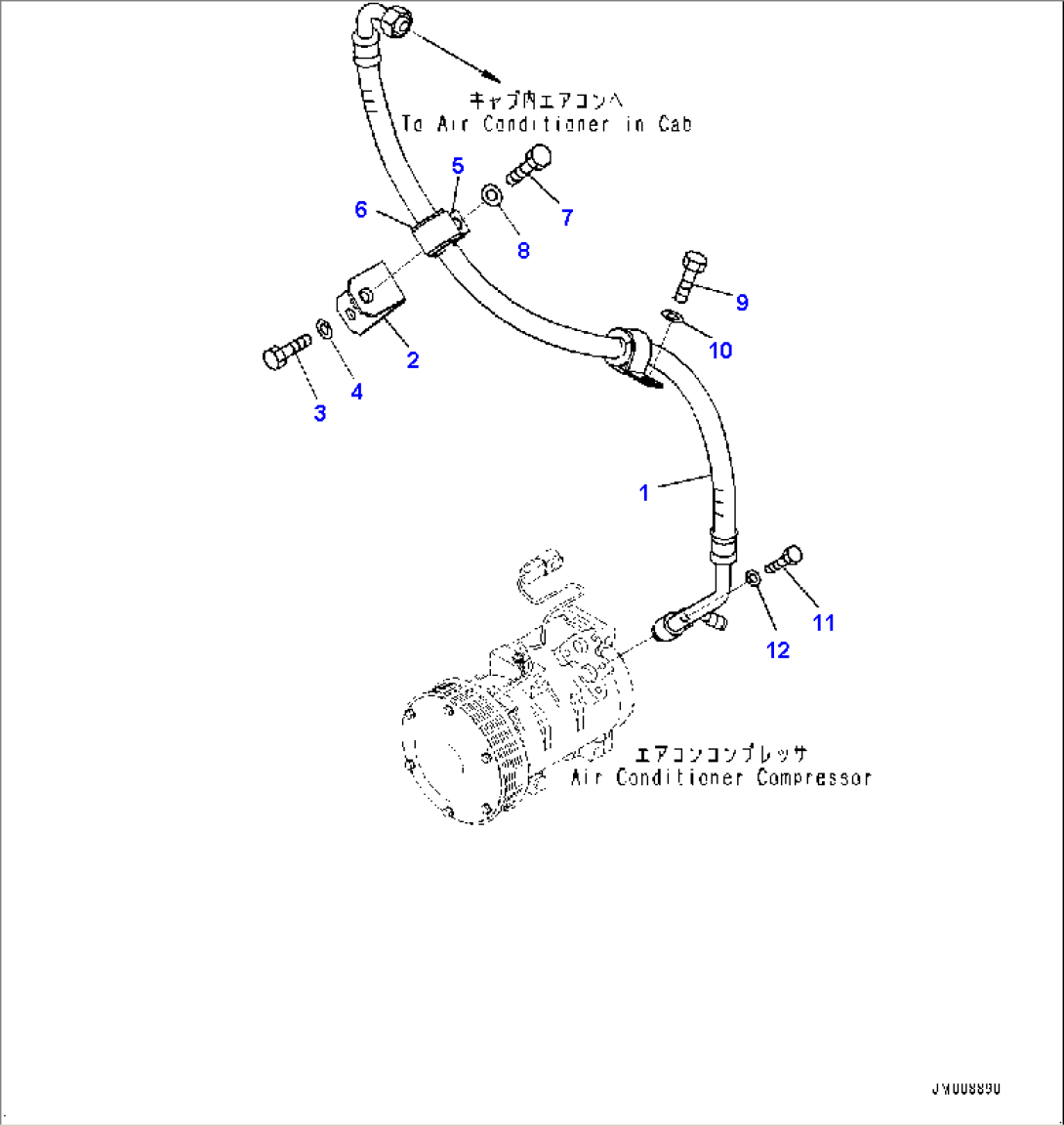

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-07-8L371 | Hose | 50001- | |
| 2 | 566-07-8L380 | Bracket | 50001- | |
| 3 | 01010-81035 | Bolt | 50001- | |
| 4 | 01643-31032 | Washer | 50001- | |
| 5 | 04434-53412 | Clip | 50001- | |
| 6 | 07095-20522 | Cushion | 50001- | |
| 7 | 01010-81225 | Bolt | 50001- | |
| 8 | 01643-31232 | Washer | 50001- | |
| 9 | 01010-81230 | Bolt | 50001- | |
| 10 | 01643-31232 | Washer | 50001- | |
| 11 | 01010-80630 | Bolt | 50001- | |
| 12 | 01643-30623 | Washer | 50001- |
