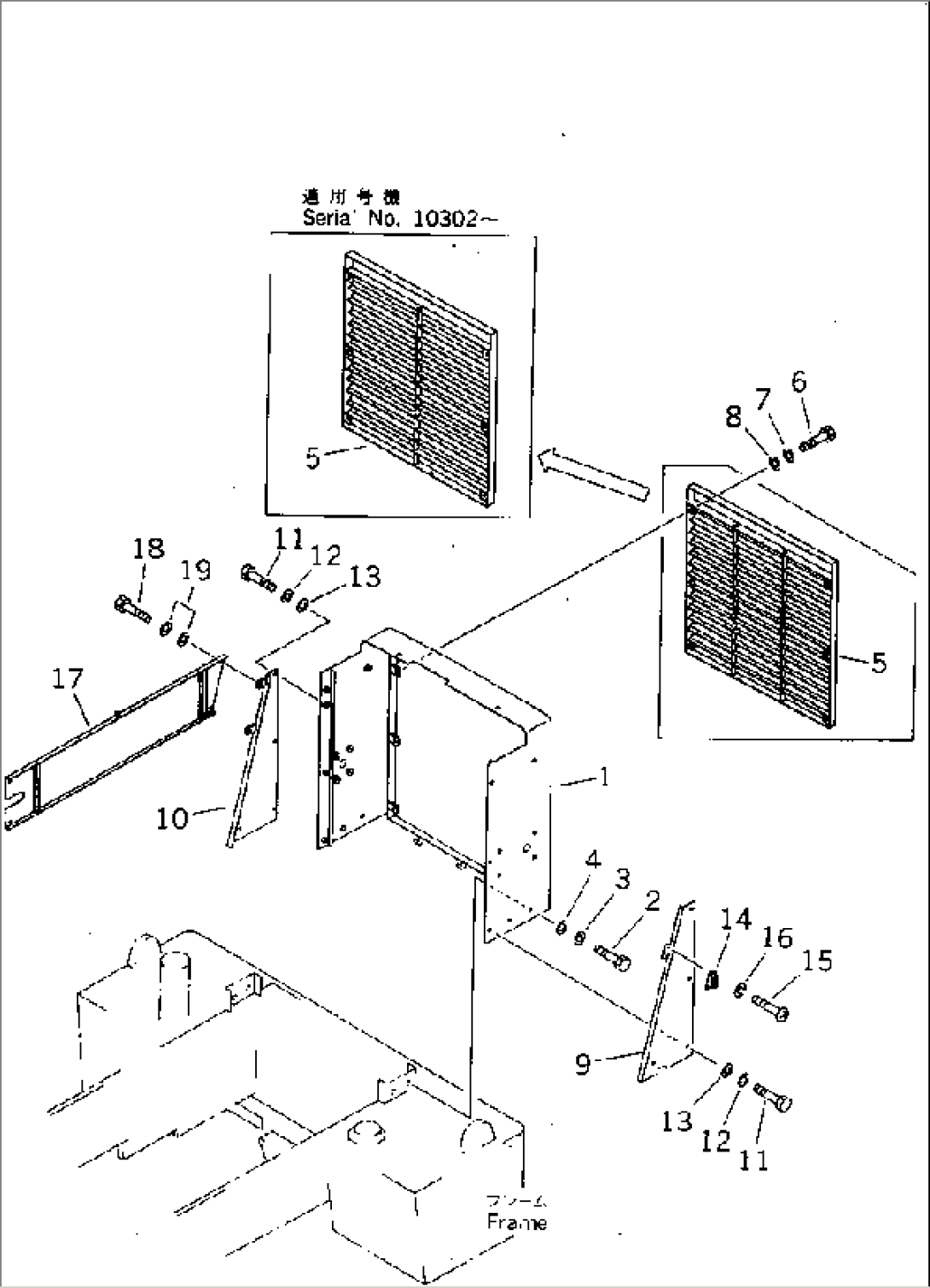

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-54-12141 | GRILLE | 10011- | |
| 2 | 01010-51025 | BOLT | 10011- | |
| 3 | 01643-31032 | WASHER | 10011- | |
| 4 | 01643-31032 | WASHER | 10011- | |
| 5 | 273-54-12612 | PANEL | 10302- | |
| 273-54-12611 | PANEL | 10011-10301 | ||
| 6 | 01010-51225 | BOLT | 10011- | |
| 7 | 01643-31232 | WASHER | 10011- | |
| 8 | 01643-31232 | WASHER | 10011- | |
| 9 | 273-54-12621 | PANEL,SIDE | 10011- | |
| 10 | 273-54-12631 | PANEL,SIDE | 10011- | |
| 11 | 01010-51020 | BOLT | 10011- | |
| 12 | 01643-31032 | WASHER | 10011- | |
| 13 | 01643-31032 | WASHER | 10011- | |
| 14 | 273-54-12670 | CATCHER | 10011- | |
| 15 | 01235-40310 | SCREW | 10011- | |
| 16 | 01601-20301 | WASHER,SPRING | 10011- | |
| 17 | 273-54-12320 | PANEL,R.H. | 10011- | |
| 18 | 01010-51020 | BOLT | 10011- | |
| 19 | 01643-31032 | WASHER | 10011- |
