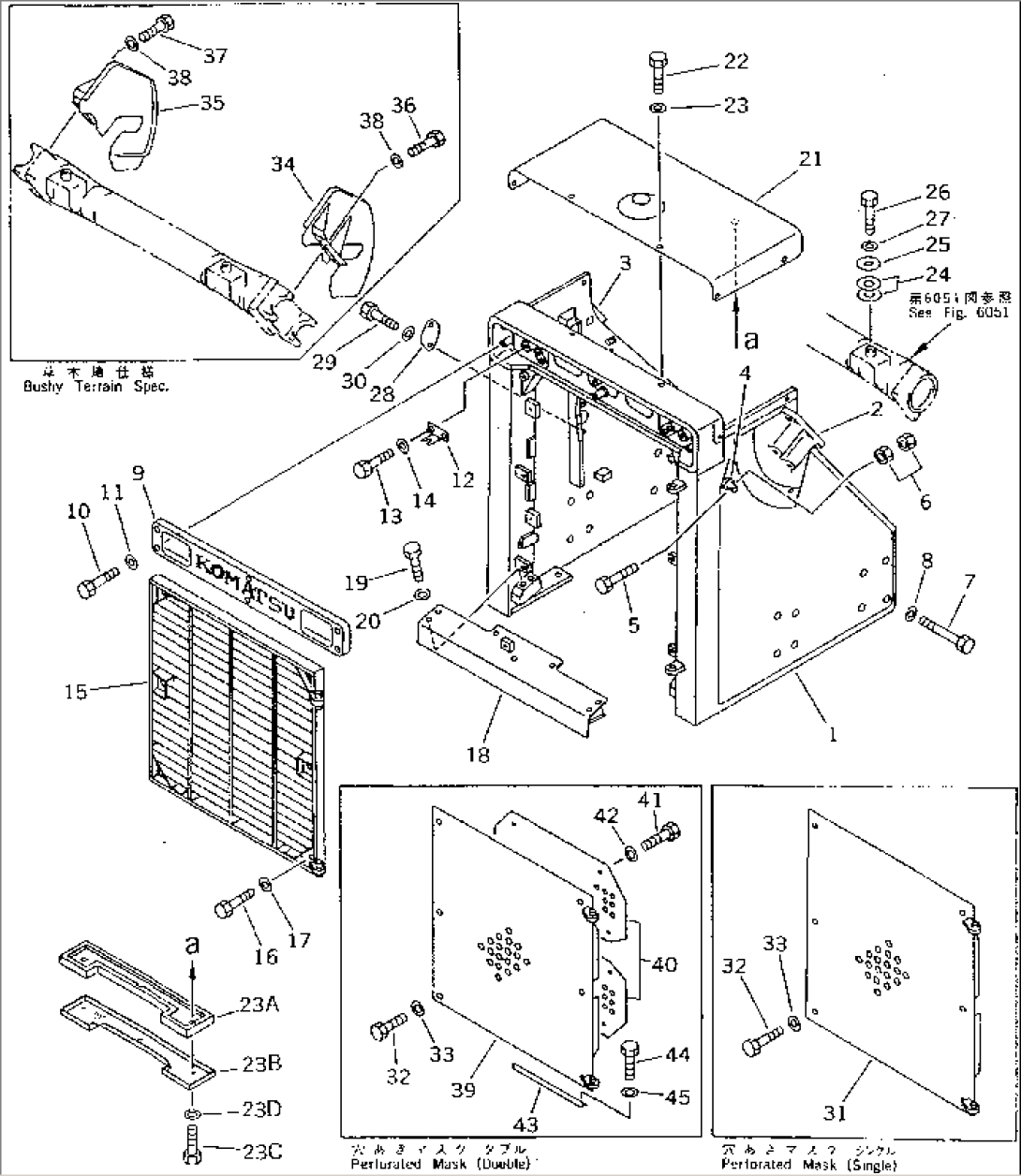

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 15A-862-1580 | GUARD,RADIATOR | 10301- | |
| 2 | 15A-54-11190 | SUPPORT,L.H. (WELDED) | 10301- | |
| 3 | 175-54-21133 | SUPPORT,R.H. (WELDED) | 10301- | |
| 4 | 154-54-12362 | PIN (WELDED) | 10301- | |
| 5 | 01010-50835 | BOLT | 10301- | |
| 6 | 01580-10806 | NUT | 10301- | |
| 7 | 01019-33050 | BOLT | 10301- | |
| 8 | 01643-33080 | WASHER | 10301- | |
| 9 | 154-54-41412 | MARK,(NEW LOGO) | 10525- | |
| 9 | 154-54-41410 | MARK | 10301-10524 | |
| 10 | 195-54-43260 | BOLT | 10301- | |
| 11 | 198-911-3160 | WASHER | 10301- | |
| 12 | 154-54-41440 | BRACKET | 10301- | |
| 13 | 01010-51230 | BOLT | 10301- | |
| 14 | 01643-31232 | WASHER | 10301- | |
| 15 | 154-54-45221 | MASK | 10301- | |
| 16 | 198-54-42260 | BOLT | 10301- | |
| 17 | 198-54-42290 | WASHER | 10301- | |
| 18 | 15A-862-1590 | SUPPORT | 10301- | |
| 19 | 01010-51640 | BOLT | 10301- | |
| 20 | 01643-31645 | WASHER | 10301- | |
| 21 | 15A-862-1360 | COVER | 10301- | |
| 22 | 01010-51225 | BOLT | 10301- | |
| 23 | 01643-31232 | WASHER | 10301- | |
| 23A | 15A-862-1380 | FELT | 10301- | |
| 23B | 15A-862-1370 | NET | 10301- | |
| 23C | 01010-51025 | BOLT | 10301- | |
| 23D | 175-54-34170 | WASHER | 10301- | |
| 24 | 195-54-46180 | PLATE | 10301- | |
| 25 | 195-54-42680 | PLATE | 10301- | |
| 26 | 01010-51635 | BOLT | 10301- | |
| 27 | 01643-31645 | WASHER | 10301- | |
| 28 | 195-54-26140 | PLATE | 10301- | |
| 29 | 01010-51020 | BOLT | 10301- | |
| 30 | 01643-31032 | WASHER | 10301- | |
| G-1 | (\8\154-54-X3601) | PERFORATED MASK G.,(SINGLE) | 10301- | |
| ==================== | ||||
| 31 | 154-54-42241 | MASK | 10301- | |
| 32 | 01010-51670 | BOLT | 10301- | |
| 33 | 01643-31645 | WASHER | 10301- | |
| 33 | 198-54-42290 | WASHER | 10301- | |
| ==================== | ||||
| G-2 | (\8\15A-54-X1200) | STAY COVER GROUP | 10301- | |
| ==================== | ||||
| 34 | 15A-54-11230 | COVER,L.H. | 10301- | |
| 35 | 15A-54-11240 | COVER,R.H. | 10301- | |
| 36 | 01010-51240 | BOLT | 10301- | |
| 37 | 01010-51240 | BOLT | 10301- | |
| 38 | 01643-31232 | WASHER | 10301- | |
| ==================== | ||||
| G-3 | (\8\154-54-X4101) | MASK GROUP,(DOUBLE) | 10301- | |
| ==================== | ||||
| 39 | 154-54-46571 | MASK | 10301- | |
| 40 | 154-54-46551 | MASK | 10301- | |
| 41 | 01010-51225 | BOLT | 10301- | |
| 42 | 01643-31232 | WASHER | 10301- | |
| 43 | 154-54-46560 | ANGLE | 10301- | |
| 44 | 01010-51025 | BOLT | 10301- | |
| 45 | 01643-31032 | WASHER | 10301- | |
| ==================== |
