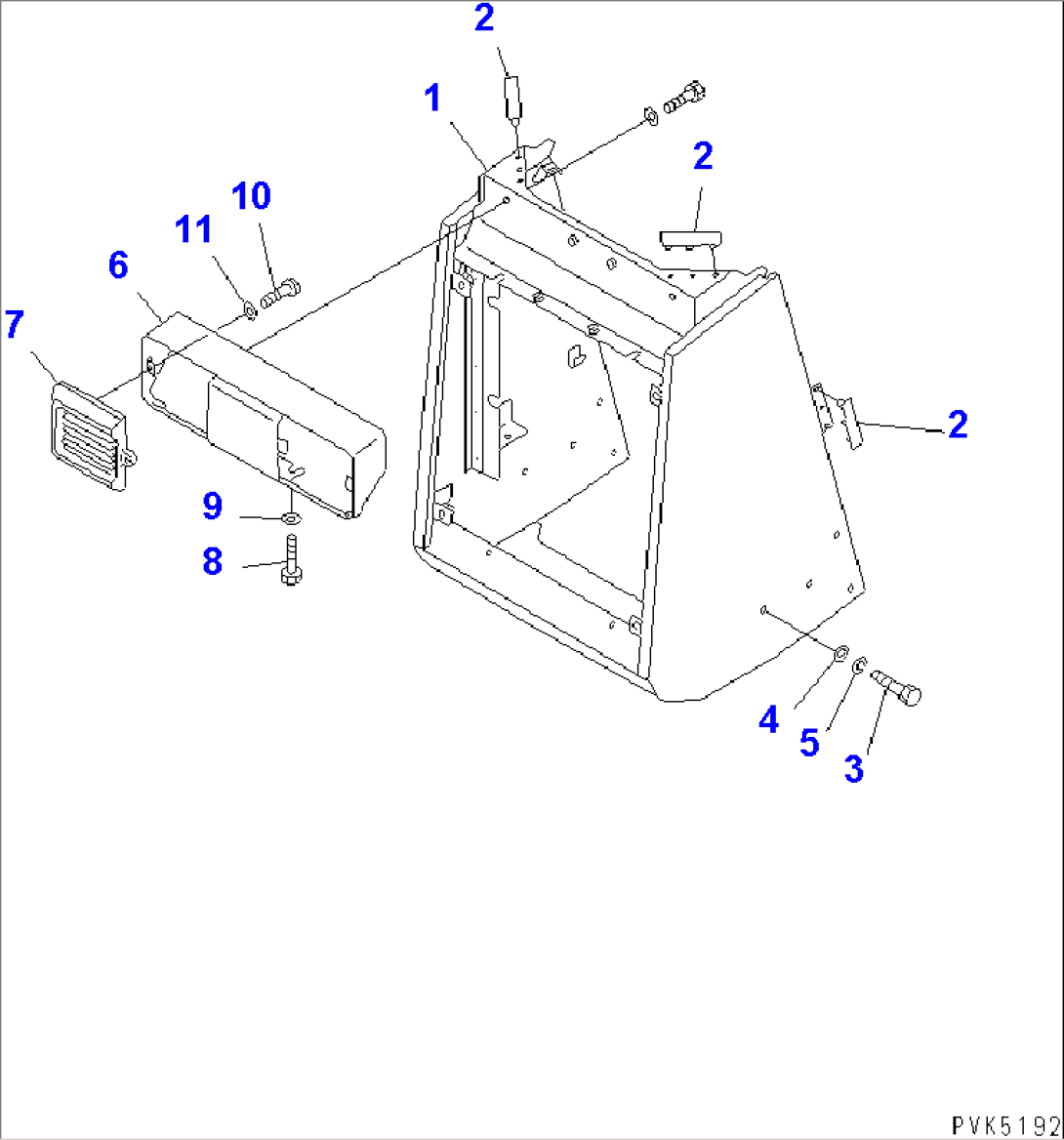

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-54-51241 | GUARD | 83098- | |
| 1 | 104-54-51240 | GUARD,RADIATOR | 83001-83097 | |
| 2 | 114-54-41250 | SHEET | 83001- | |
| 3 | 01010-81230 | BOLT | 83001- | |
| 4 | 01643-31232 | WASHER | 83001- | |
| 5 | 01602-21236 | WASHER | 83001- | |
| 6 | 104-54-31271 | COVER | 83001- | |
| 7 | 104-54-44350 | COVER | 83001- | |
| 8 | 01010-81020 | BOLT | 83001- | |
| 9 | 01643-31032 | WASHER | 83001- | |
| 10 | 01220-40616 | SCREW | 83001- | |
| 11 | 01643-30623 | WASHER | 83001- |
