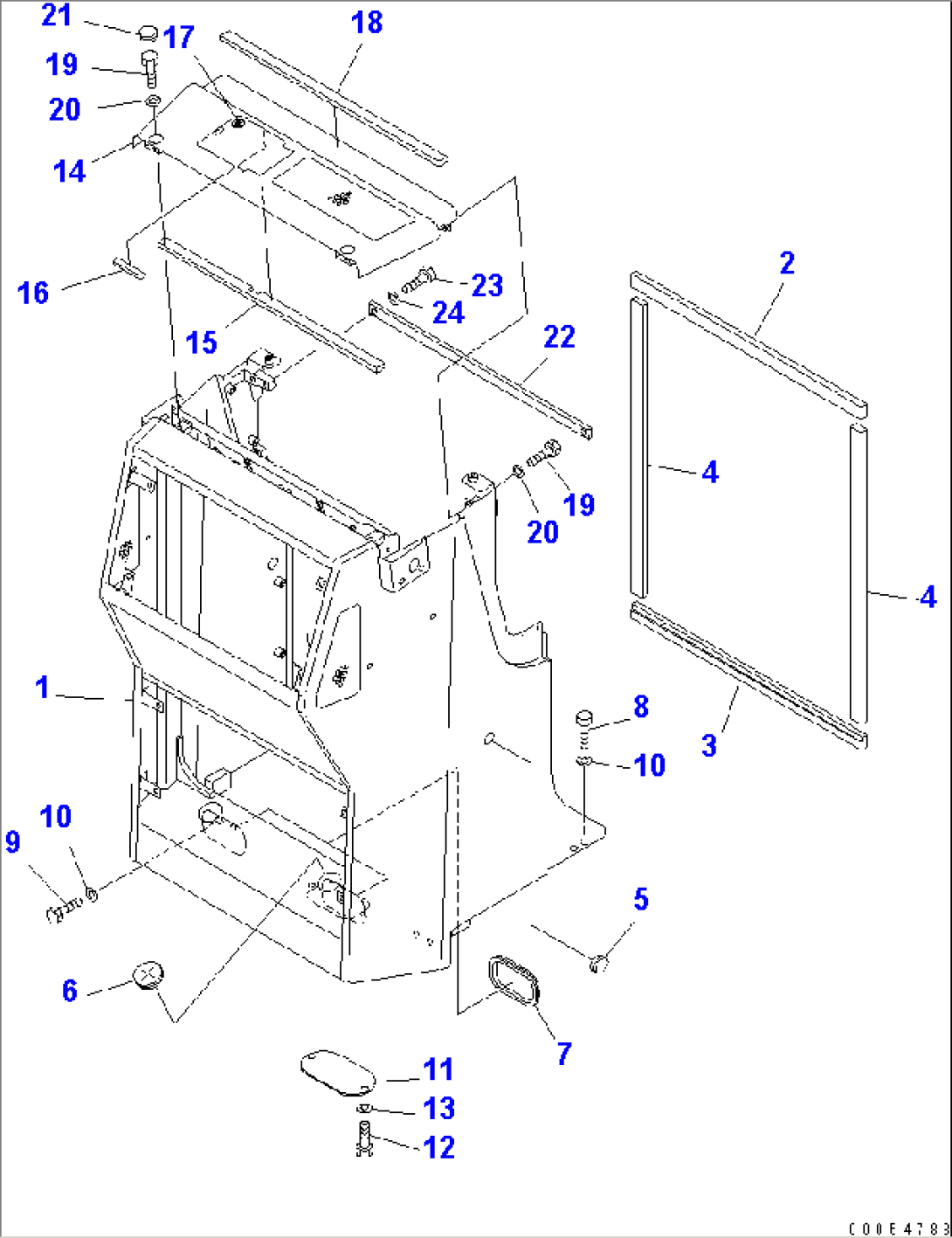

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-54-61117 | GUARD ASS'Y | 1171- | |
| 1 | 134-54-61116 | GUARD | 1166-1170 | |
| 1 | 134-54-61114 | GUARD ASS'Y | 1001-1165 | |
| 2 | 134-54-61160 | SHEET | 1001- | |
| 3 | 134-54-61370 | SHEET | 1001- | |
| 4 | 134-54-61170 | SHEET | 1001- | |
| 5 | 09415-02512 | CAP | 1001- | |
| 6 | 175-06-39660 | GROMMET | 1001- | |
| 7 | 20N-62-21250 | GROMMET | 1001- | |
| 8 | 01010-81675 | BOLT | 1001- | |
| 9 | 01010-81655 | BOLT | 1001- | |
| 10 | 01643-31645 | WASHER | 1001- | |
| 11 | 134-54-61140 | PLATE | 1001- | |
| 12 | 01010-81225 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 134-54-61152 | COVER | 1171- | |
| 14 | 134-54-61151 | COVER | 1001-1170 | |
| 15 | 134-54-61191 | SHEET | 1001- | |
| 16 | 134-54-61350 | SEAL | 1001- | |
| 17 | 205-60-71220 | LOCK ASS'Y | 1001- | |
| 18 | 134-54-61180 | SHEET | 1001- | |
| 19 | 01010-81225 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 09415-02512 | CAP | 1001- | |
| 22 | 134-54-61120 | PLATE | 1001- | |
| 23 | 01010-81235 | BOLT | 1001- | |
| 24 | 01643-31232 | WASHER | 1001- |
