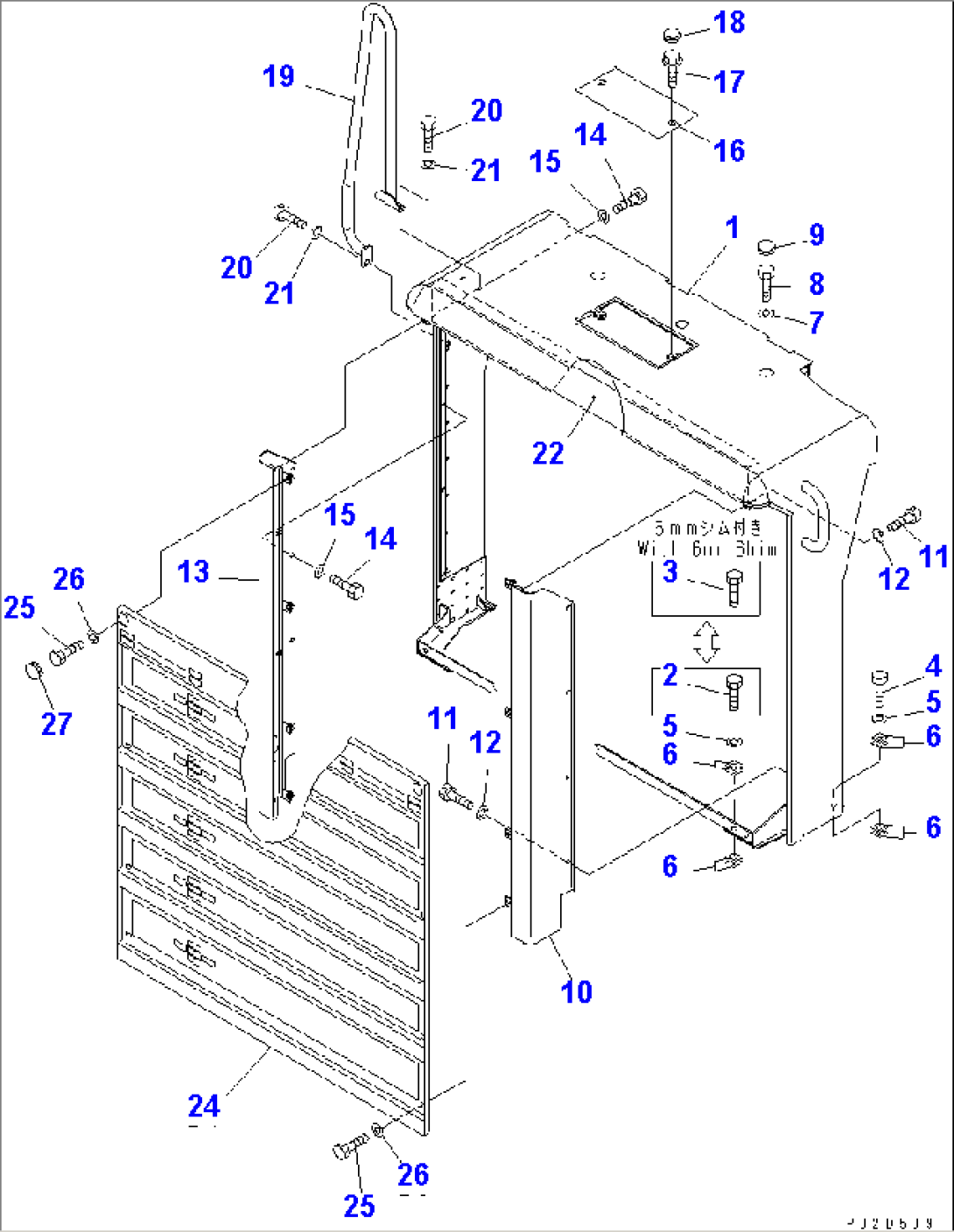

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-81111 | GUARD | 7001- | |
| 2 | 01010-81640 | BOLT | 7001- | |
| 3 | 01010-81645 | BOLT | 7001- | |
| 4 | 01010-81665 | BOLT | 7001- | |
| 5 | 01643-31645 | WASHER | 7001- | |
| 6 | 195-03-11570 | SHIM¤ 1.0MM | 7001- | |
| 7 | 01643-31232 | WASHER | 7001- | |
| 8 | 01010-81225 | BOLT | 7001- | |
| 9 | 09415-03614 | CAP | 7001- | |
| 10 | 569-54-81131 | COVER | 7001- | |
| 11 | 01010-81220 | BOLT | 7001- | |
| 12 | 01643-31232 | WASHER | 7001- | |
| 13 | 569-54-81141 | COVER | 7001- | |
| 14 | 01010-81220 | BOLT | 7001- | |
| 15 | 01643-31232 | WASHER | 7001- | |
| 16 | 569-54-81150 | COVER | 7001- | |
| 17 | 01435-01020 | BOLT | 7001- | |
| 18 | 09415-02512 | CAP | 7001- | |
| 19 | 569-54-81350 | PIPE | 7001- | |
| 20 | 01010-81230 | BOLT | 7001- | |
| 21 | 01643-31232 | WASHER | 7001- | |
| 22 | 569-03-81850 | SEAL | 7001- | |
| 24 | 569-54-81121 | GRILLE | 7001- | |
| 25 | 01010-81230 | BOLT | 7001- | |
| 26 | 01643-31232 | WASHER | 7001- | |
| 27 | 09415-03614 | CAP | 7001- |
