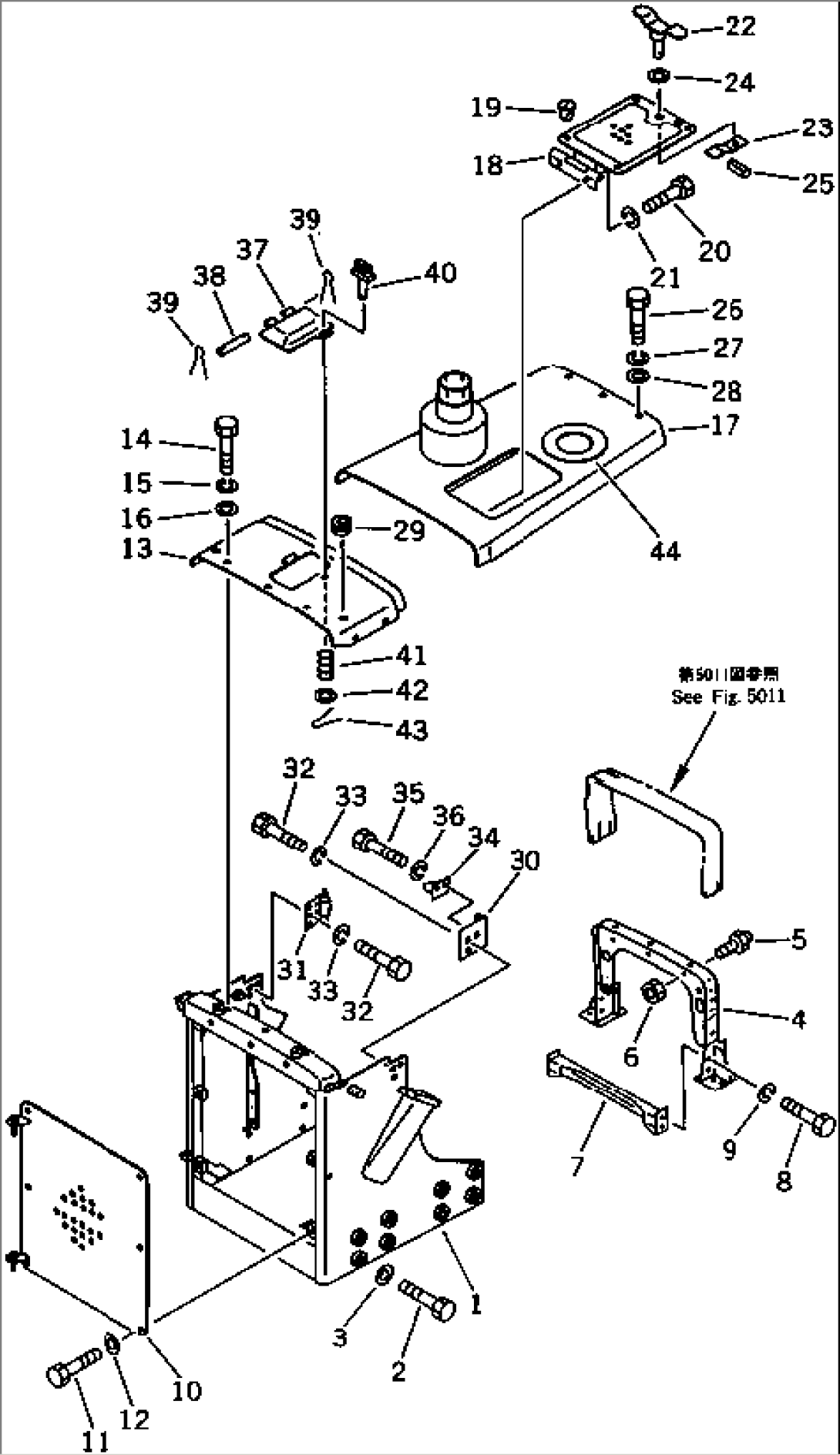

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-54-61112 | GUARD,RADIATOR | 50001- | |
| 2 | 01019-32015 | BOLT | 50001- | |
| 3 | 01643-32060 | WASHER | 50001- | |
| 4 | 144-54-24211 | FRAME | 50001- | |
| 5 | 120-43-39361 | DAMPER | 50001- | |
| 6 | 01580-11008 | NUT | 50001- | |
| 7 | 144-54-51220 | FRAME | 50001- | |
| 8 | 01010-51440 | BOLT | 50001- | |
| 9 | 01602-21442 | WASHER,SPRING | 50001- | |
| 10 | 144-54-11922 | GRILLE,RADIATOR | 50001- | |
| 11 | 01010-51635 | BOLT | 50001- | |
| 12 | 01643-31645 | WASHER | 50001- | |
| 13 | 144-54-51121 | COVER | 50001- | |
| 14 | 01010-51225 | BOLT | 50001- | |
| 15 | 01602-21236 | WASHER,SPRING | 50001- | |
| 16 | 01643-31232 | WASHER | 50001- | |
| 17 | 144-54-61120 | HOOD | 50001- | |
| 18 | 144-851-1750 | COVER | 50001- | |
| 19 | 07049-01215 | PLUG | 50001- | |
| 20 | 01010-51020 | BOLT | 50001- | |
| 21 | 01602-21030 | WASHER,SPRING | 50001- | |
| 22 | 135-54-31290 | HANDLE | 50001- | |
| 23 | 135-54-31310 | STOPPER | 50001- | |
| 24 | 01643-31032 | WASHER | 50001- | |
| 25 | 04025-00316 | PIN,SPRING | 50001- | |
| 26 | 01010-51235 | BOLT | 50001- | |
| 27 | 01602-21236 | WASHER,SPRING | 50001- | |
| 28 | 01643-31232 | WASHER | 50001- | |
| 29 | 08037-01610 | GROMMET | 50001- | |
| 30 | 144-54-51160 | CATCHER,L.H. | 50001- | |
| 31 | 144-54-51180 | CATCHER,R.H. | 50001- | |
| 32 | 01010-51220 | BOLT | 50001- | |
| 33 | 01602-21236 | WASHER,SPRING | 50001- | |
| 34 | 144-54-51210 | BRACKET | 50001- | |
| 35 | 01010-50820 | BOLT | 50001- | |
| 36 | 01602-20825 | WASHER,SPRING | 50001- | |
| 37 | 144-54-51140 | COVER | 50001- | |
| 38 | 131-54-11270 | PIN | 50001- | |
| 39 | 04050-11610 | PIN,COTTER | 50001- | |
| 40 | 09459-11033 | LOCK | 50001- | |
| 41 | 09459-01614 | SPRING | 50001- | |
| 42 | 01642-21016 | WASHER | 50001- | |
| 43 | 04050-13015 | PIN,COTTER | 50001- | |
| 44 | 144-851-1990 | RUBBER | 50001- |
