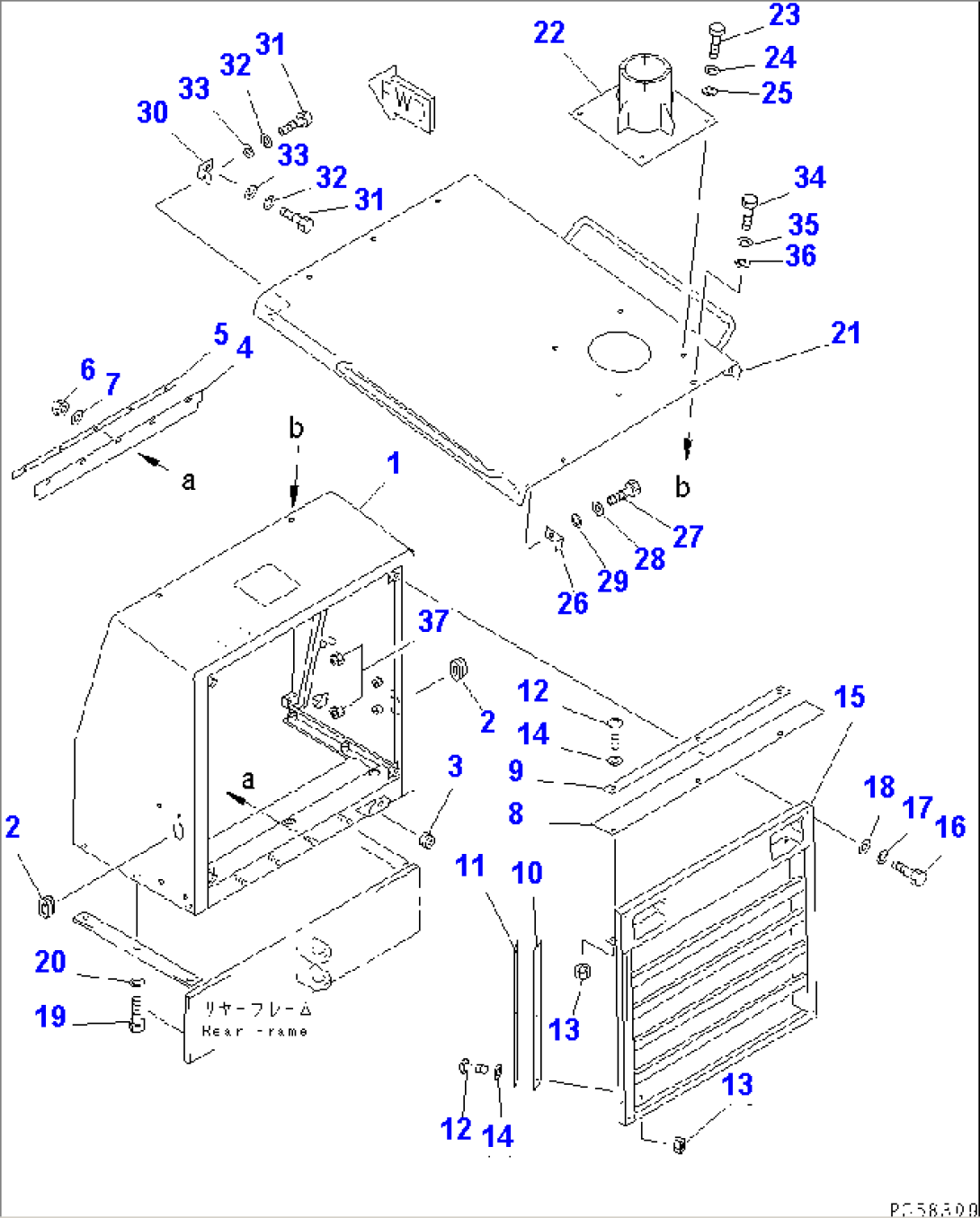

| Item | Part No. | Part Name | Qty | Serial No. |
| 23A-54-00050 | GRILLE ASS'Y | 1502-1700 | ||
| 23E-54-11150 | GRILLE,(MODIFIED PART) | 1502-1700 | ||
| 1 | 23A-54-24310 | GRILLE | 1502-1700 | |
| 01224-30616 | SCREW (WELDED) | 1502-1700 | ||
| 2 | 08037-03614 | GROMMET | 1001-@ | |
| 3 | 08037-01008 | GROMMET | 1502-@ | |
| 4 | 23D-54-21250 | PLATE,BAFFLE | 1502-1700 | |
| 5 | 23D-54-21260 | PLATE | 1502-1700 | |
| 6 | 01580-10605 | NUT | 1502-1700 | |
| 7 | 01643-30623 | WASHER | 1502-1700 | |
| 8 | 23B-54-16510 | PLATE,BAFFLE | 1106-@ | |
| 9 | 23B-54-15890 | PLATE | 1001-@ | |
| 10 | 23A-54-24320 | PLATE,BAFFLE | 1106-@ | |
| 11 | 23A-54-17540 | PLATE | 1001-@ | |
| 12 | 01220-40620 | SCREW | 1001-@ | |
| 13 | 01580-10605 | NUT | 1001-@ | |
| 14 | 01643-30623 | WASHER | 1001-@ | |
| 15 | 23A-54-17120 | COVER | 1001-1700 | |
| 16 | 01010-51025 | BOLT | 1001-1700 | |
| 17 | 01643-31032 | WASHER | 1001-@ | |
| 18 | 234-54-13252 | WASHER | 1001-@ | |
| 19 | 01010-51025 | BOLT | 1001-1700 | |
| 20 | 01643-31032 | WASHER | 1001-@ | |
| 21 | 23A-54-22110 | HOOD | 1047-1700 | |
| 22 | 23A-54-22120 | SUPPORT | 1047-@ | |
| 23 | 01010-51025 | BOLT | 1001-1700 | |
| 24 | 01643-31032 | WASHER | 1001-@ | |
| 25 | 232-43-58360 | WASHER | 1001-@ | |
| 26 | 23B-54-15590 | PLATE | 1001-@ | |
| 27 | 01010-51020 | BOLT | 1001-1700 | |
| 28 | 01643-31032 | WASHER | 1001-@ | |
| 29 | 234-54-13252 | WASHER | 1001-@ | |
| 30 | 23B-54-15910 | PLATE | 1001-@ | |
| 31 | 01010-51020 | BOLT | 1001-1700 | |
| 32 | 01643-31032 | WASHER | 1001-@ | |
| 33 | 234-54-13252 | WASHER | 1001-@ | |
| 34 | 01010-51025 | BOLT | 1001-1700 | |
| 35 | 01643-31032 | WASHER | 1001-@ | |
| 36 | 234-54-13252 | WASHER | 1001-@ | |
| 37 | 01580-11008 | NUT (WELDED) | 1001-@ |
