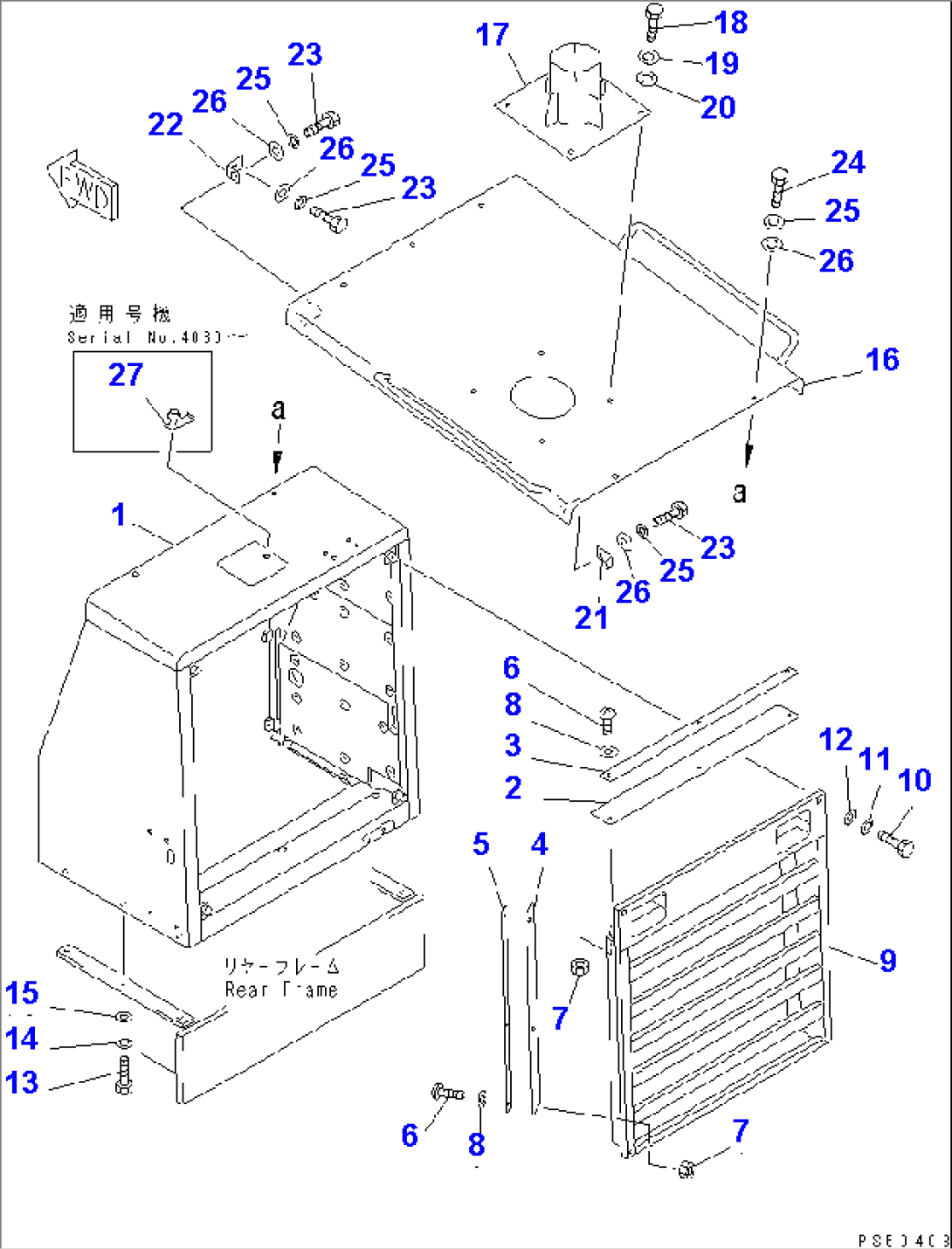

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-54-28110 | GRILLE | 4080-4500 | |
| 23B-54-16210 | GRILLE | 4001-4079 | ||
| 2 | 23B-54-28120 | PLATE,BAFFLE | 4080-@ | |
| 23B-54-15540 | PLATE,BAFFLE | 4001-4079 | ||
| 3 | 23B-54-15890 | PLATE | 4001-@ | |
| 4 | 23B-54-28130 | PLATE,BAFFLE | 4080-@ | |
| 23B-54-15340 | PLATE,BAFFLE | 4001-4079 | ||
| 5 | 23B-54-15880 | PLATE | 4001-@ | |
| 6 | 01220-40620 | SCREW | 4001-@ | |
| 7 | 01580-10605 | NUT | 4001-@ | |
| 8 | 01643-30623 | WASHER | 4001-@ | |
| 9 | 23B-54-15530 | COVER | 4001-@ | |
| 10 | 01010-51025 | BOLT | 4001-@ | |
| 11 | 01643-31032 | WASHER | 4001-@ | |
| 12 | 235-54-13252 | WASHER | 4001-@ | |
| 13 | 01010-51025 | BOLT | 4001-@ | |
| 14 | 01643-31032 | WASHER | 4001-4079 | |
| 15 | 01643-31032 | WASHER | 4001-@ | |
| 16 | 23B-54-16310 | HOOD | 4003-@ | |
| 23B-54-15570 | HOOD | 4001-4002 | ||
| 17 | 23B-54-15580 | SUPPORT | 4001-@ | |
| 18 | 01010-51025 | BOLT | 4001-@ | |
| 19 | 01643-31032 | WASHER | 4001-@ | |
| 20 | 232-43-58360 | WASHER | 4003-@ | |
| \0\234-54-13252 | WASHER | 4001-4002 | ||
| 21 | 23B-54-15590 | PLATE | 4001-@ | |
| 22 | 23B-54-15910 | PLATE | 4001-@ | |
| 23 | 01010-51020 | BOLT | 4001-@ | |
| 24 | 01010-51025 | BOLT | 4001-@ | |
| 25 | 01643-31032 | WASHER | 4001-@ | |
| 26 | 234-54-13252 | WASHER | 4001-@ | |
| 27 | 205-60-71220 | LOCK ASS'Y | 4080-@ |
